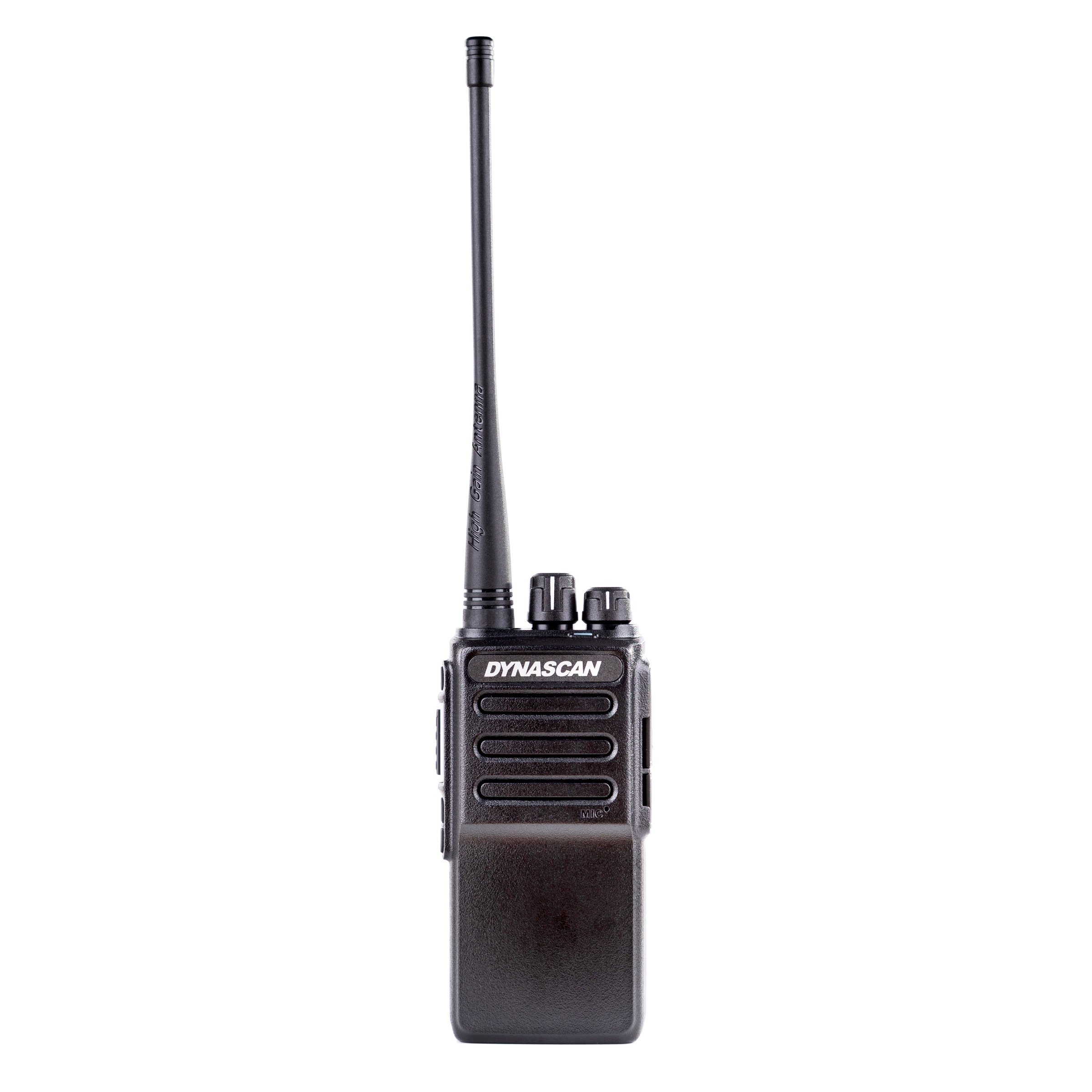

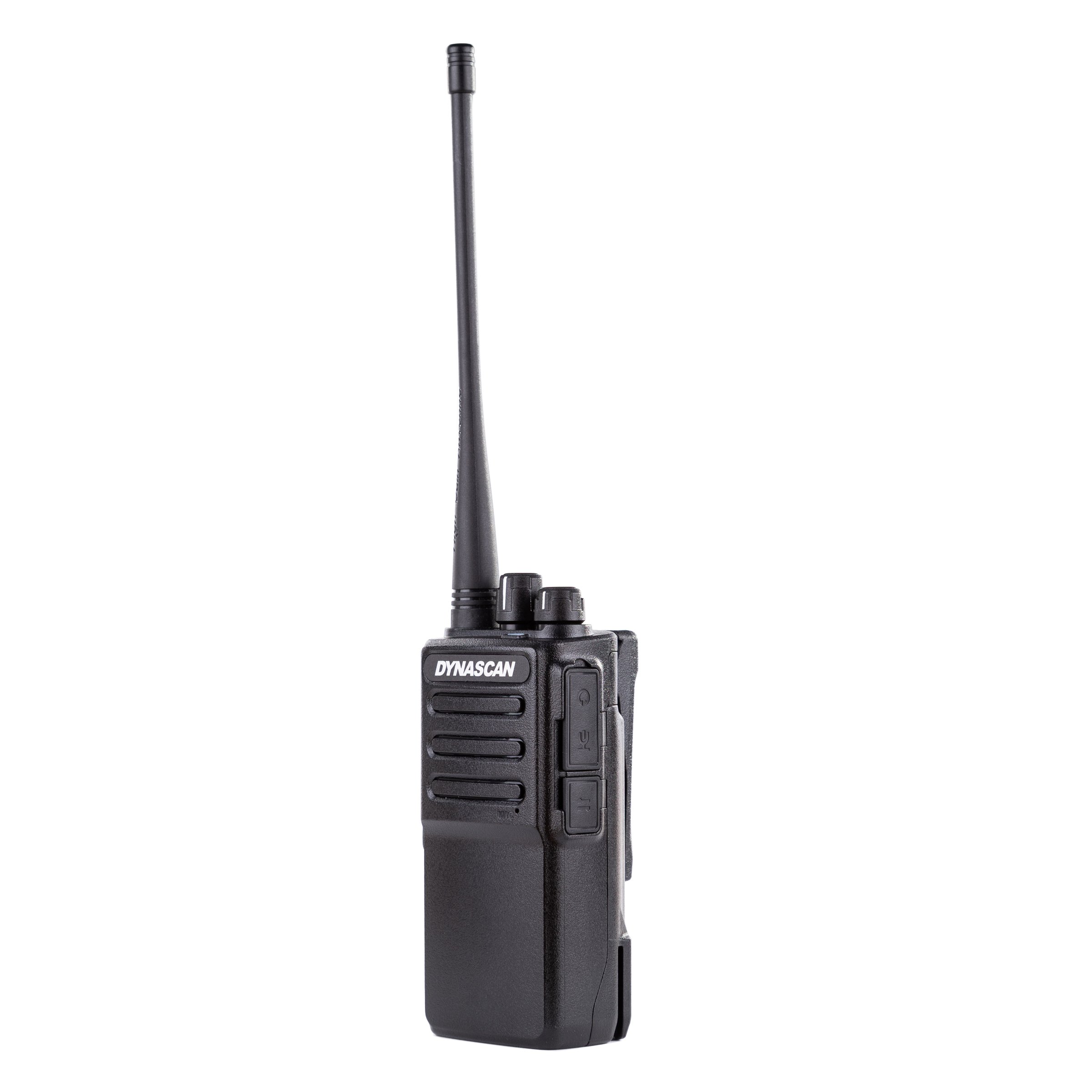

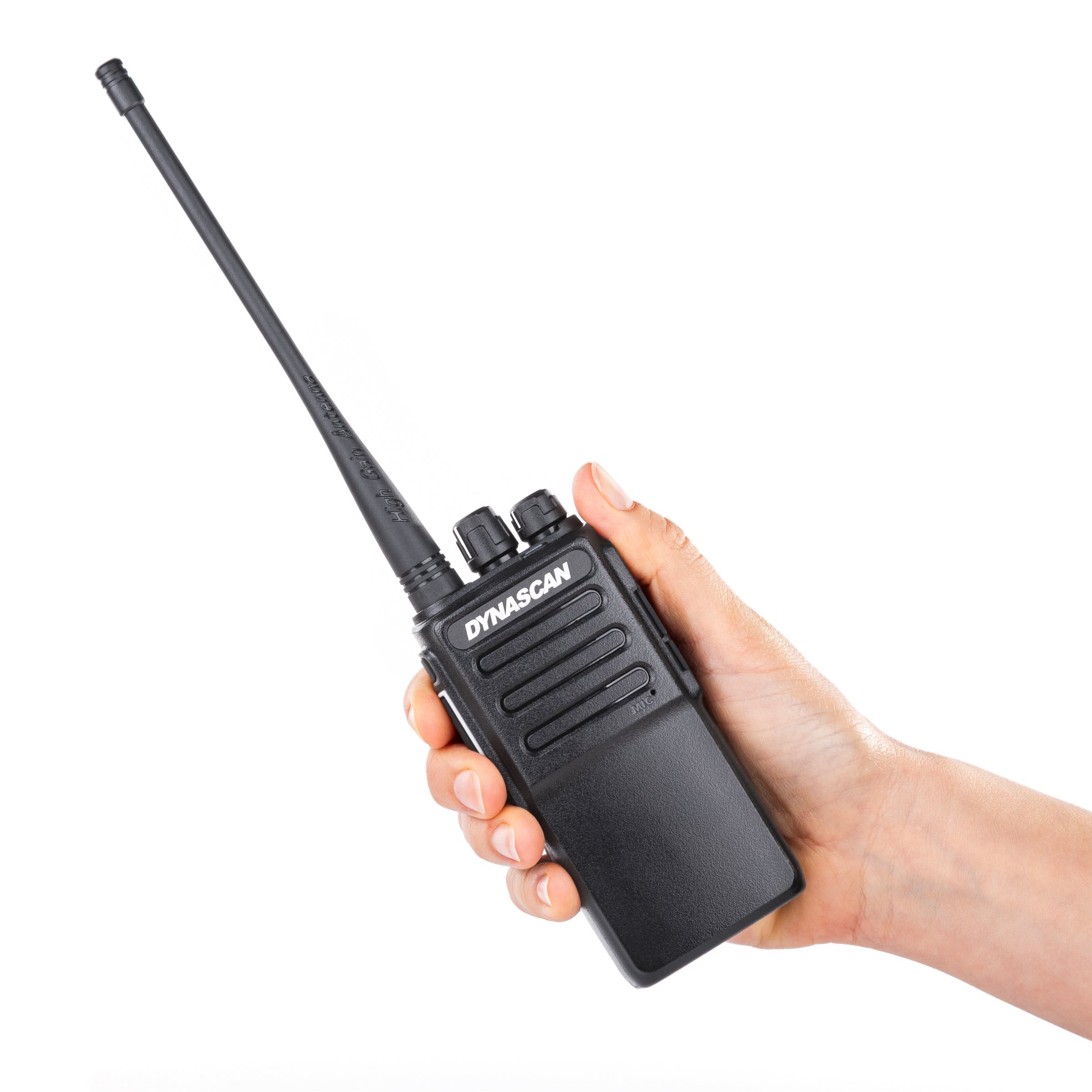

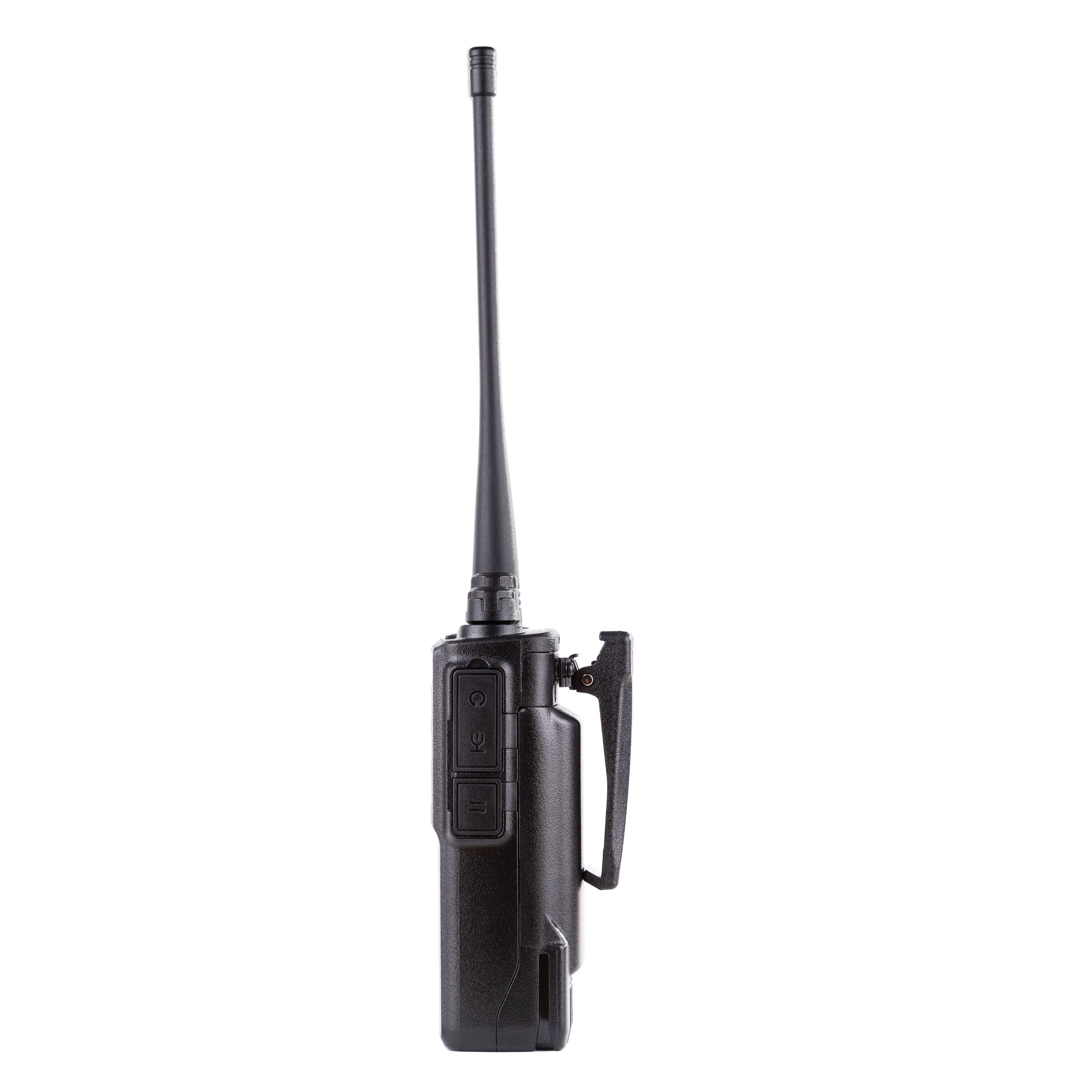

Dynascan 200BT VHF-FM professional walkie-talkie

Dynascan 200BT is a VHF portable transceiver that offers professional long-range communications thanks to its up to 10W of power and excellent penetration in open spaces. It incorporates Bluetooth®* for wireless communication, facilitating faster and more convenient work. It features 256 channels, a 2,600mAh battery, and noise cancellation for clear audio even in challenging environments. Ideal for security, logistics, event management, and outdoor operations.

TECHNICAL SPECIFICATIONS

General:

• Frequency Range:

• 136 – 174 MHz (VHF depending on the country of use)
• 2402 – 2480 MHz (Bluetooth)

• Number of Channels: 256 (16 groups of 16 channels)
• Channel Spacing: 25 kHz (wideband), 12.5 kHz (narrowband)
• Phase-Locked Step: 5 kHz, 6.25 kHz
• Power Supply 7.4 V/2600 mAh Lithium-Ion Battery.
• Frequency Stability: ±2.5 ppm.
• Operating Temperature: -20°C to +55°C.
• Dimensions: 59 x 128 x 42 mm (with 2,600 mAh battery).
• Weight: 250 g (with 2,600 mAh battery).

Receiver: Wideband / Narrowband

• Sensitivity (12 dB SINAD): ≤25 µV / ≤0.35 µV
• Adjacent Channel Selectivity: ≥70 dB / ≥60 dB
• Intermodulation: ≥60 dB / ≥60 dB
• Spurious Radiation Rejection: ≥65 dB / ≥65 dB
• Audio Response. +1~-3dB (0.3~3 kHz) / +1~-3dB (0.3~2.55 kHz)
• Noise and hum: ≥45 dB / ≥40 dB
• Audio distortion: ≤5% / ≤5%
• Audio output power: 1000 mW/10% / 1000 mW/10%

Transmitter: Wideband / Narrowband

• Maximum transmit power: 10 W (VHF) and 2.5 mW (Bluetooth)
• Modulation type: 16K0F3E / 11K0F3E
• Adjacent channel power: ≥70 dB / ≥60 dB
• Noise and hum: ≥45 dB / ≥40 dB
• Radiated emissions. ≤-36 dB / ≤-36 dB
• Audio Response: +1~-3dB (0.3~3 kHz) / +1~-3dB (0.3~2.55 kHz)
• Distortion: ≤5% / ≤5%

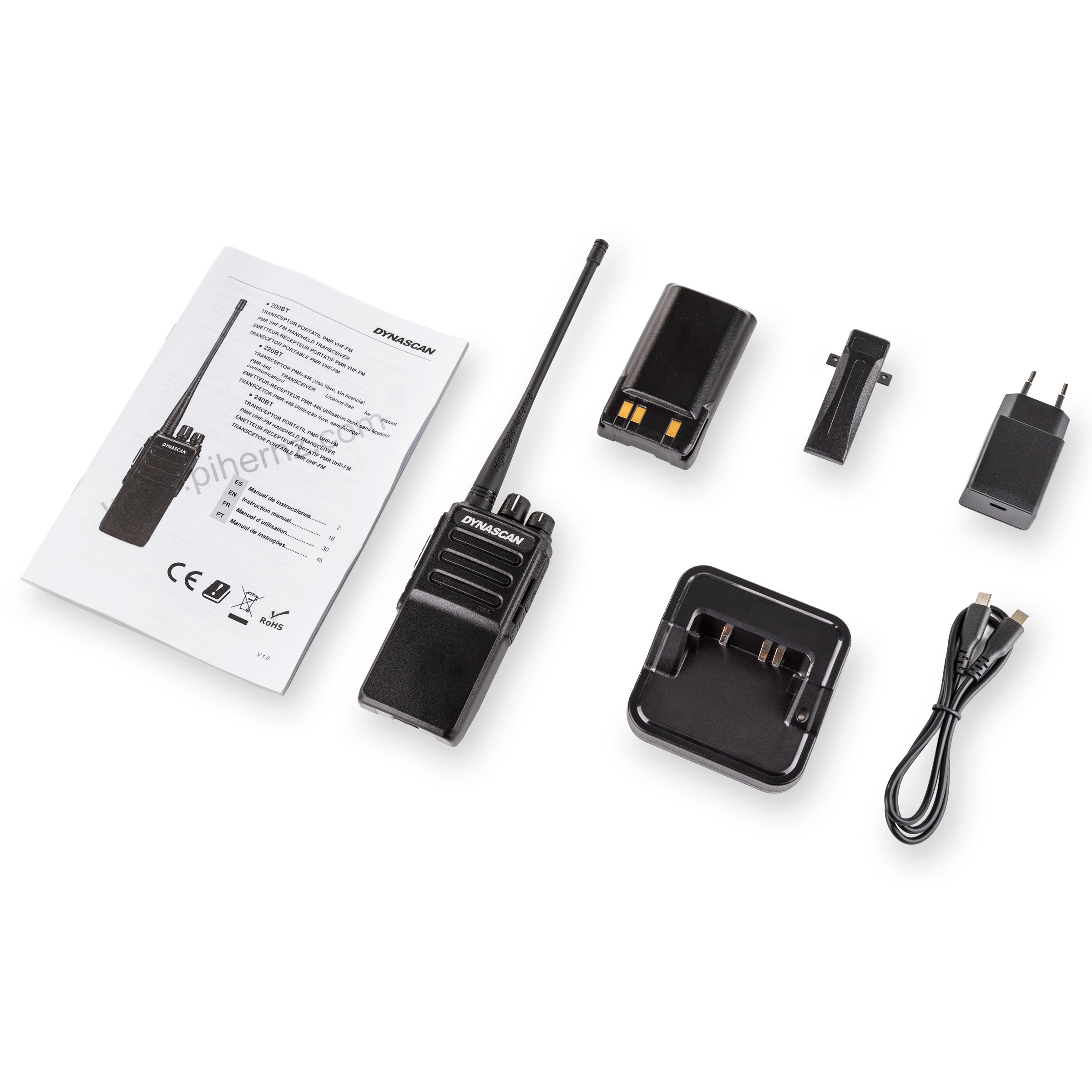

CONTENT

• Transceiver

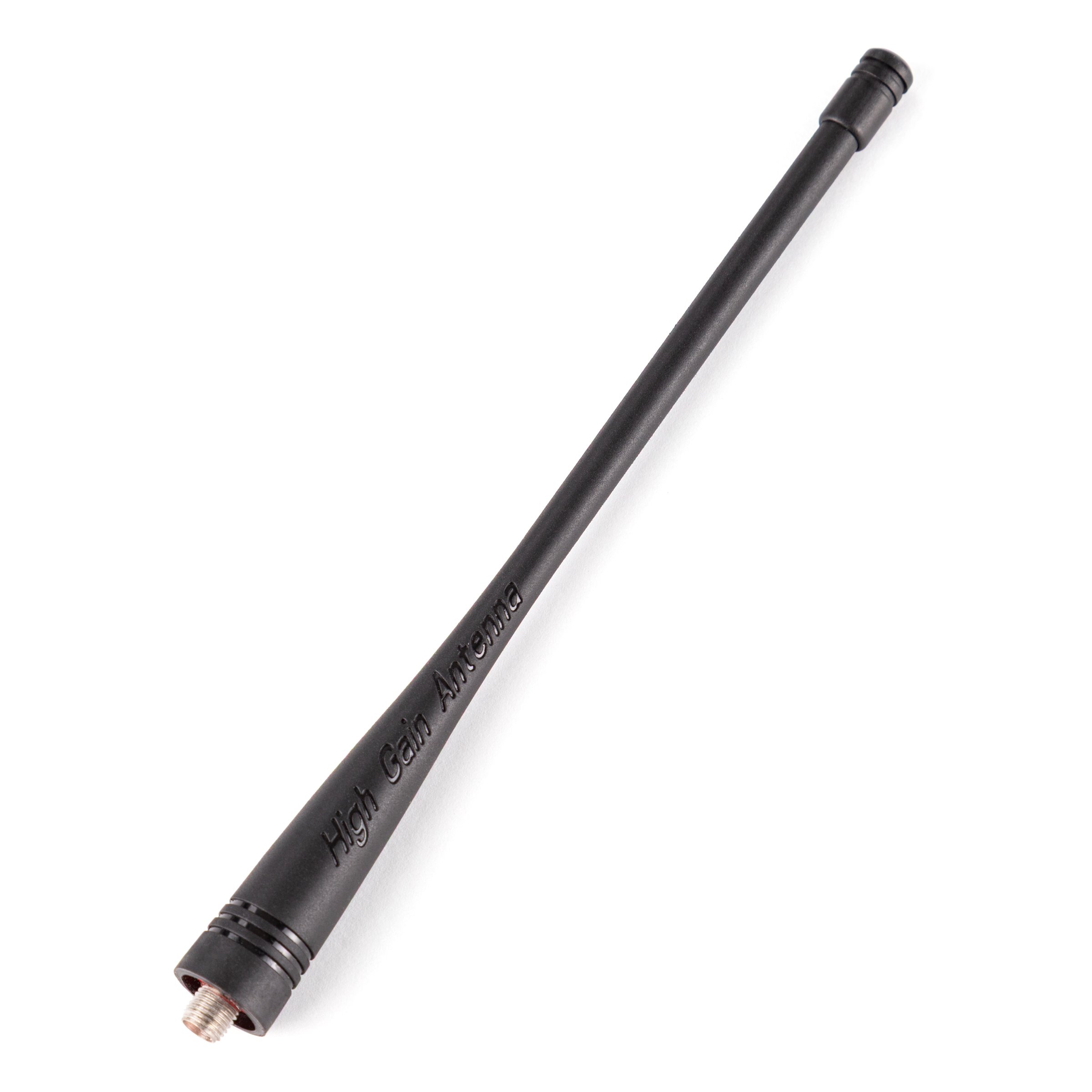

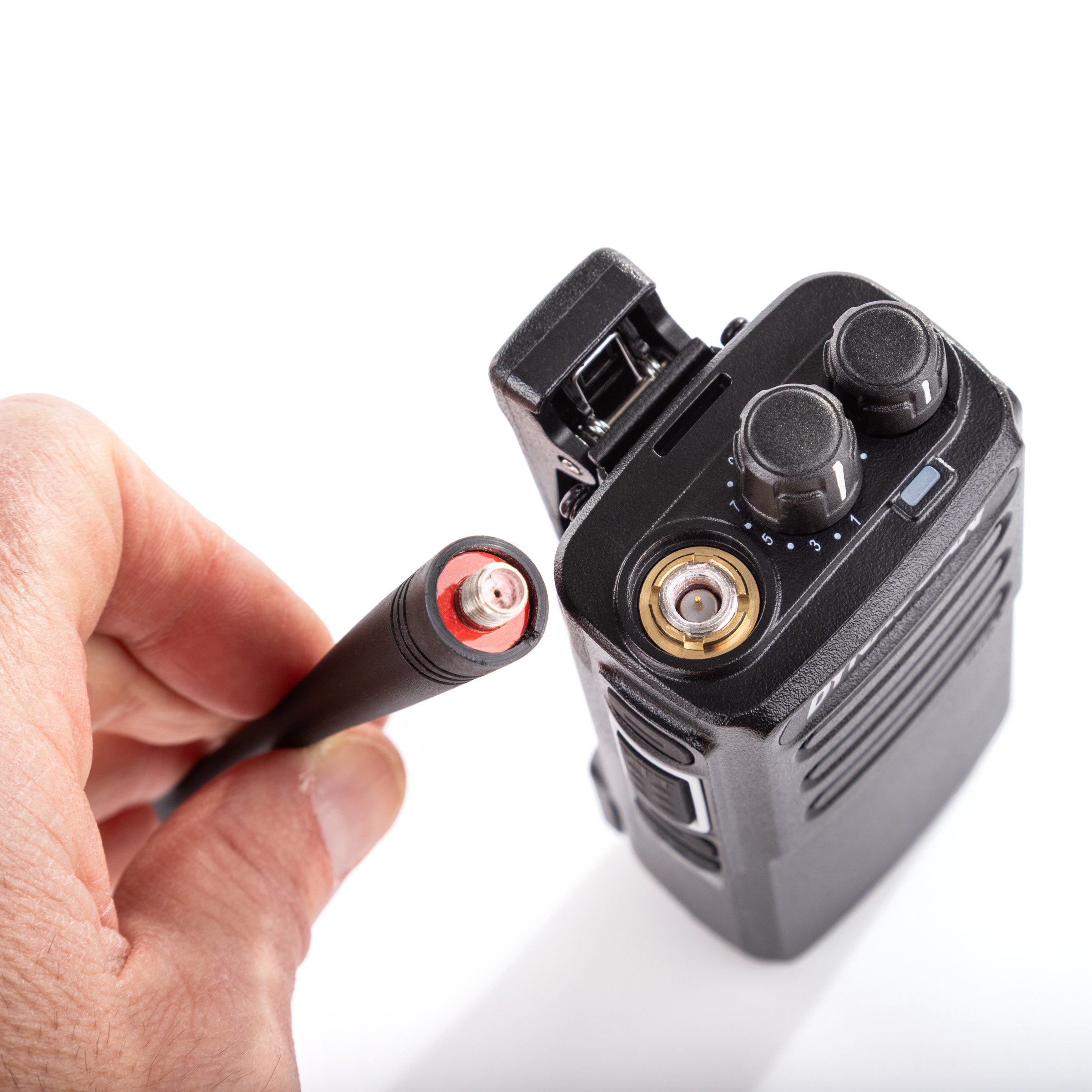

• Antenna

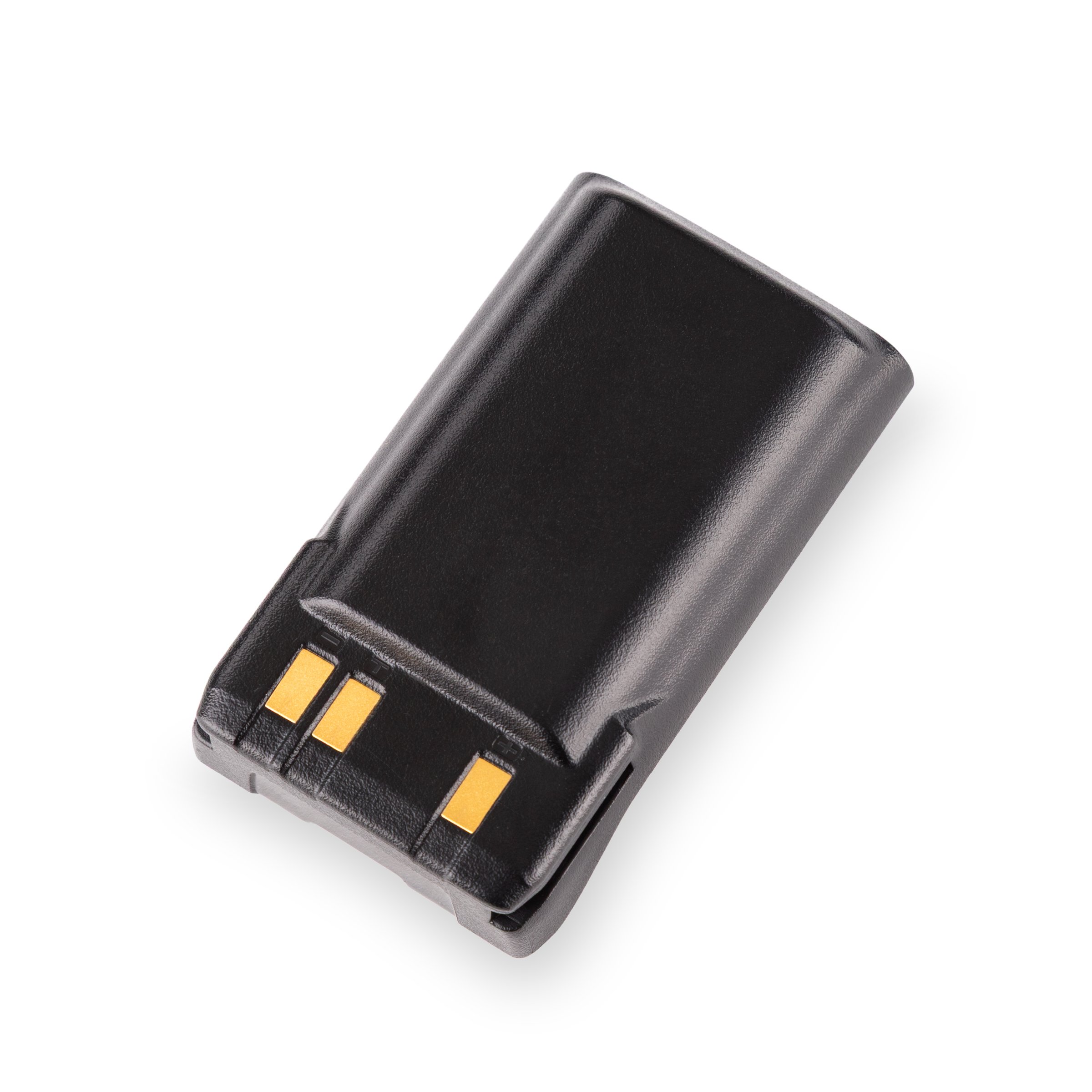

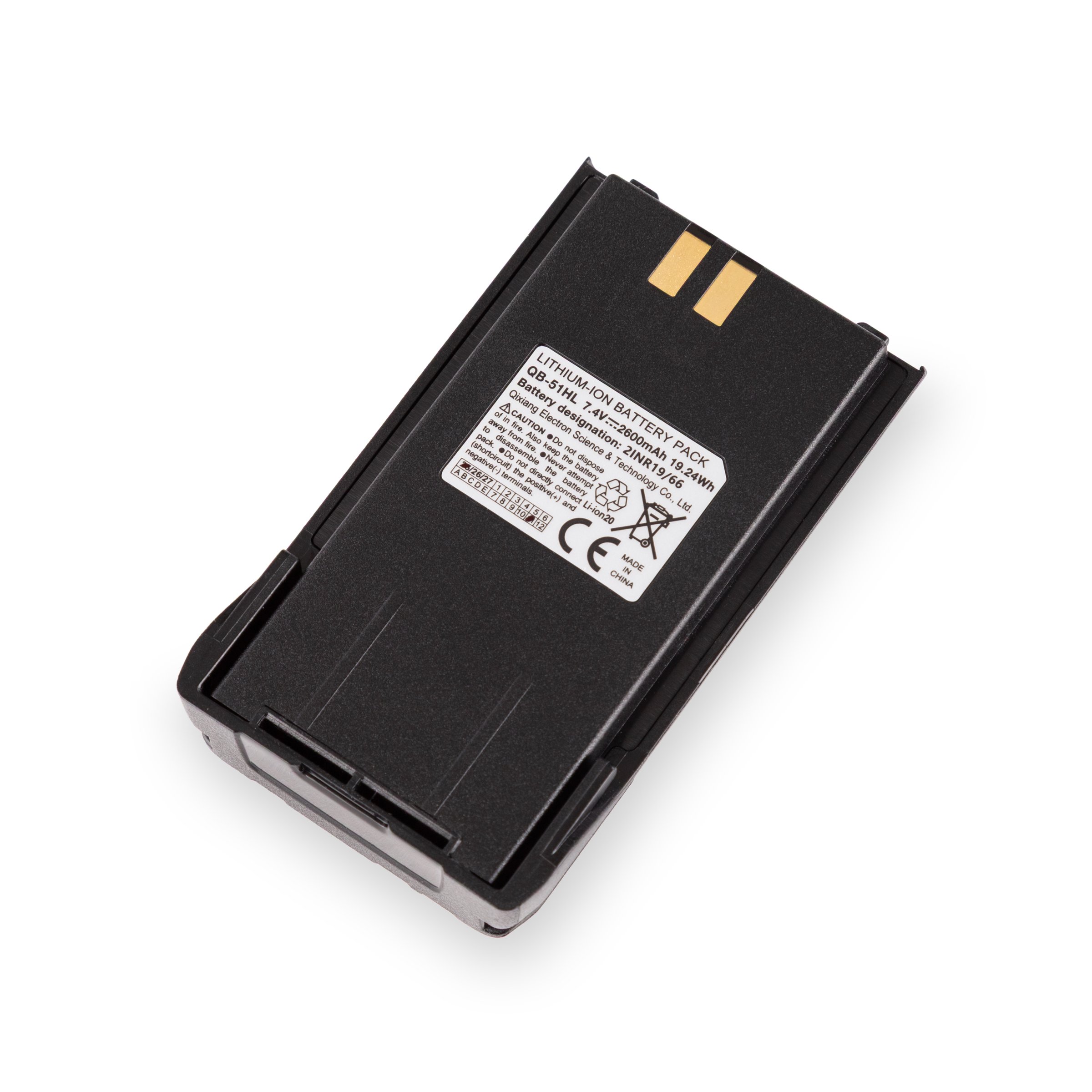

• 7.4V/2600mAh Lithium-Ion Battery

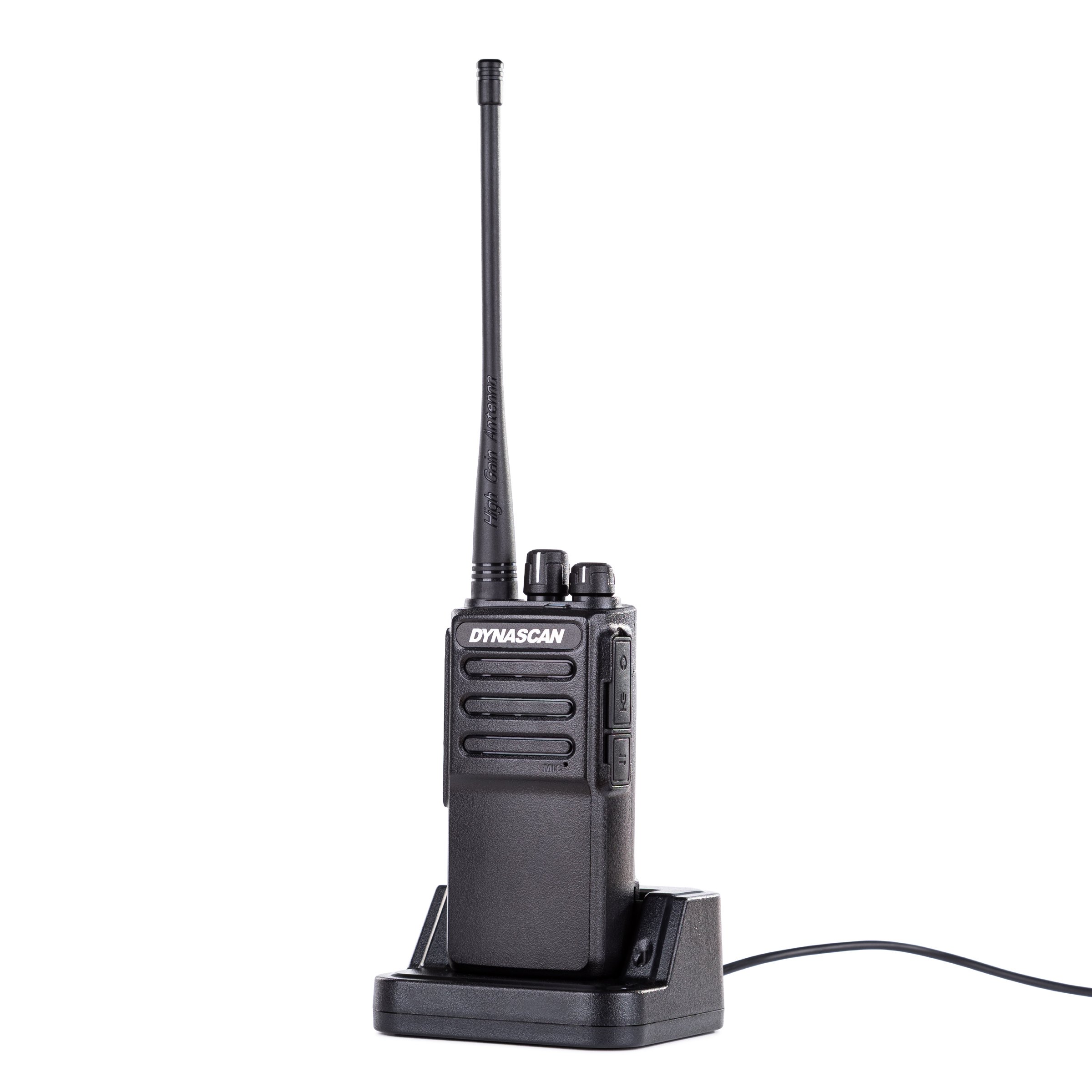

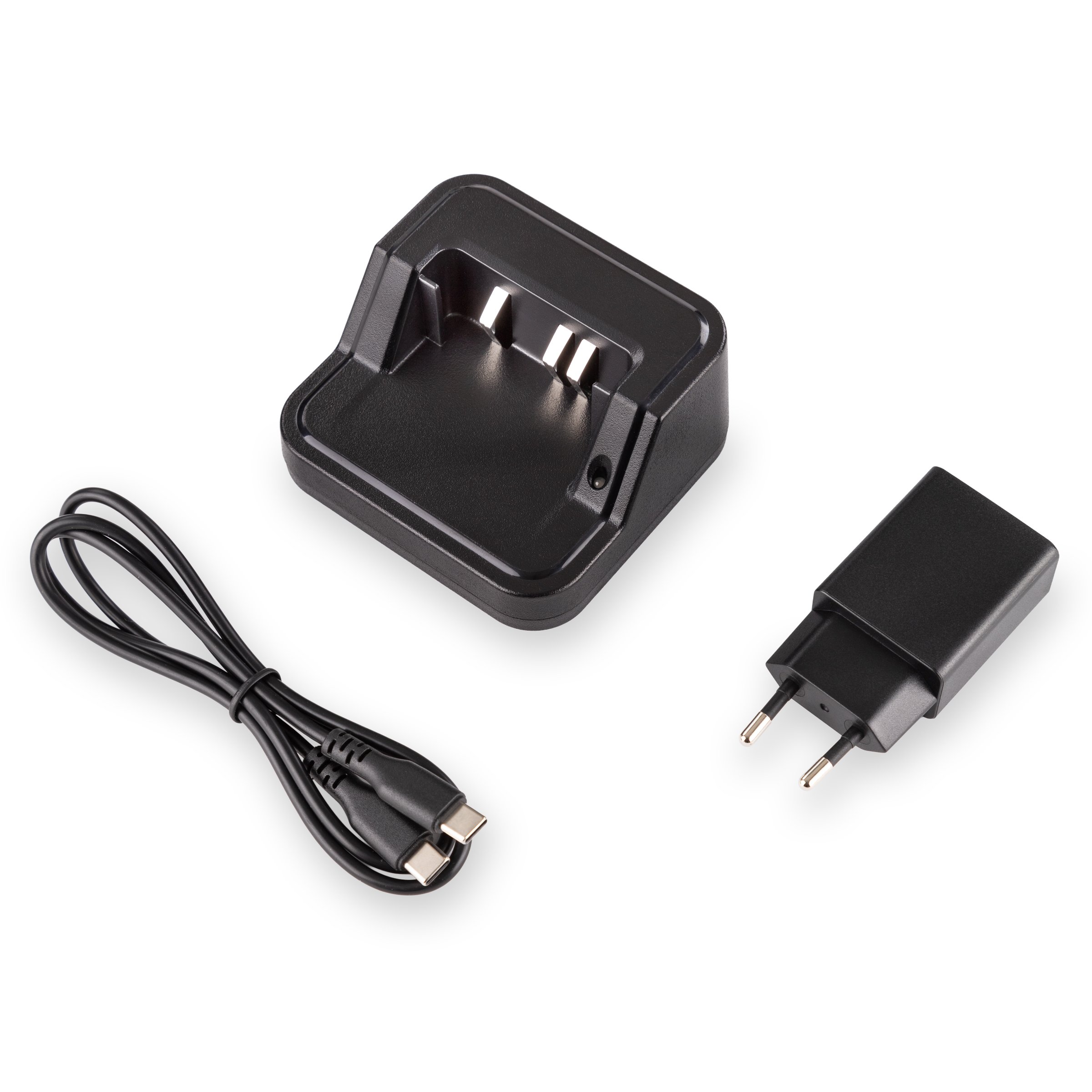

• Desktop Battery Charger
• AC/DC Power Adapter

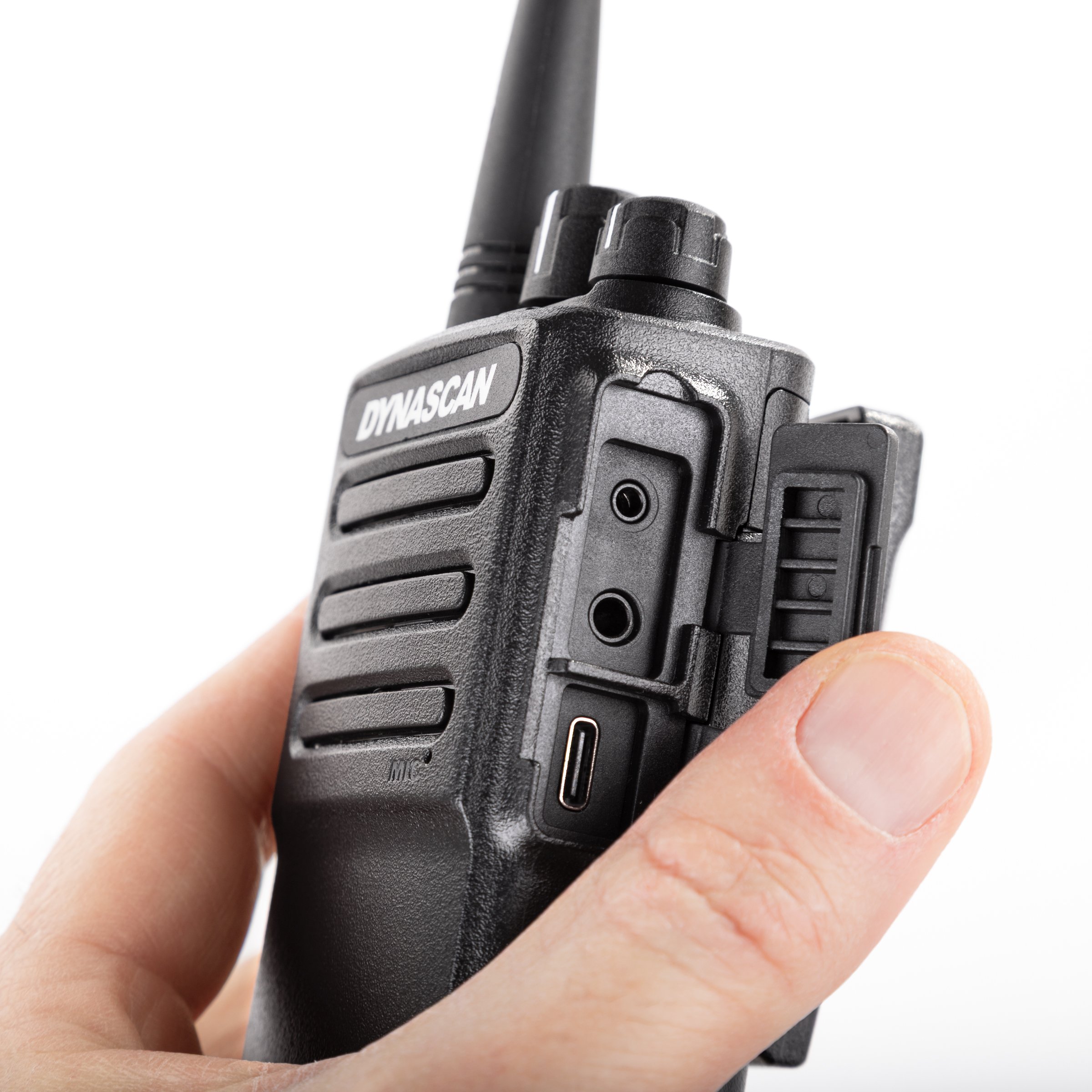

• USB-C Cable for Battery Charging and Programming

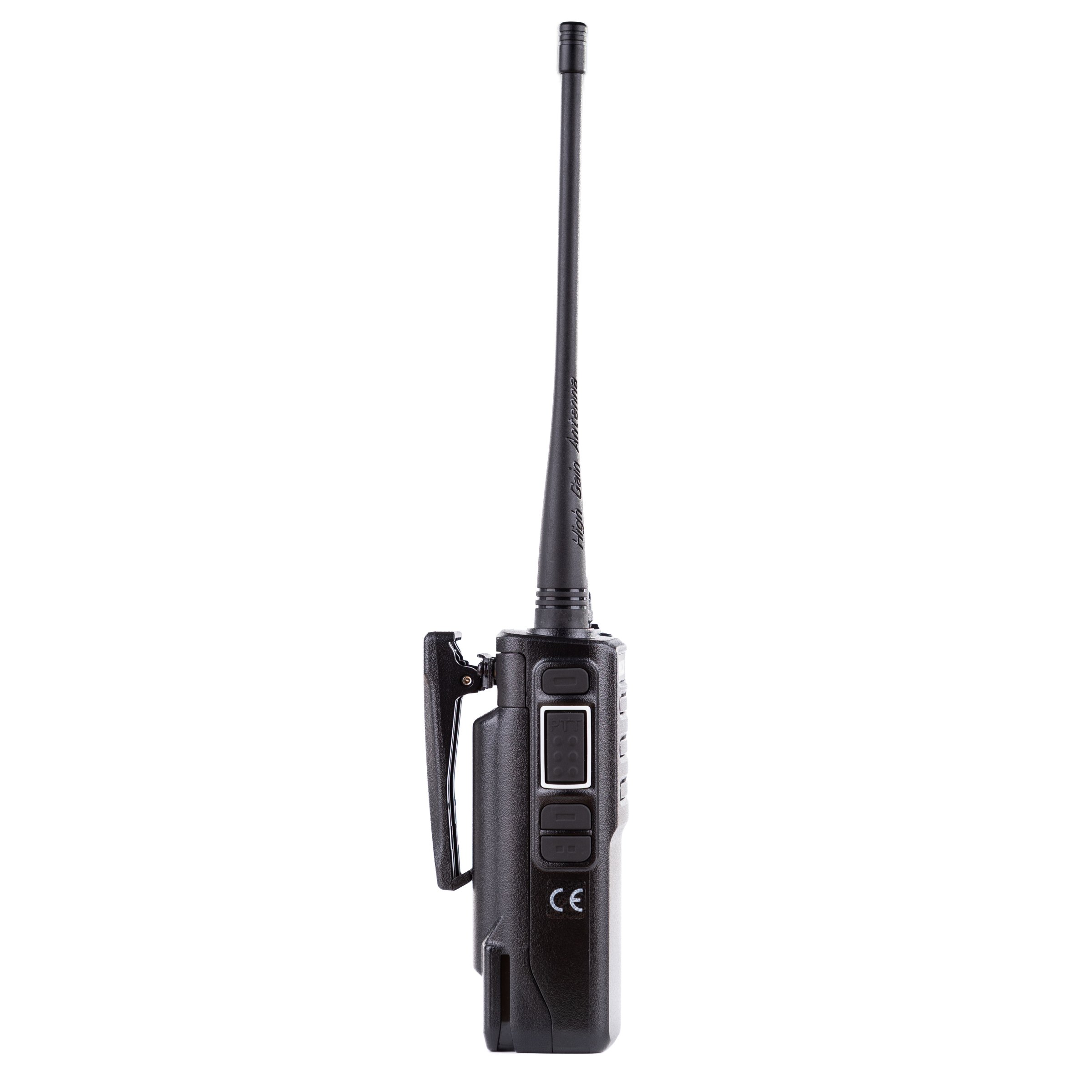

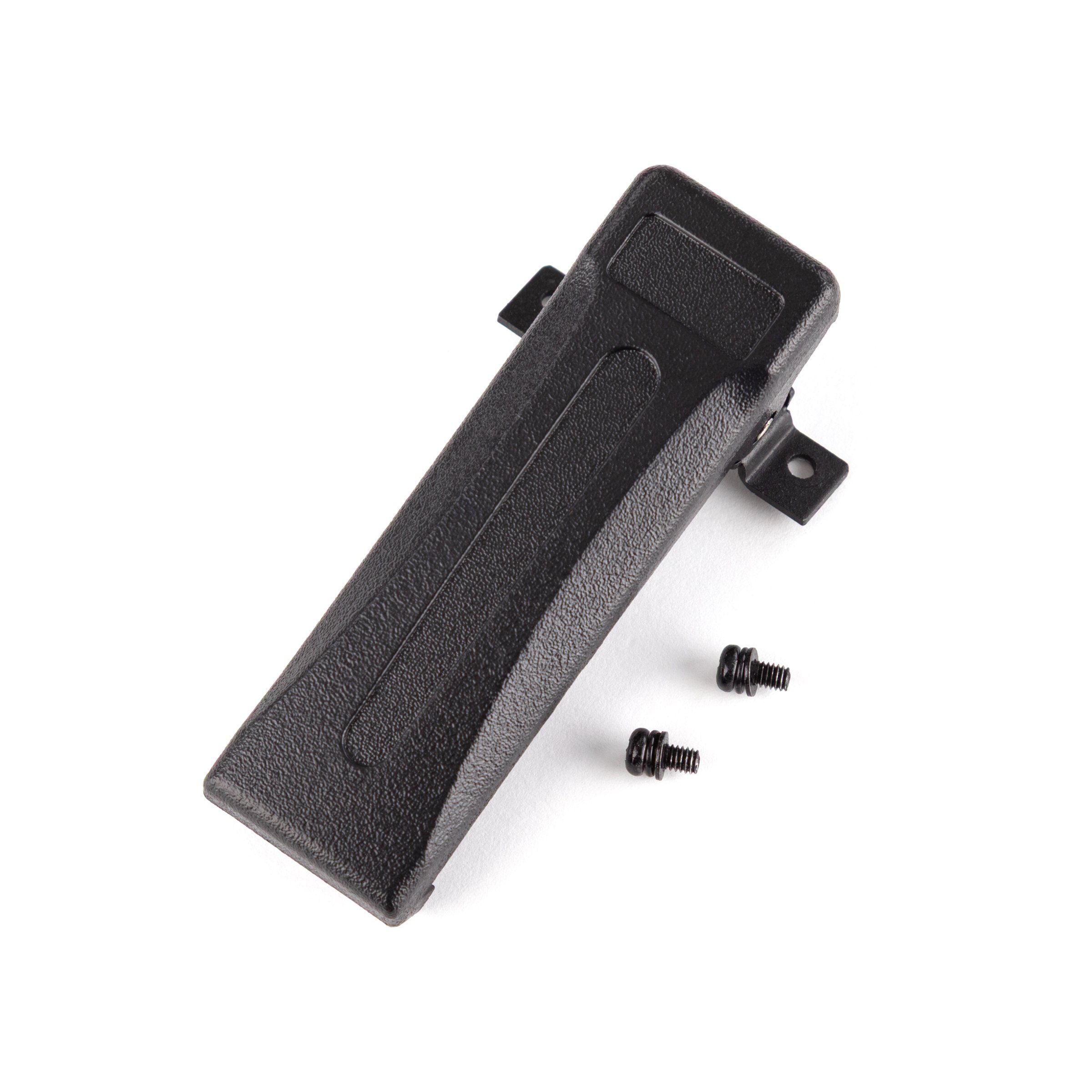

• Belt Clip
• Instruction Manual

* The Bluetooth® function that can be activated via programming and is only available for compatible accessories. Contact us to check your headset’s compatibility. Headset no included.
