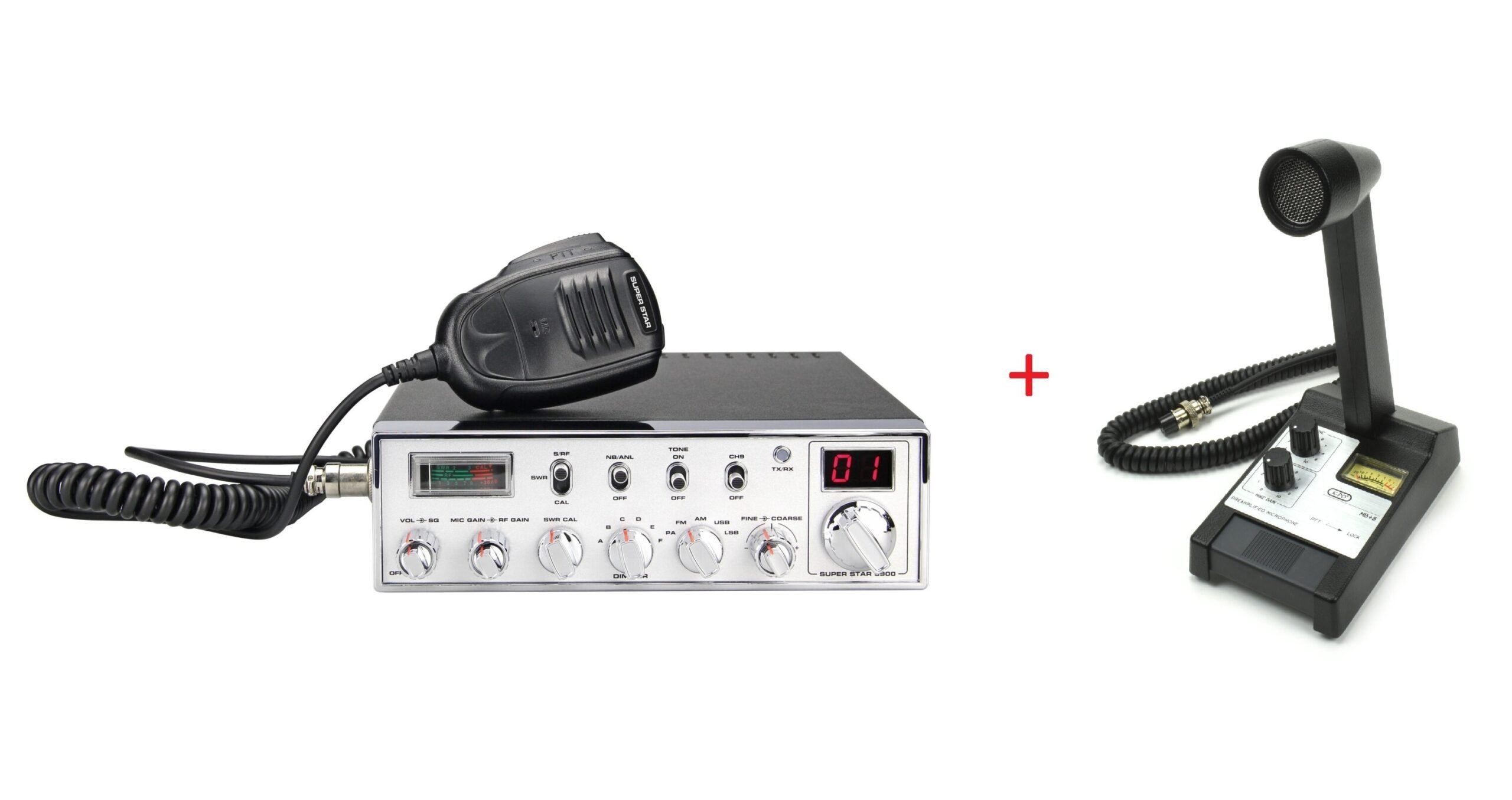

The Super Star 3900 Pack + K-PO MB+5 P4 Microphone bundle combines the market’s most iconic Citizen Band transceiver with a high-performance amplified base station desk mic. This premium hardware combination is engineered to deliver the ultimate 27 MHz communication experience for seasoned radio operators, commercial fleet managers, logistics specialists, and amateur radio enthusiasts. By pairing the updated multi-standard SUPER STAR 3900 with a professional voice-compressing station microphone, this trade pack maximizes modulation punching power, signal clarity, and transmission range across all sideband channels.
The new generation of the Super Star 3900 honors the legacy of the classic model, preserving its signature physical control layout, side-mounted microphone port, and traditional analog S-meter. However, beneath its vintage exterior lies a completely modernized internal board layout utilizing advanced SMT micro-components, resulting in enhanced frequency stability and a significant reduction in total chassis weight. Operating across 40 multi-standard channels on AM, FM, USB, and LSB modes, it outputs a solid 4W in AM/FM and a powerful 12W on Single Sideband (SSB). It introduces an intuitive backlit function display with dimming controls, digital reception/transmission noise reduction algorithms, a built-in VOX hands-free circuit, and full PC programmability, making it equally adaptable as a mobile rig or a centralized base station when connected to a dedicated power supply and a calibrated CB antenna.
To extract absolute maximum performance from this transceiver, the pack includes the heavy-duty K-PO MB+5 P4 Desk Microphone. This amplified power microphone features a built-in preamplifier delivering up to 35 dB of adjustable gain, alongside integrated volume compression circuitry that guarantees rich, consistently high modulation regardless of how close the operator is talking. Front-mounted rotary knobs provide precise manual control over volume and tone equalization, allowing operators to tailor their voice profile to cut through heavy skip, static, or atmospheric interference. Pre-wired with a standard 4-pin connector matching the Super Star 3900 native pinout, it features an analog VU meter for instant visual confirmation of your modulation levels during active transmissions.
Key Features
- All-In-One Power Radio Station Kit: Combines the legendary multi-mode Super Star 3900 mobile radio with the K-PO MB+5 P4 premium amplified desk mic.
- Versatile AM/FM/SSB Performance: Supports 40 multi-standard channels delivering 4 Watts in standard AM/FM modes and 12 Watts on LSB/USB sidebands.
- Modern SMT Board Engineering: Updated internal circuit layout utilizing micro-components increases stability and significantly lowers hardware weight.
- Advanced Signal Filtering: Outfitted with integrated digital transmission and reception noise reduction systems, an automatic squelch (ASQ), and an audio HI-CUT filter.
- +35 dB Amplified Desk Microphone: Heavy-duty base mic includes an adjustable preamplifier and volume compressor to maximize voice punch and readability.
- Integrated Tuning Safety Systems: Protects your investment with high SWR (Standing Wave Ratio) security safeguards and supply voltage over-protection.
- Plug-and-Play 4-Pin Compatibility: The microphone base comes factory-wired with a standard 4-pin layout designed to pair natively with the Super Star 3900, Jopix, President, Alan, and Uniden radios.
Technical Specifications
| Parameter | Specification |
|---|---|
| SUPER STAR 3900 TRANSCEIVER | |
| Radio Band Type | CB-27 MHz Mobile / Base Station |
| Channels / Modulation Modes | 40 Multi-Standard Channels | AM / FM / LSB / USB |
| Frequency Spectrum Coverage | 26.565 to 27.99125 MHz |
| RF Transmitter Output Power | 4 Watts (AM / FM) | 12 Watts PEP (SSB) |
| Frequency Control Architecture | Phase-Locked Loop (PLL) Synthesizer | ±5 ppm stability |
| Interfaces & Antenna Port | 50 Ohm UHF Female (SO-239) connector | 4-pin side microphone jack |
| Operating Voltage & Draw | 13.8 V DC | Nominal Consumption: 5 A |
| Radio Dimensions & Weight | 287 mm (L) × 200 mm (W) × 61 mm (H) | 1,500 g |
| K-PO MB+5 P4 DESK MICROPHONE | |
| Microphone Architecture | Amplified Power Desk Mic with Volume Compressor |
| Preamplifier Audio Gain | Approx. 35 dB (Adjustable via rotary slide) |
| Frequency Response Range | 250 – 3,500 Hz |
| Output Sensitivity / Impedance | -23 dB (0 dB = 1 V/μB) | Variable 0 – 5,000 Ohms |
| Visual Indicator / Metering | Integrated Analogue VU Modulation Level Meter |
| Power Requirements | 9V 6LR61 battery block (battery not included) |
| Mic Wiring Layout | Pin 1: Ground | Pin 2: Audio | Pin 3: TX (PTT) | Pin 4: RX |
| Mic Dimensions & Weight | 95 mm (L) × 160 mm (W) × 230 mm (H) | 1,100 g |
Package Content
- 1x Super Star 3900 Multi-Standard CB Transceiver Unit
- 1x K-PO MB+5 P4 Amplified Base Station Desk Microphone
- 1x Original Handheld Microphone with Up/Down Channel Buttons
- 1x Heavy-Duty Heavy Vehicle Mounting Bracket
- 1x Handheld Microphone U-Shaped Support Hook
- 1x 3-Wire DC Fused Power Supply Cable
- 1x Spare Replacement Fuse (10 A, 250 V)
- 1x Set of Knurled Clamping Screws, Self-Tapping Screws, and Washers
- 1x Non-Slip Anti-Vibration Base Pads
- 1x Comprehensive Technical Operations Manual
