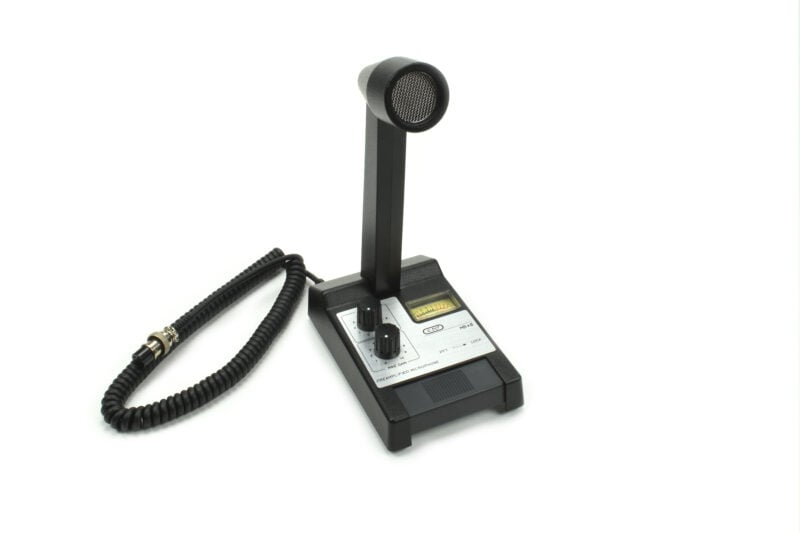

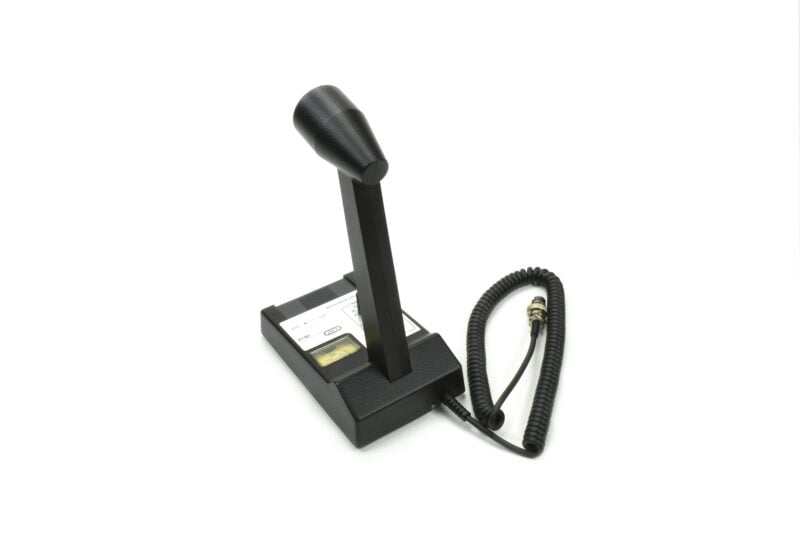

The K-PO MB+5 P6 is a rugged desktop microphone designed for CB and ham radios. It features rotary controls for precise volume and tone adjustment, allowing you to fine-tune the audio to your liking. The microphone connector comes pre-wired for use with most standard 6-pin CB radios, such as Jopix Doris, Jopix AT-606PRO, Alan 48 PRO, President Barry II+ and other radios that use the same standard 6-pin wiring.
A built-in high-gain amplifier of approximately 35 dB provides a powerful and clear audio signal, while the integrated volume compressor ensures consistent modulation during transmission. The output level can be precisely adjusted to virtually any transmitter, and the internal equalizer allows for fine-tuning of the sound characteristics. The microphone operates on a 9-volt battery (not included). An integrated analog VU meter provides continuous visual feedback on the modulation level, helping you maintain optimal audio performance at all times.
Always carefully check if your transceiver is compatible with your version of the MB+5 microphone. We are not responsible for damage caused by improper use (or incorrect wiring) of the microphone to your microphone or transceiver.
FEATURES
- Tone Function: Yes
- Microphone Gain Function: Yes
- Microphone Type: Power Microphone
- Frequency Response: 250 – 3500 Hz
- Output Level: -23 dB (0 dB = 1 V/μB)
- Impedance: 0 – 5000 ohms
- Battery: 9-volt 6LR61 battery (not included)
- Microphone Connector: 6-pin
- Length: 95 mm
- Height: 230 mm
- Width: 160 mm
- Weight: 1,100 g
Microphone Wiring
- Microphone Audio: Pin 1
- Receive: Pin 2
- Transmit: Pin 3
- Off: Pin 4
- Ground: Pin 5
- Off: Pin 6
Some compatibles radios
- Jopix Doris, Jopix AT-606PRO
- President: Almost the entire modern range, including Barry II, Bill, Walker II, Richard, Ronald, McKinley, and Lincoln II+
- Midland/Alan: Models such as the Alan 48 Pro, Alan 78 Pro, and the M series
- Various M-Tech/Stabo
- CRT: Models such as the CRT Mike or CRT 6900 (in their 6-pin versions).
- Alinco DX-10
- Anytone with a 6-pin round connector
