Compact 30A Digital Switching Power Supply for Telecom Stations
The Jetfon PC-30 SWD is a highly reliable stabilized switching power supply designed to deliver clean and efficient power to professional radio communication equipment and electronics benches. Offering an output current of 20 Amps under continuous operation and handling up to 30 Amps at peak demand, this compact unit is perfectly sized for mid-range transceivers, mobile accessories, and precise laboratory testing.
High-Visibility Digital Metering and Noise Reduction

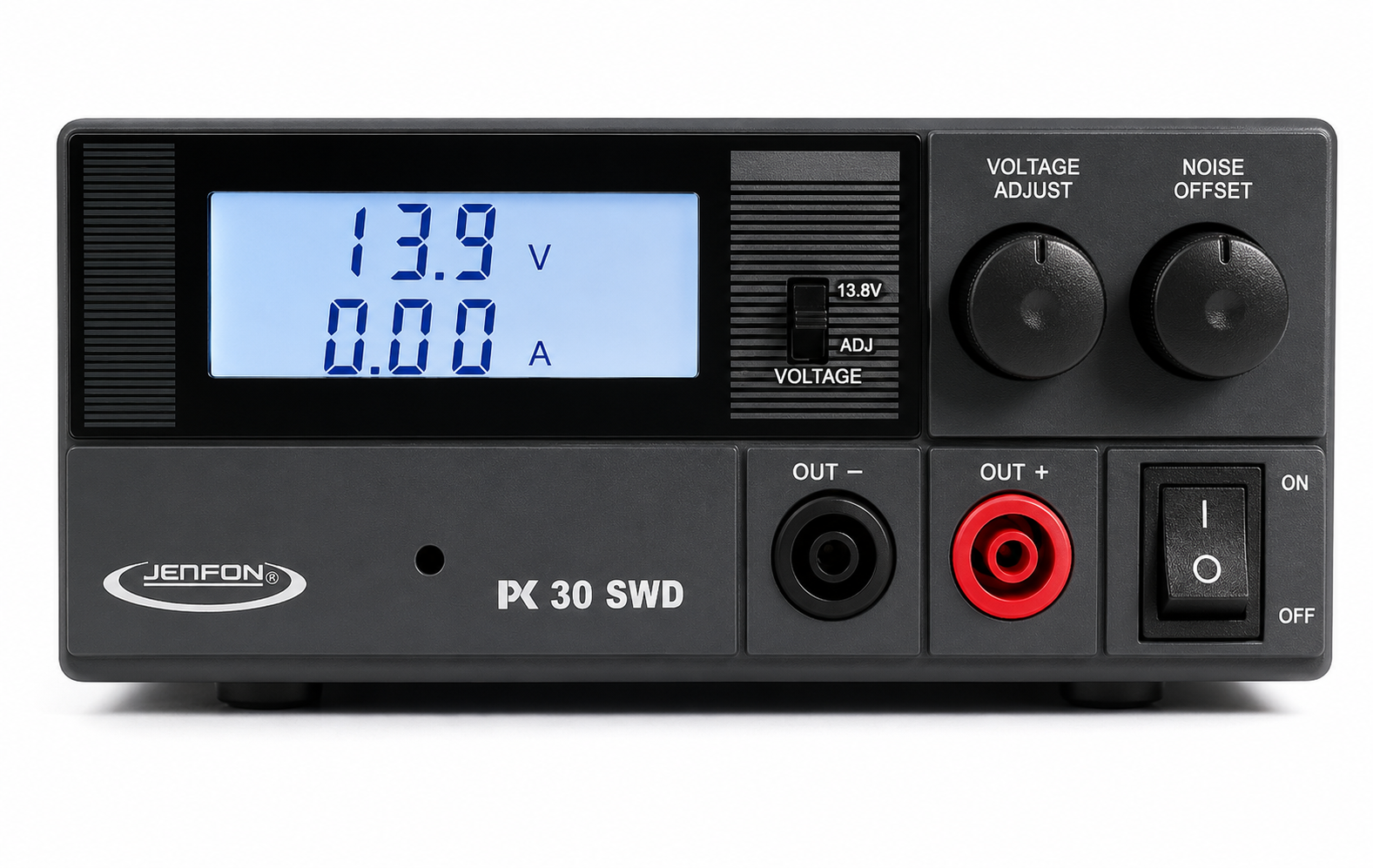

This model features an integrated digital voltmeter and ammeter with an elegant backlight on the front panel, providing instant, highly visible real-time readings of both voltage and active current consumption. To ensure absolute flexibility, it includes a convenient toggle option to shift between a rock-solid fixed 13.8 VDC output—the universal standard for telecom infrastructure—and a fully adjustable 9 to 15 VDC range for versatile workshop diagnostics.
Advanced Safety Engineering and Thermal Control
Built to ensure the ultimate safety of your sensitive radio gear, the PC-30 SWD features a robust defense architecture incorporating automatic short-circuit protection and an automated current limiter. It operates with a very low ripple current of less than 80 mVpp at full load, eliminating typical hums or interference, while its lightweight 1.45 kg chassis makes it highly portable and easy to deploy on any service bench.
FEATURES & SPECIFICATIONS
• Technology: Advanced stabilized switch mode
• Input Voltage: 230 V AC (nominal) 50 Hz
• Output Voltage Modes: Fixed 13.8 VDC and adjustable 9 – 15 VDC
• Output Current: 20 Amps continuous / 30 Amps maximum peak
• Line Voltage Regulation: Variation factor <2%
• Metering Instrument: Backlit digital Voltmeter and Ammeter
• Safety Protections: Short-circuit protection and automatic current limiter
• Ripple Current: <80 mVpp at full load condition
• Safety Fuse: 5 A
• Dimensions: 15.5 (W) x 7 (H) x 20.5 (D) cm
• Weight: 1,450 g (1,850 g with packaging)
CONTENT
• Jetfon PC-30 SWD Digital Power Supply
• AC Power Cord
• Instruction Manual
