Ultra-Compact 25A Switching Power Supply with Backlit LCD Display

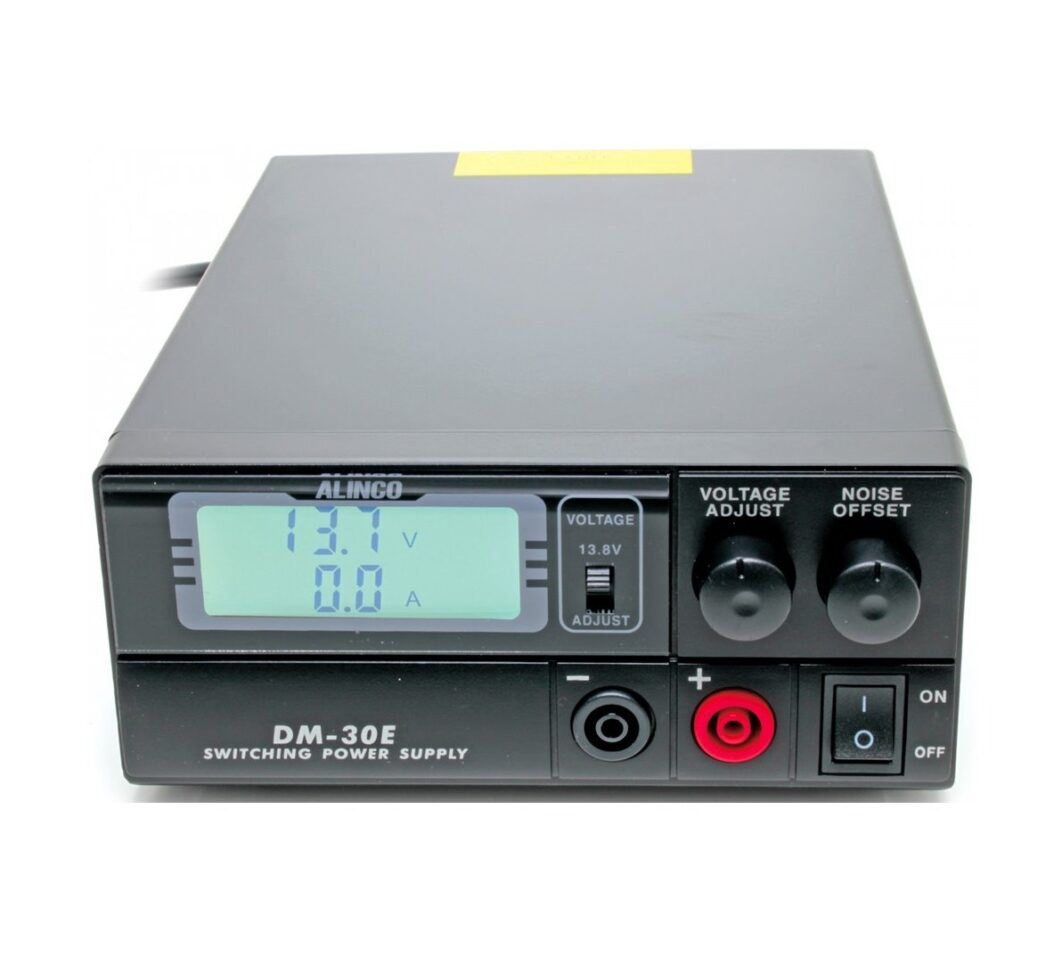

The Alinco DM30E is an advanced, highly reliable switching power supply engineered specifically for 2-way radio communication, laboratory applications, and electronics hobbies. Delivering a continuous current output of 20 Amps and a maximum surge peak capacity of 30 Amps, this unit provides the rock-solid and stable electrical distribution required by demanding amateur radio transceivers and station accessories.
Precision Digital Interface and Dual Output Configurations
This model features a modern, high-visibility backlit LCD display on the front panel that offers accurate, real-time monitoring of both Voltage (Volts) and Amperage (Amps) simultaneously. Designed for ultimate versatility, it provides multiple output options: a fixed 13.8 VDC output terminal layout on the rear panel—the universal standard for telecom infrastructure—alongside an adjustable front output terminal array variable from 9 to 15 VDC.
Silent Ventilation and Premium Circuit Protection
Housed in a rugged protective metal casing, the Alinco DM30E incorporates an ultra-silent cooling fan system that ensures efficient thermal regulation without adding background operational noise to your shack or laboratory workspace. For absolute peace of mind under intensive continuous workloads, its robust safety architecture includes comprehensive built-in protections against short circuits, overcurrent, and overvoltage conditions.
FEATURES & SPECIFICATIONS
• Technology: Advanced high-performance switch mode
• Input Voltage: 220 / 230 V AC nominal input
• Continuous Output Current: 20 Amps continuous service
• Peak Output Current: 30 Amps maximum surge capacity
• Variable Output Range (Front): 9 – 15 VDC fully adjustable
• Fixed Output Mode (Rear): Stable 13.8 VDC continuous output
• Metering Instrument: Integrated backlit digital LCD Volt / Amp meter
• Safety Features: Short-circuit, overcurrent, and overvoltage protection
• Cooling System: Ultra-silent automated cooling fan
• Chassis Material: Rugged protective metal housing
• Dimensions: 155 (W) x 70 (H) x 205 (D) mm
• Weight: 1.6 kg
