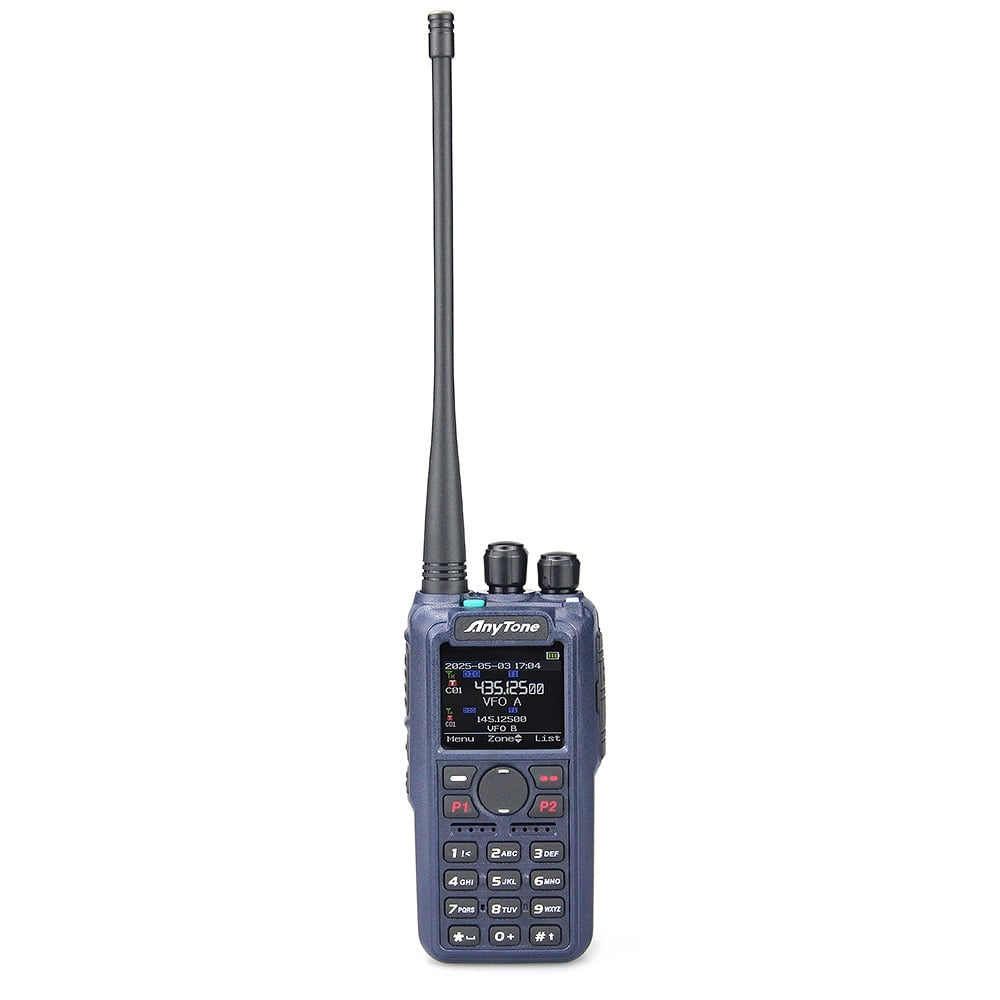

The AnyTone AT-D890UV is a dual-band walkie-talkie (VHF/UHF) for radio amateurs with DMR® digital technology (compatible with ETSI DMR Tier 1 and 2) that also works in analog FM mode, GPS with APRS and BT Wireless for connection with wireless micro-headsets. The AT-D890UV is an improved version of the popular AT-D878UV2 model, including new features such as: cross-band repeater and SFR mode, simultaneous DUAL reception, air band reception, among others.
Just like the previous model, the AT-D890UV features the ability to store up to 500,000 contact records and 10,000 talk groups in a large internal memory that allows us to save and work with up to 4,000 channels.
The AT-D890UV from Anytone features a generous 1.77″ color display with various backlight settings. It can be easily read from different angles and even in bright sunlight. The screen indicators have been updated, sporting a more modern look for better legibility. Additionally, it now features a bar graph to display signal strength.
The remaining functions of the AT-D890UV are extensive. In analog mode, functions such as DTMF, CTCSS, and DCS are supported, as well as signaling with two and five-tone codes. In digital mode, it features AES256 and ARC4 encryption, an internal memory recording function for both analog and digital modes, a “Man Down” alert, among many other features.
KEY FEATURES
- Dual band VHF + UHF (144-146 MHz / 430-440 MHz)
- Air band AM reception and commercial FM
- DMR Digital Tier I / II and Analog FM
- True DUAL Digital Receive (Simultaneous reception)
- GPS receiver with APRS support
- BT wireless connectivity for micro-headsets
- High-visibility 1.7″ color TFT display
- Up to 500,000 digital contacts
- AES256 and ARC4 encryption
- Digital/analog audio recording
- “Man Down” function
- Charging via USB-C port
- Cross-band repeater function
ADDITIONAL FEATURES AT-D890UV
- Analog or digital mode auto-detection
- 4,000 channels, 10,000 groups, 500,000 contacts
- 2GB Internal Memory
- VFO function button for direct frequency entry
- APRS function in RX and TX in analog FM or DMR
- Color TFT LCD display with dual display and dual standby
- CTCSS / DCS encoding and decoding
- DTMF / 2TONE / 5TONE signaling
- Up to 5 different IDs in DMR
- AES256, ARC4 encryption, and Scrambler
- Roaming function
- SMS text messaging from keyboard
- Recording function: Up to 14 hours in digital and analog mode
- VOX, ANI, and PTT ID functions
- Emergency alarm (with GPS position transmission)
- 2-pin earphone connector: KENWOOD type
- Waterproof: IP54
- Battery: 3100mAh battery with USB-C port for recharging
SPECIFICATIONS
- Supported bands: 2m, 70cm (144-148 MHz and 430-440 MHz)
- Output power: VHF 7W/5W/2.5W/0.2W and UHF 6W/5W/2.5W/0.2W
- Channel spacing: 25 KHz / 12.5 KHz / 6.25 KHz
- Frequency steps: 5KHz, 6.25 kHz
- Power supply: 7.4V DC +/- 20%
- Battery: 3100 mAh
- Charging connection: USB Type-C
- Temperature range: -20°C ~ +55°C
- Antenna connection: SMA Male (compatible with antennas with SMA Female connector)
- Wireless connection: compatible with Bluetooth® devices
- Color: Dark blue-grey
- Dimensions: 129 x 61 x 39 mm (with battery, without antenna)
- Weight: 282 g (with battery and antenna)
PACKAGE CONTENTS
- Anytone AT-D890UV walkie-talkie
- QA-11UV standard dual-band antenna
- TX-0313 38cm long antenna
- 7.4V Li-ion battery, 3100 mAh capacity (QB-44HL)
- QBC-47L desktop charger
- AC 220V USB power adapter
- USB-A to USB Type-C cable
- BC-05 belt clip
- PC-04 USB programming cable
- BP-03 Bluetooth PTT button
- Hand strap
- User manual (Spanish and English)
