Description

· Frequencies: 446.00625 MHz to 446.09375 MHz (Tx / Rx) / 87-108 MHz (Reception only in commercial FM radio).
· Number of channels: 8.
· Type of antenna: Integral.
· Operating temperature: -20ºC to + 50ºC.
· Power supply voltage: Ion-Lithium battery 1600mAh 7.4 Vcc.
· Backlit LCD screen
· CTCSS / DCS
· Modulation: 8K5F3E (FM).
· SCRAMBLER
· Compander
· FM commercial radio receiver
· Operation mode: Simplex.
· Frequency scanning
· Beep selectable
· Roger selectable
· Channeling: 12.5 kHz.
· Work cycle: 100%.
· Dimensions: 115x55x35 mm.
· Weight: 243 gr (with battery).
· Degree of protection IP67: Resistant to dust and water (1 meter / 30min.)
TRANSMITTER:
Frequency stability: ± 2.5 ppm.
RF power: 0.5 W (P.R.A.).
Maximum deviation: ± 2.5 kHz.
Distortion: <5%.
Spurious emission: <-36 dBm.
RECEIVER:
Sensitivity: <0.2 μV.
Audio distortion: <5%.
Audio response: +2 dB at -10 dB.
Adjacent channel selectivity: ≥60 dB.
Intermodulation: ≥60 dB.
Spurious radiation: <-57 dBm.
Locking: ≥80 dB.
Included accessories:
Antena, table charger, 220V AC adapter, clip
Optional accessories:
Holster FN07S, micro-headphone type JR-1703 E / C, battery, antenna, charger and network adapter.

USUALLY PURCHASED AS A SET

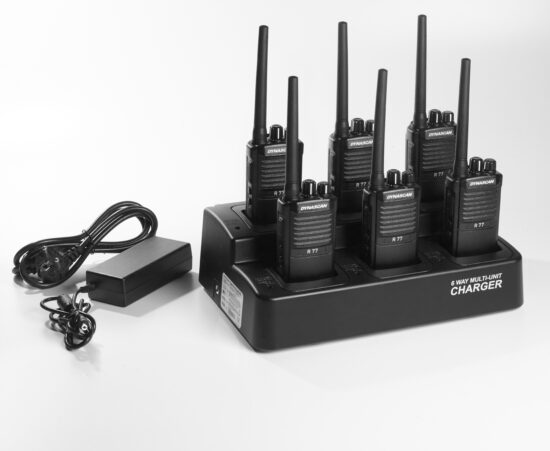

Dynascan R-77
