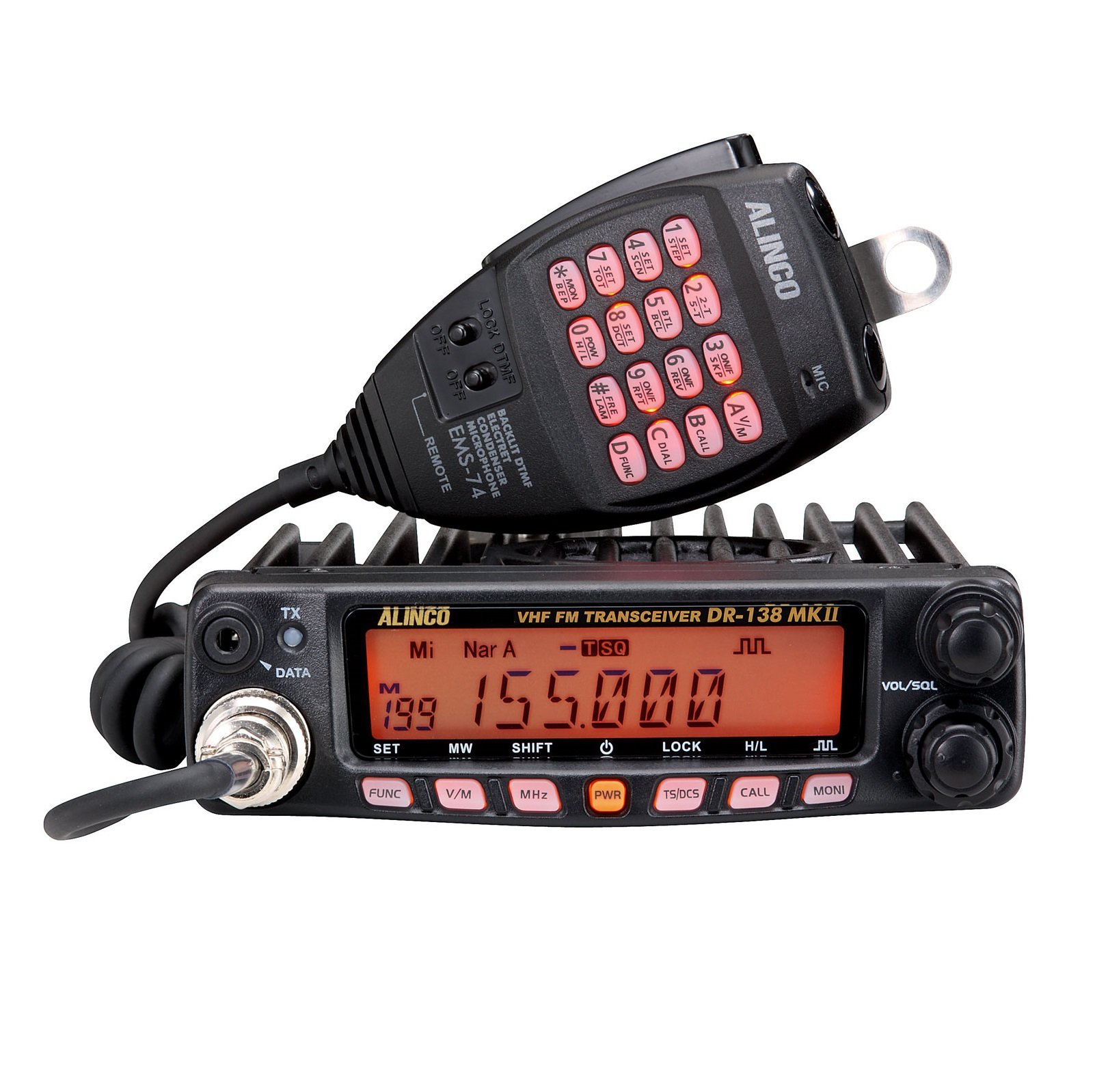

The Alinco DR-138EMK II is a new model of VHF mobile transceiver for amateur radio that has been significantly updated and improved upon its predecessors, for those who seek superior performance and exceptional versatility.
Among its main new features is its impressive 70W transmission power, which ensures robust, long-range communications. The incorporation of a **noise reduction** system guarantees that every message is heard clearly, even in the noisiest environments. But its versatility doesn’t stop there: it now also allows for **airband** (AM) reception and **commercial FM radio**, making it a multifunctional device for any radio amateur.
Equipped with a **large alphanumeric display**, the **DR-138EMK II** offers an intuitive and easy-to-read interface. With **200 available memories**, you’ll have plenty of space to save your favorite frequencies. Its wide reception frequency range is complemented by **50 CTCSS subtones and 1024 DCS codes**, giving you total control over your communications.
Additionally, the radio includes advanced functions such as **keypad lock**, multiple scanning modes, and **selective calling** (2TONE, 5TONE, DTMF, DTMF-ANI), ideal for professional and security applications. The **noise reduction** function and the **automatic power-off (APO)** option enhance the user experience, while the **anti-theft alarm** system adds an extra layer of security.
Connectivity and Functionality
- Selectable power: 70W/25W/10W to adapt to any communication situation.
- Frequency range: TX/RX from 144-146MHz, with extended reception from 136-174MHz, airband (AM) from 108-136MHz, and commercial FM radio from 87.5-108MHz.
- TOT and BEEP function: Transmission timer and configurable audible tones.
- DTMF support: Allows tone dialing, expanding communication possibilities.
FEATURES
- Frequency range: 144-146MHz (RX-TX) / 136-174MHz (RX)
- Airband (AM) reception: 108-136MHz (RX)
- Commercial FM radio: 87.5-108MHz (RX)
- Number of memories: 200
- Selectable transmission power: 70W/25W/10W
- Large alphanumeric display
- Frequency steps: 2.5 / 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
- Power supply voltage: 13.8Vdc (+/-15%)
- Operating temperature: -20ºC to +60ºC
- Duty cycle: 3-3-54 minutes (Rx/Tx/Standby)
- DTMF
- Keypad lock
- 50 CTCSS subtones and 1024 DCS codes
- Selective calling functions: 2TONE, 5TONE, DTMF, DTMF-ANI
- Clone function
- TOT function
- BEEP function
- BLE function (low-energy Bluetooth with a range of up to 100 meters)
- Automatic power-off APO 30-60-120 minutes
- Busy channel lock BCL
- Backlit display with function indicator.
- 3 scanning modes
- Anti-theft alarm function
- Cable cloning function
- Programmable VFO
- Noise reduction
- Dimensions: 139 x 40 x 212 mm
- Weight: 1.15kg (approx.)
CONTENTS
- DR-138MK II Transceiver
- EMS-74 microphone with DTMF keypad
- ADFM78 mounting bracket
- Power cable with fuse ADUA38
- Mounting screws
- Spare fuses
- User manual (Spanish and English)
