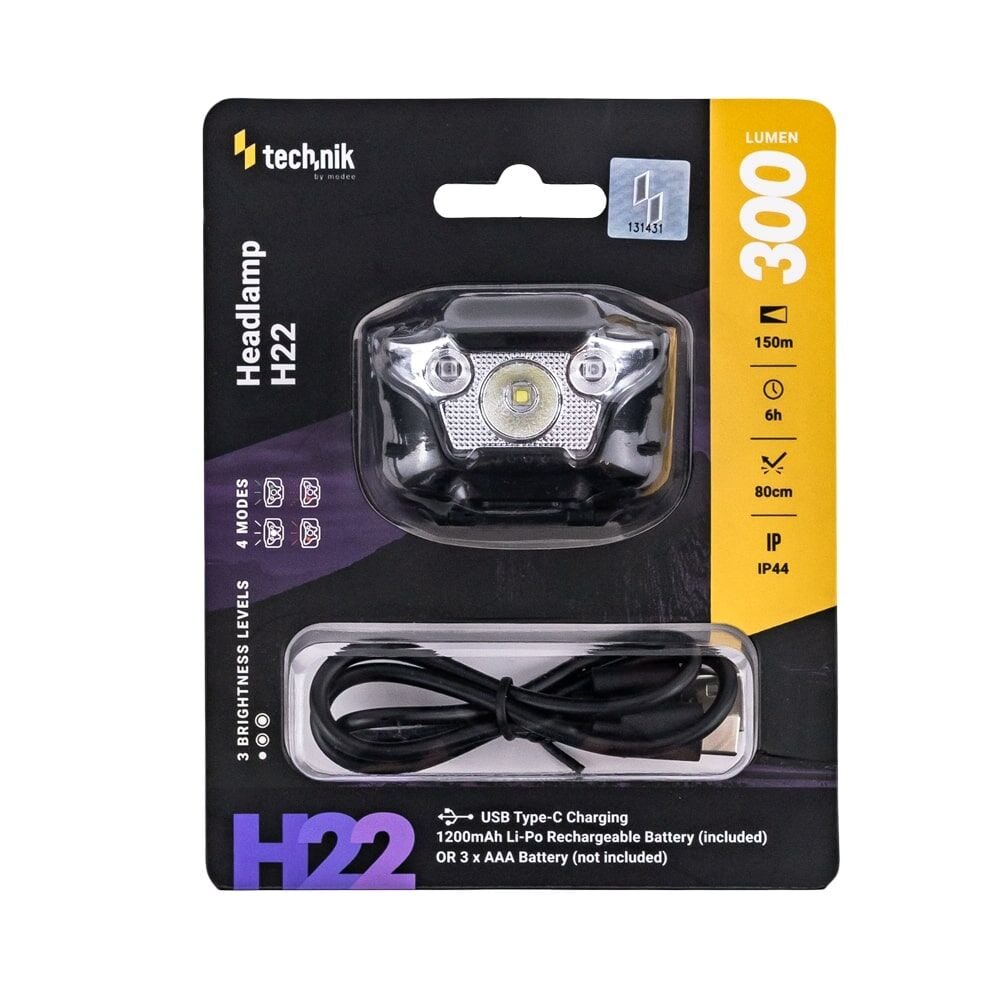

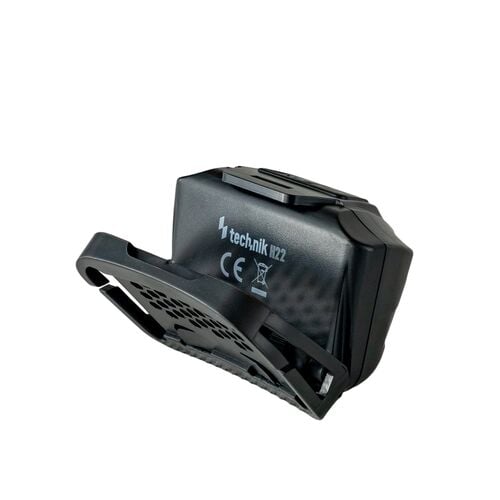

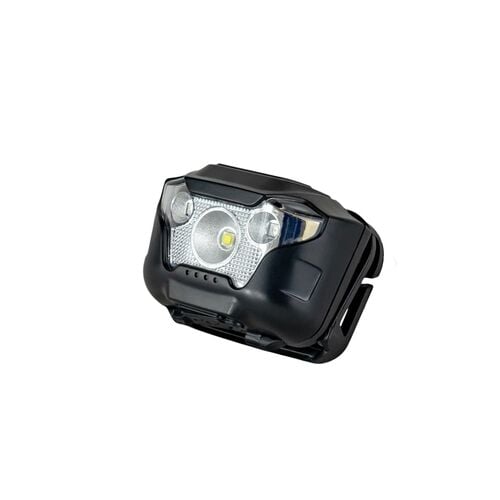

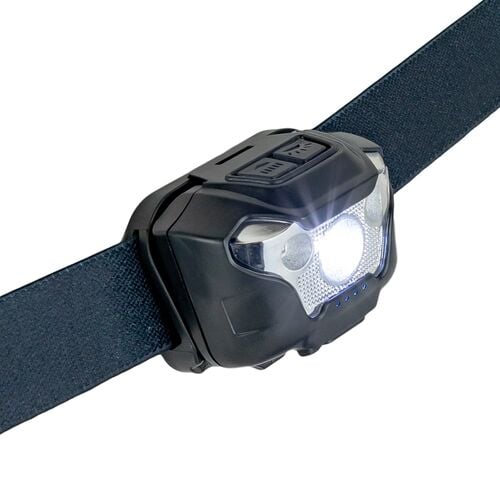

The Technik H22 Headlamp – Type C (300 lumens) is a commercial-grade, multi-spectral portable illumination instrument precision-engineered to deliver dependable, high-integrity hands-free lighting across demanding outdoor environments and industrial workspaces. Fabricated from a high-impact, weather-resistant polycarbonate shell, this ruggedized headlamp platform provides a certified mechanical impact rating capable of enduring accidental drop falls from up to 0.8 meters. Sealed to achieve a rigorous IP44 dust- and water-resistance rating, the chassis comfortably withstands rain splash and airborne particulate penetration, serving as an essential logistics procurement asset for outdoor maintenance crews, emergency response teams, tactical survival kits, and high-volume B2B electronics and hardware distribution networks looking to stock dependable portable lighting assets.

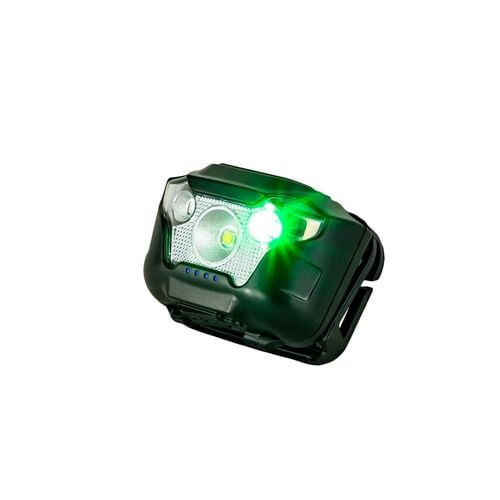

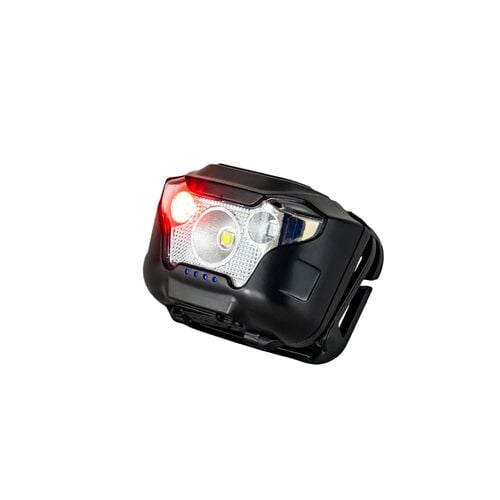

The optoelectronic architecture of the Technik H22 is driven by a premier, long-life CREE XP-G3 LED element delivering a maximum luminous output of 300 lumens and a highly effective beam throw range of 150 meters. To accommodate changing field conditions and optimize power consumption over a continuous 6-hour standby runtime, the system incorporates three distinct white-light brightness levels alongside specialized low-intensity auxiliary light paths. The integrated red light mode preserves tactical night-vision adaptation while avoiding insect attraction—operating in constant or flashing signaling streams—while the dedicated green light mode provides a specialized constant beam ideal for localized field navigation and fishing operations as it does not disturb aquatic life.
Operational control is highly streamlined via a simple, intuitive two-button interface plate located on top of the headlamp body, enabling seamless multi-shift navigation even when wearing heavy utility gloves. The right control button manages the main white-light modes, while the left button toggles the auxiliary red and green LEDs, including the red flashing hazard function. Featuring a sophisticated dual-fuel power framework, the H22 comes populated with an integrated 1100 mAh lithium-polymer rechargeable battery but remains fully compatible with 3x AAA batteries (alkaline or NiMH cells) to guarantee absolute field readiness when charging grids are unavailable. Maintenance is simplified through an integrated USB-C charging port positioned at the base alongside a four-stage blue LED power indicator array that alerts operators to precise cell capacity status. Measuring a streamlined 71.3 g net chassis weight (120 g gross packaging weight), this turnkey lighting kit ensures immediate technical system alignment and instant hands-free deployability.
| Technical Specification Parameter | Specifications |
|---|---|
| Product Brand Designation | Technik (Premium Outdoor Optoelectronics Line) |
| Hardware Model Designation | H22 Type-C (Multi-Spectrum Utility Series) |
| Primary Component Classification | Hands-Free Adjustable Multi-LED Rechargeable Headlamp |
| Primary Core Emitter Type | High-Quality CREE XP-G3 LED Element (Tens of Thousands Hour Lifespan) |
| Maximum Luminous Output Power | 300 Lumens (lm) Peak White-Light Output Field Delivery |
| White Light Dimming Matrix | 3 Selectable Brightness Levels for Custom Environment Mapping |
| Auxiliary Light Source Capabilities | Constant/Flashing Tactical Red Light + Constant Stealth Green Light Mode |
| Maximum Effective Range Throw | 150 Meters Max Focal Range Coverage Distance |
| Primary Operator Control Interface | Top-Mounted Ergonomic Two-Button Design (Dedicated White vs. Color Controls) |
| Primary Structural Material | Heavy-Duty Weather-Proof Polycarbonate Housing |
| Environmental Protection Index | IP44 Water Resistance and Dust Penetration Protection Rating |
| Mechanical Impact Shock Proofing | Up to 0.8 Meters (0.8 m) Certified Fall Dynamic Protection |
| Primary Power System Base | Built-In Rechargeable 1100 mAh Lithium-Polymer Battery Pack |
| Dual-Fuel Power Adaptation | Fully Secondary Compatible with 3x AAA Alkaline or NiMH Cell Power Blocks |
| Charging Interface Hardware | Bottom-Mounted USB-C Input Port with 4-Stage Blue Charge Indicator LEDs |
| Continuous Standby Life Rating | 6 Hours Continuous Operation Baseline Window |
| Net Operational Component Mass | 71.3 grams Ultra-Lightweight Ergonomic Field Profile (Excluding Batteries) |
| Gross Packaged Assembly Weight | 120 grams Turnkey Box Shipment Scale Profile |
| Verified Hardware Compatibility Scope | Standard Type-C charging adapters, 5V power docks, AAA battery lots, tactical helm arrays, and adjust rubberized security bands |
| Primary Fleet Utility Purpose | Turnkey hands-free work site outfitting, close-to-mid range variable field tracking, environmental stealth operations, and internal cell circuit protection |
