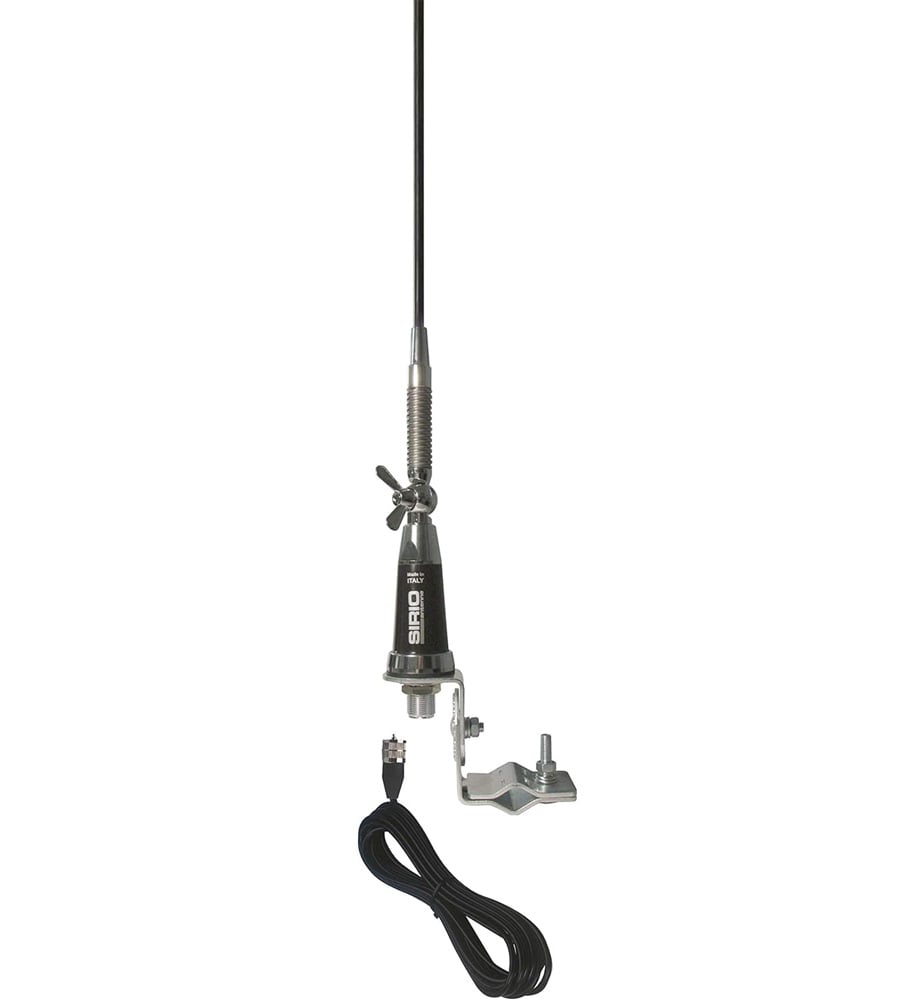

Fiber optic CB antenna with a loading coil at the base. Designed for vehicles with fiberglass or metal cabs. Ideal for motorhomes. No adjustments or ground plane required. SWR below 1.6. Includes an ASP-1 mounting bracket and 4 meters of RG58 cable with a PL male connector (PL259). Maximum recommended power: 15W AM/FM / 50W SSB. Length: 1.14 meters. Optionally, a specific mounting bracket can be purchased depending on the vehicle type.
FEATURES:
• No ground plane required – easy vehicle installation
• 360° omnidirectional coverage for maximum reception
• Excellent SWR tuning (<1.2) for greater efficiency
• Wide frequency range (26–28 MHz)
• Cable included (4 m RG58) ready to mount
• Compact and durable – medium size (1.14 m)
• Type: CB mobile antenna
• Frequency: 26–28 MHz
• Center frequency: 27.185 MHz
• Bandwidth: > 5.5 MHz (SWR < 2)
• SWR at resonance: < 1.2
• Impedance: 50 Ohms
• Polarization: Vertical
• Radiation: Omnidirectional
• Horizontal angle: 360°
• Channels: 500 CH
• Performance: 5.5/10
• Maximum power: 15W (continuous) / 50W (SSB)
• DC Protection: Short to ground
• Cable: RG58
• Cable Length: 4 m
• Connector: PL male
• Antenna Base: N female
• Application: Vehicles
• Mounting: Bracket
• No ground plane required
• Length: 1.14 m
• Size: M
• Color: Silver / Black
• Complete CB 27 MHz Antenna
