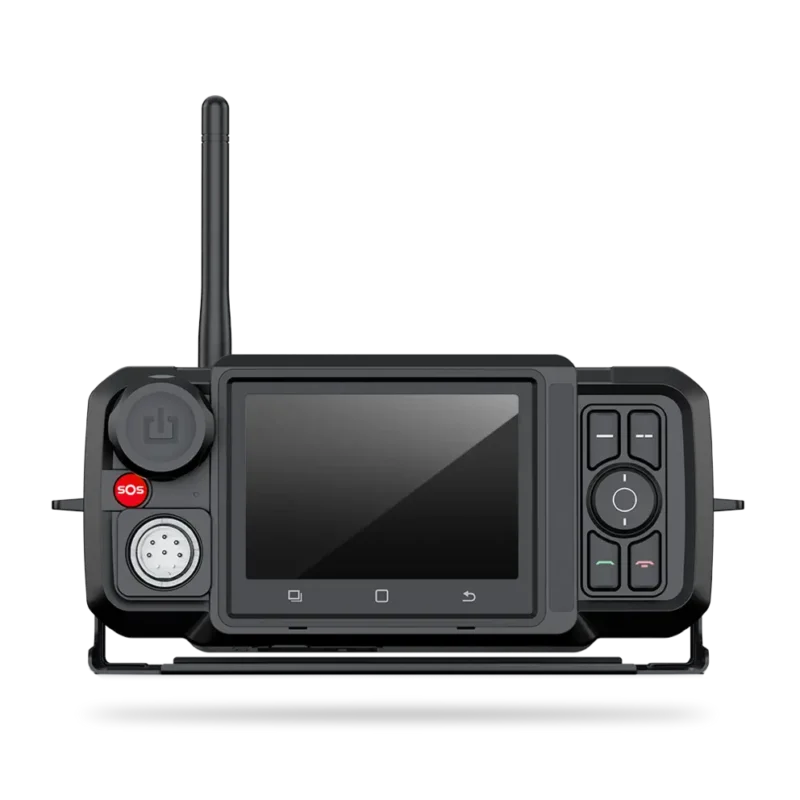

The RugGear RG230 is an all-in-one professional mobile terminal featuring 4G LTE cellular connectivity and PoC (Push-to-Talk over Cellular) technology, specifically engineered for fleet management, in-vehicle operations, and command center dispatching. Designed for simple rapid deployment as well as fixed cabin installations, it integrates a 3.5-inch touchscreen (480 x 320 pixels), front-facing physical navigation keys with a dedicated PTT button, and a powerful 4 W front loudspeaker delivering over 105 dB of acoustic output, ensuring crisp, intelligible audio even in loud working conditions.
Powered by the RG-OS 11 GO operating system and a MediaTek MT8766 Quad-Core processor (4x 2.0 GHz Cortex-A53) paired with 2 GB RAM and 32 GB internal storage (expandable via microSD card up to 256 GB), the RG230 offers comprehensive wireless connectivity including 2G, 3G, multi-band 4G LTE, dual-band Wi-Fi (2.4 GHz / 5 GHz), Bluetooth 5.0, and multi-constellation GNSS positioning (GPS, A-GPS, Glonass, Galileo, and Beidou). Its broad DC operating voltage range of 12 to 36 V, combined with a three-wire power harness supporting ignition sense (ACC) and dual circuit protection, provides dependable integration across passenger cars, vans, trucks, and heavy machinery.
Key Advantages
- Distance-Free 4G PoC Communications: Nationwide and international voice and data dispatch coverage via 2G/3G/4G cellular networks and Wi-Fi without reliance on private RF repeater networks.
- High-Output 4 W Audio (> 105 dB): Front-firing high-volume speaker allows clear monitoring over engine hum and traffic noise.
- Dual PTT Control: Transmit instantly using either the console front-panel PTT key or the supplied palm microphone.
- Flexible 12–36 V DC Vehicle Power: Compatible with 12 V and 24 V electrical systems, featuring automatic power on/off linked to the vehicle ignition switch (ACC).
- Multi-Constellation Fleet Tracking: High-precision satellite navigation (GPS/GLONASS/Galileo/Beidou) with an included external GPS antenna for reliable real-time tracking.
- Aviation-Style Locking Microphone Jack: Threaded front connector provides a firm, vibration-proof connection in moving vehicles.
Recommended Applications
Logistics, Transport, and Delivery Fleets
Facilitates centralized coordination between drivers and dispatchers with live GPS fleet monitoring and instant group PoC calling.
Emergency Services and Public Safety
Dedicated SOS emergency buttons located on both the front chassis and the hand microphone ensure priority alerting during critical situations.
Heavy Construction, Mining, and Earthmoving Equipment
A broad operating voltage up to 36 V DC, rugged bracket mounting, and 105 dB loud audio deliver dependable performance inside cranes, excavators, and haul trucks.
Fixed Dispatch Stations and Command Centers
Functions effectively as a desktop control station connected via local Wi-Fi networks and continuous DC power supplies.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand and Model | RugGear RG230 |
| Operating System | RG-OS 11 GO |
| Processor | MediaTek MT8766 Quad-Core (4x 2.0 GHz ARM Cortex-A53) |
| Memory | 2 GB RAM + 32 GB ROM (microSD expandable up to 256 GB) |
| Display | 3.5-inch capacitive touchscreen, 480 x 320 pixels |
| Cellular Bands | FDD-LTE: B1/3/5/7/8/20/28A/28B; TDD-LTE: B38/39/40/41; WCDMA: B1/2/5/8; GSM: B2/3/5/8 |
| Wireless Connectivity | Wi-Fi 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz) and Bluetooth 5.0 |
| Satellite Positioning | GPS, A-GPS, Glonass, Galileo, Beidou |
| Audio Output | Integrated 4 W front loudspeaker (> 105 dB SPL) |
| Operating Voltage | 12 – 36 V DC (suitable for 13.6 V ±15% negative ground systems) |
| Hardware Interfaces | LTE antenna port, GPS antenna port, aviation RSM audio port, USB Type-C 2.0 OTG, SIM/microSD slot |
| Dimensions & Weight | 170 x 80 x 85 mm | 380 g |
Key Highlights
- All-in-one 4G LTE and dual-band Wi-Fi PoC mobile communication device for vehicles and dispatch rooms.
- Integrated 4 W front-facing speaker with clear audio output surpassing 105 dB.
- 3.5-inch touchscreen interface complemented by tactile front keys (PTT, Answer, Hang Up, Navigation).
- Emergency SOS buttons located on both the console body and the hand microphone.
- Wide 12–36 V DC input supporting vehicle ignition sensing (ACC wire).
- Industrial aviation-style threaded microphone connector prevents accidental disconnects.
- High-accuracy multi-system satellite positioning with dedicated external GPS antenna.
- Dual power and circuit protection against automotive voltage spikes.
Package Contents
- 1x RugGear RG230 PoC Mobile Device.
- 1x Remote Palm Microphone (RSM) with Keypad and PTT.
- 1x In-Vehicle Mounting Bracket.
- 2x Bracket Mounting Screws.
- 1x External Cellular (LTE) Antenna.
- 1x External GPS Antenna.
- 1x DC Power Harness (Positive, Negative, and ACC lead).
- 1x User Manual.
Frequently Asked Questions
Does the device require a SIM card to operate?
Yes, a standard cellular SIM card inserted into the bottom slot is required for 2G/3G/4G mobile network connectivity. It can also connect via 2.4 GHz or 5 GHz Wi-Fi when deployed at fixed desks or dispatch centers.
Can the device turn off automatically when the vehicle engine is turned off?
Yes, using the three-wire installation (red wire to battery positive, black to ground, and blue wire to the vehicle’s ignition/ACC line), the terminal powers on with the engine and shuts down safely when the ignition is switched off.
What type of audio accessories does it support?
It comes with a heavy-duty palm microphone that locks onto the threaded aviation port, and features Bluetooth 5.0 for wireless headsets, speaker microphones, and remote PTT units.
