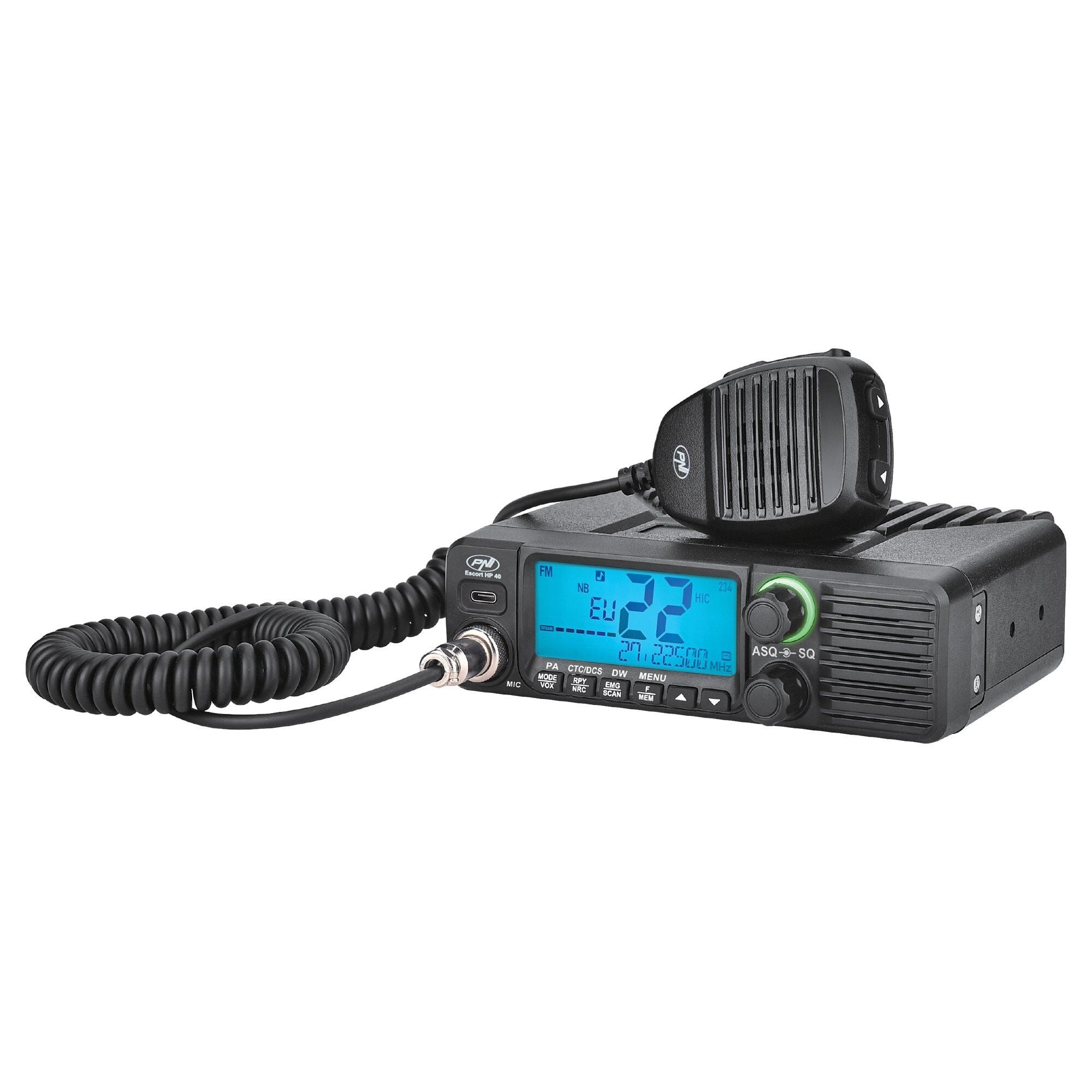

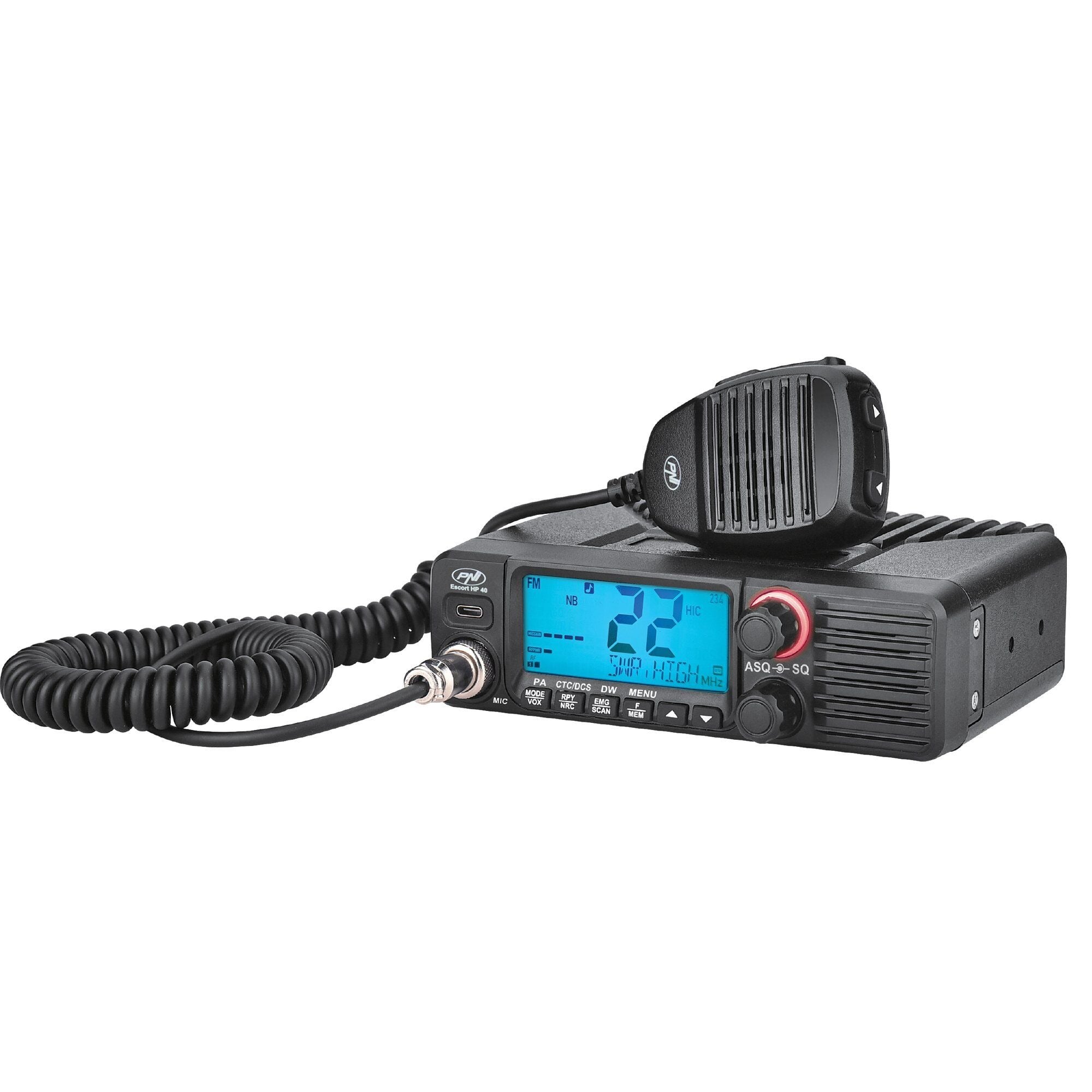

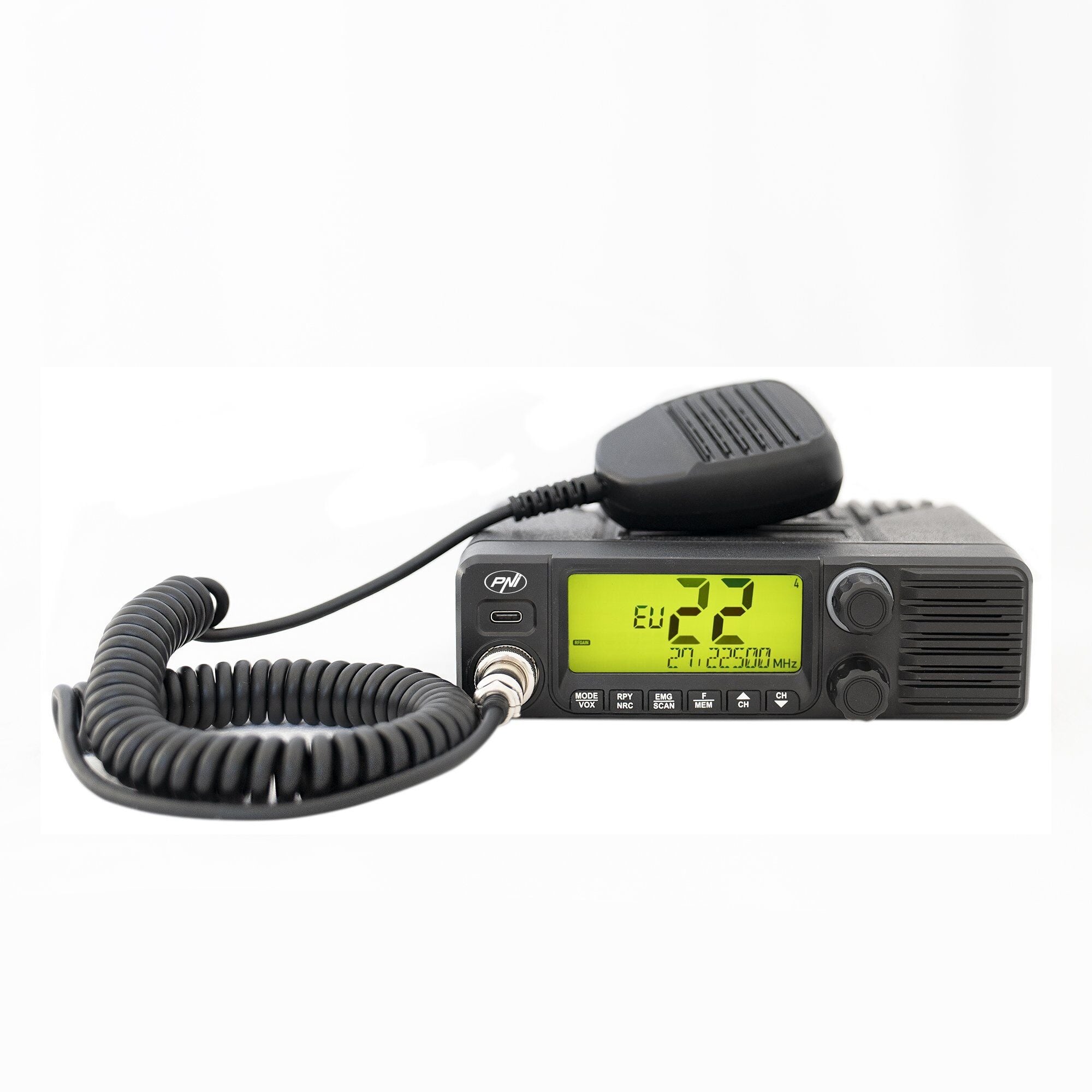

The PNI Escort HP 40 CB mobile radio (PNI HP40 Series) is a commercial-grade, multi-standard vehicular communication terminal precision-engineered to deliver secure, high-integrity voice synchronization across multinational transport networks. Equipped with an advanced multi-norm firmwire infrastructure, this highly versatile Multi-Standard CB Radio Station allows long-haul drivers to instantly select the legal and appropriate operating standard for the specific country they are visiting. This capability is essential for legal and optimal operation of the radio in diverse regions across Europe, the UK, Poland, and Germany. It serves as an essential logistics procurement asset for international freight operators, commercial fleet managers, and high-volume B2B radiocommunication accessory wholesale distribution networks looking to stock adaptable, deployment-ready mobile rigs.
The advanced internal RF core of the PNI HP40 operates within the standard 26.965 to 27.405 MHz band, utilizing 40 channels structured into diverse multinational layout configurations, including 40 EU, 40 PL, 80 DE, 40 EC, 40 UK + 40 CEPT, and 27 IN. Designed with a flexible dual-stage power distribution network, the transceiver accepts an input voltage of both 13.8 V and 27.6 V DC, providing native dual-voltage compatibility with 12 V or 24 V vehicle electrical systems without the need for external voltage drop transformers. The receiver circuit is engineered around a high-tier double-conversion superheterodyne system, yielding an approximate sensitivity threshold of 110-114 dBm (110 dBm for 20 dB SINAD in AM / 114 dBm for 20 dB SINAD in FM) to hook weak signals from extreme distances, backed by an impressive audio output engine delivering up to 3 W of clear, maximum audio into an 8 Ω line.
The PNI HP40 CB stands out for its complex functionality and extensive, user-centric features. Operators can effortlessly switch between AM and FM transmission modes depending on their current regional standard, while an automatic channel scanning module provides rapid identification of active communications along the road. The system integrates a Dual Watch matrix for the simultaneous monitoring of two separate channels alongside an adjustable automatic squelch (ASQ) function designed to eliminate unwanted background noise and static interference. For driver convenience, a front panel key lock function prevents accidental setting modifications under heavy cabin vibrations, while the high-contrast backlit screen provides real-time tracking data regarding channel status, active functions, and signal strength.

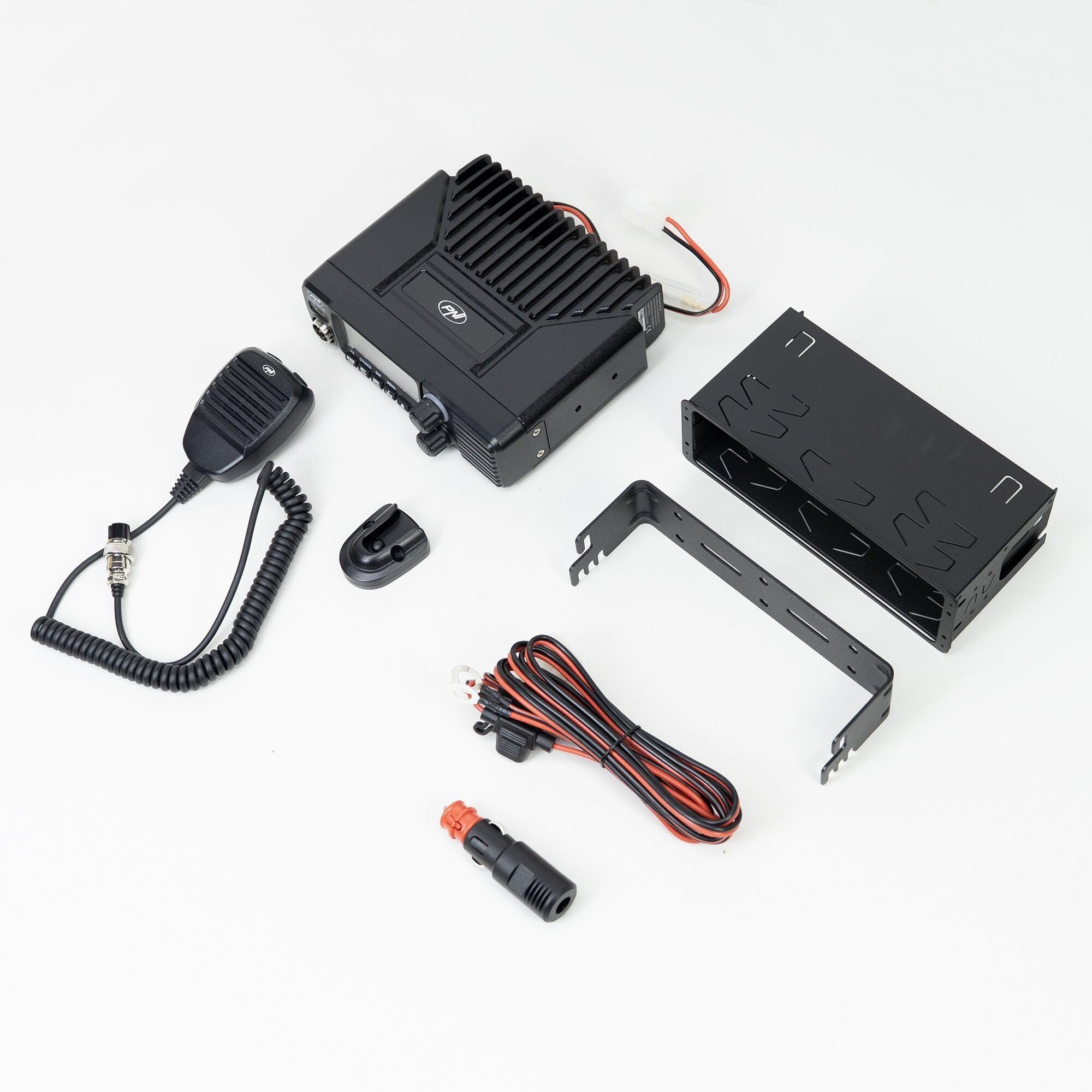

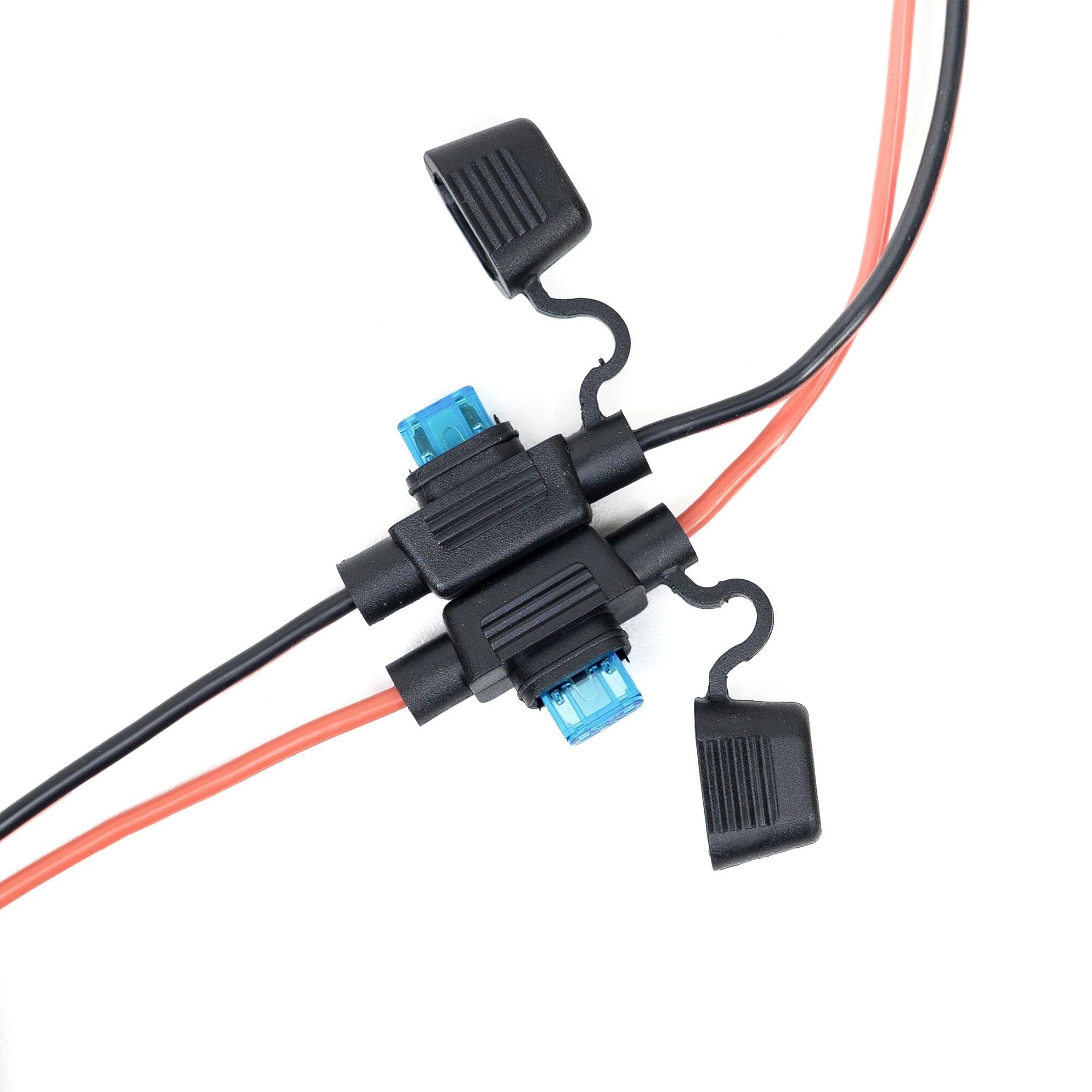

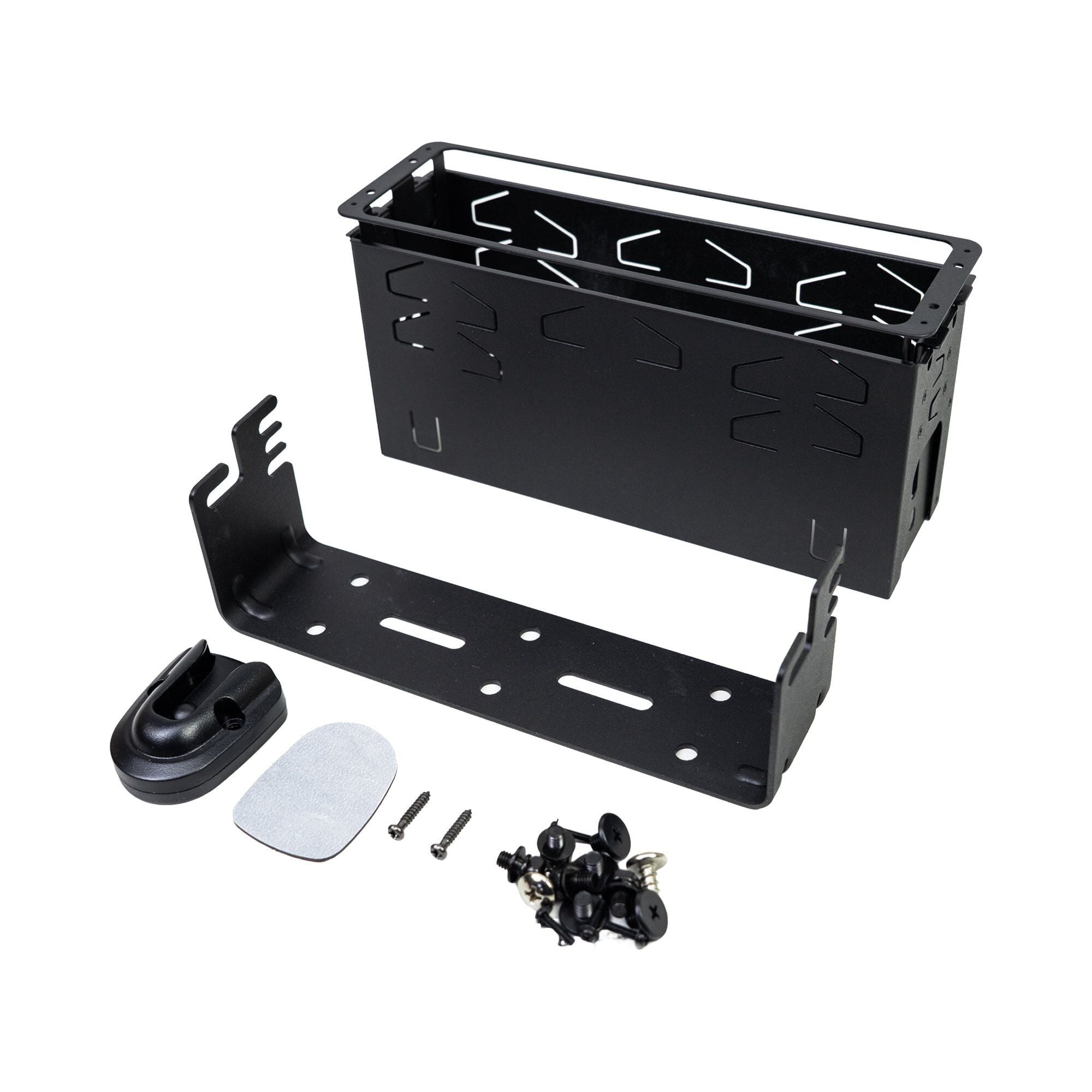

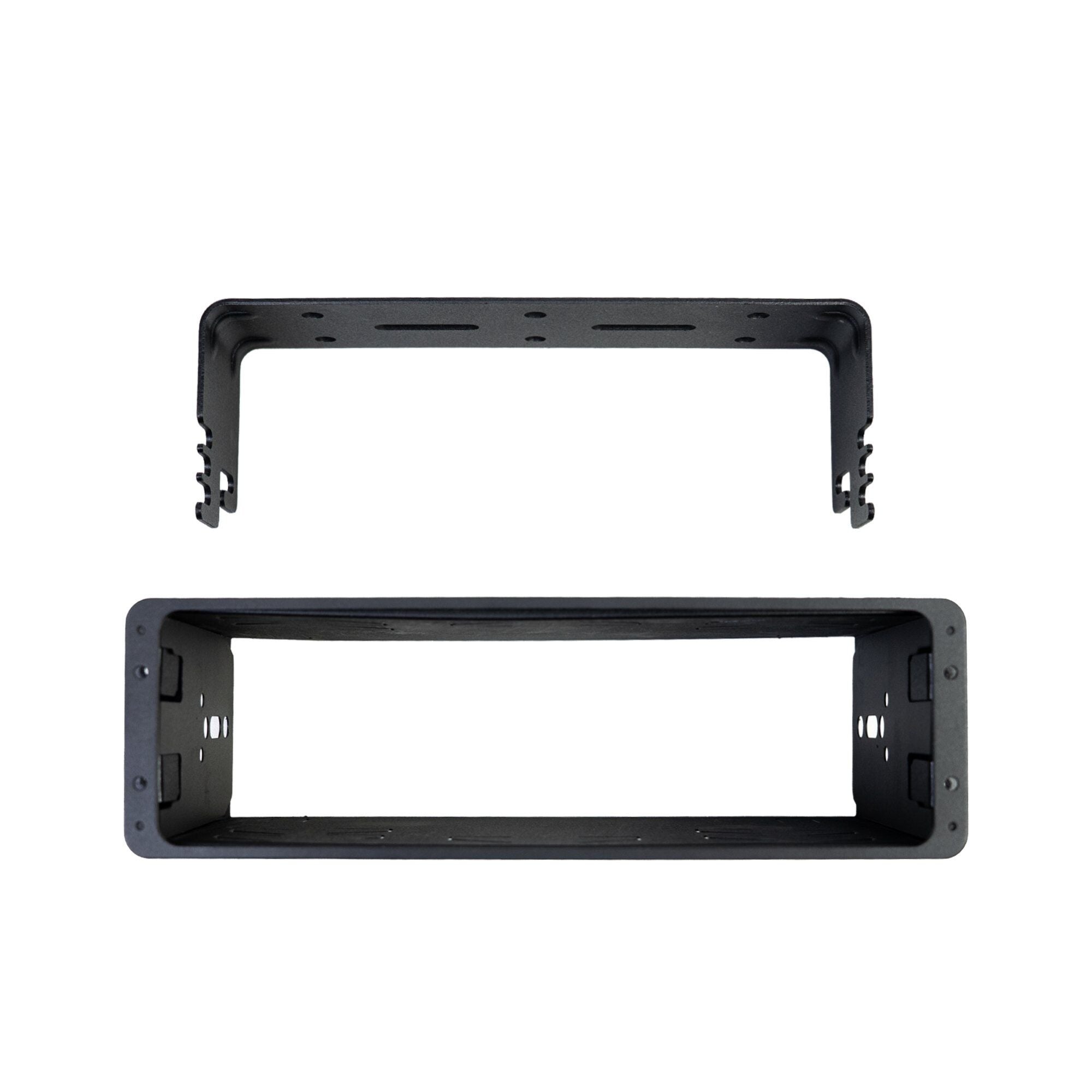

To support high-level workspace customization, the radio features an Advanced Settings Menu that gives operators direct access to change deep technical variables to match personal preferences. Through this internal menu, users can calibrate critical parameters such as the ASQ threshold sensitivity, VOX (Voice Operated Exchange) activation thresholds, VOX Level timing, and RF Gain levels to fine-tune receiver sensitivity in high-congestion urban grids. Delivering a legal transmission power of 4 W in both AM and FM modes with modulated signal distortion kept below 5% at 1 kHz, this 170 x 50 x 140 mm transceiver kit comes ready for immediate multi-shift deployments. The turnkey retail bundle includes the radio transmitter, premium microphone, high-retention structural mounting brackets with screws, a dedicated power cable, a heavy-duty 16A cigarette lighter adapter, and a detailed user manual.
| Technical Specification Parameter | Specifications |
|---|---|
| Product Brand Designation | PNI (Original Factory Commercial Mobile Radio Line) |
| Hardware Model Designation | Escort HP 40 / HP40 Multi-Norm Transceiver |
| Primary Component Classification | Mobile Multi-Standard CB Citizen Band Two-Way Radio |
| System Operational Frequencies | 26.965 MHz to 27.405 MHz Citizen Band Spectrum Allocation |
| Total Active Channel Matrix | 40 Multinational AM / FM Operating Channels |
| Regional Hardware Configurations | 40 EU / 40 PL / 80 DE / 40 EC / 40 UK + 40 CEPT / 27 IN |
| Operating Emission Modes | F3E (FM Mode Transmission) / A3E (AM Mode Transmission) |
| RF Transmitter Power Output | 4.0 Watts (4 W) Continuous Carrier Output on Both Modes |
| Modulation Scaling Parameters | AM: 80% Peak Depth / FM: 1.9 kHz Peak Deviation Deviation |
| Receiver System Architecture | Double-Conversion Superheterodyne (1st IF: 10.695 MHz / 2nd IF: 455 kHz) |
| Acoustic Output Performance | 3 Watts (3 W) Max Audio Output Power targeted into 8 Ω Loads |
| Total Audio Distortion Indices | Less than 5% (< 5%) Distortion measured at 1 kHz Reference Tone |
| Receiver Sensitivity Parameters | AM: 110 dBm for 20 dB SINAD / FM: 114 dBm for 20 dB SINAD |
| Selectivity and Rejection Ratios | Image Rejection: > 70 dB / Adjacent Channel Rejection: > 60 dB |
| System Antenna Port Impedance | 50 Ohms (Ω) Nominal Unbalanced Line Match |
| Nominal Supply Input Power | Dual Auto-Sensing Voltage Support: 13.8 V and 27.6 V DC Lines |
| Current Consumption Metrics | RX: 300 mA to 0.8 A (Vol Max) / TX: 3.5 A Max at 4 W Power Stage |
| Operational Ambient Climates | Extreme Temperature Parameters: -26 °C up to +80 °C Multi-Season Calibration |
| Total Physical Frame Dimensions | 170 mm (W) x 50 mm (H) x 140 mm (D) Dashboard Clearance |
| Verified Hardware Compatibility Scope | 50-ohm CB mobile antennas, external speaker units, 12V automotive networks, 24V commercial trucking setups, and standard 6-pin PNI accessories |
| Primary Fleet Utility Purpose | Turnkey multi-country transport outfitting, real-time route coordination tracking, cabin noise reduction, and transmitter final stage circuit protection |
Multi-Standard CB Radio Station
The PNI HP40 is a CB radio designed for flexible use and compatibility with regulations in various countries.
The radio features a special function that allows the user to select the appropriate operating standard for the country they are visiting.
This is essential for legal and optimal operation of the radio in diverse regions, such as Europe, the UK, Poland, and Germany.
Complex Functionality
The PNI HP40 CB radio stands out for its comprehensive set of features, such as: switching between AM and FM transmission modes, depending on the selected standard; automatic channel scanning for quick identification of active communications; Dual Watch for simultaneous monitoring of two channels; and an adjustable automatic squelch function to eliminate unwanted noise.
The radio also features a key lock function, useful for preventing accidental changes to settings, as well as visual information on the screen regarding channel status, active functions, and signal strength.
Advanced Settings Menu
The PNI HP40 CB radio has a menu that gives the user access to numerous additional settings to customize its operating mode.
Through this menu, parameters such as ASQ, VOX, RF Gain, VOX Level, and other operating options can be adjusted.
The user can select auxiliary functions and configure the station according to their personal preferences.
Features
The PNI HP40 CB radio operates in the 26.965 to 27.405 MHz band, with 40 channels compatible with multinational standards and AM and FM transmission modes. It is powered by either 13.8 V or 27.6 V DC, making it suitable for vehicles with 12 V or 24 V systems. Reception is ensured by a double-conversion superheterodyne system, with an approximate sensitivity of 110-114 dBm and audio output of up to 3 W. Transmission offers a transmission power of 4 W in both modes, with distortions of less than 5%.
