The premium Moonraker AMPRO-40HP (600W) 40M HF Mobile Antenna – This high-power AMPRO mobile antenna features a 135 cm main base and a 100 cm rod with ferrule, providing nearly 2.4 meters of antenna length. is a commercial-grade, heavy-duty mobile transmission line precision-engineered to deliver secure voice synchronization, high-power long-range tracking capabilities, and professional circuit line conditioning across active High Frequency (HF) channels. Designed as an elite single-frequency radiator to overhaul standard low-power thin-diameter patches that distort or fail under high-wattage outputs, this top-tier mobile mast stands as an essential operational procurement asset for long-distance transport fleets, emergency disaster response vehicles, tactical field backup stations, and high-volume B2B radiocommunication hardware wholesale networks looking to source original factory-certified active components.
The core electrical engineering of this high-compliance hardware system relies on an advanced helical-wound mobile antenna topology strictly optimized for a target operational frequency: 7 MHz baseline, capturing the entire 40-meter horizontal wave passband. Built to handle standard tracking configurations safely without inducing thermal breakdown, it boasts a massive forward power: 600 W power handling capability. The electrical architecture provides a stable bandwidth: 60 kHz tracking block with a nominal matched SWR: 1.5:1 or better baseline curve, ensuring maximum radiation efficiency and low insertion losses while protecting expensive mobile transceivers from reverse-power circuit damage.

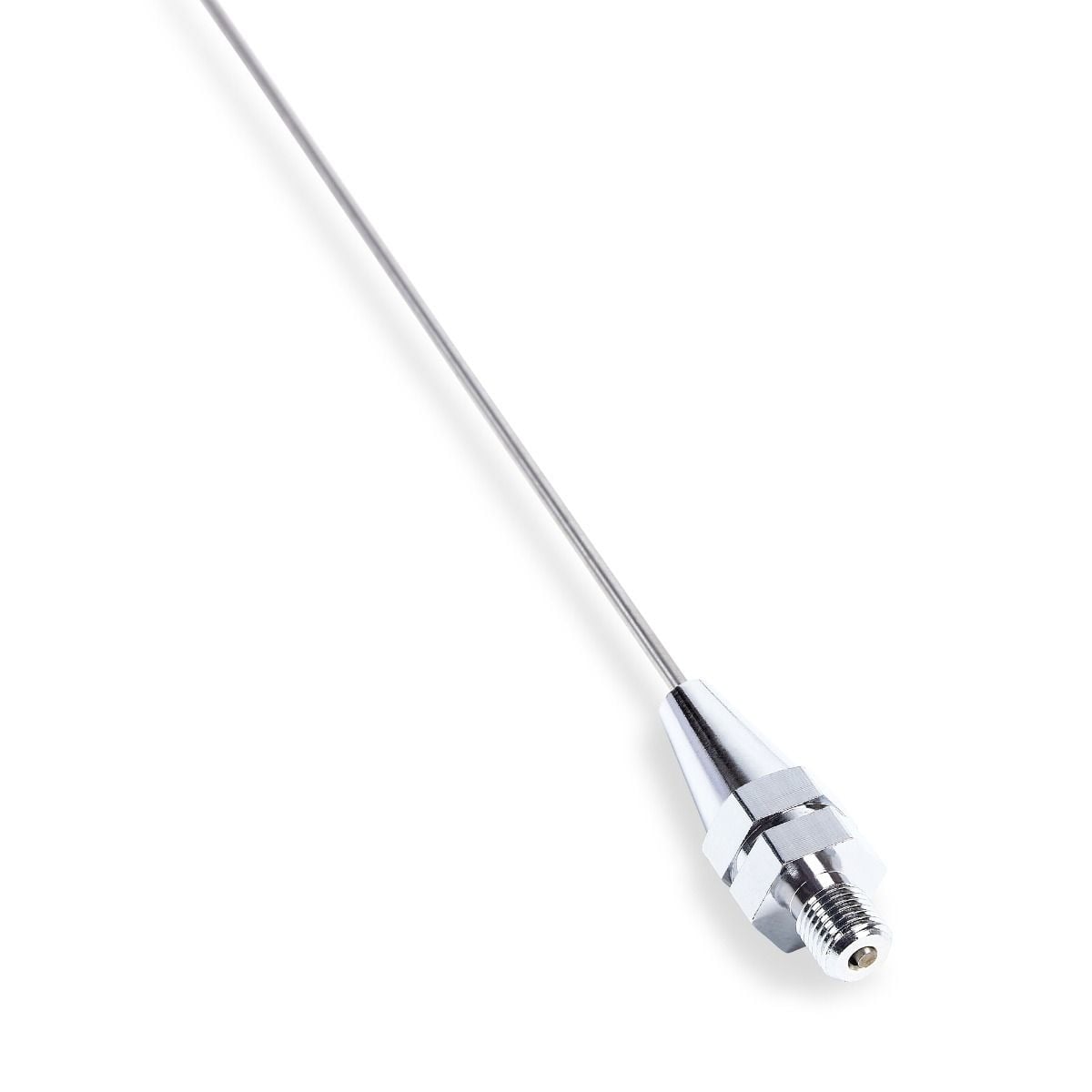

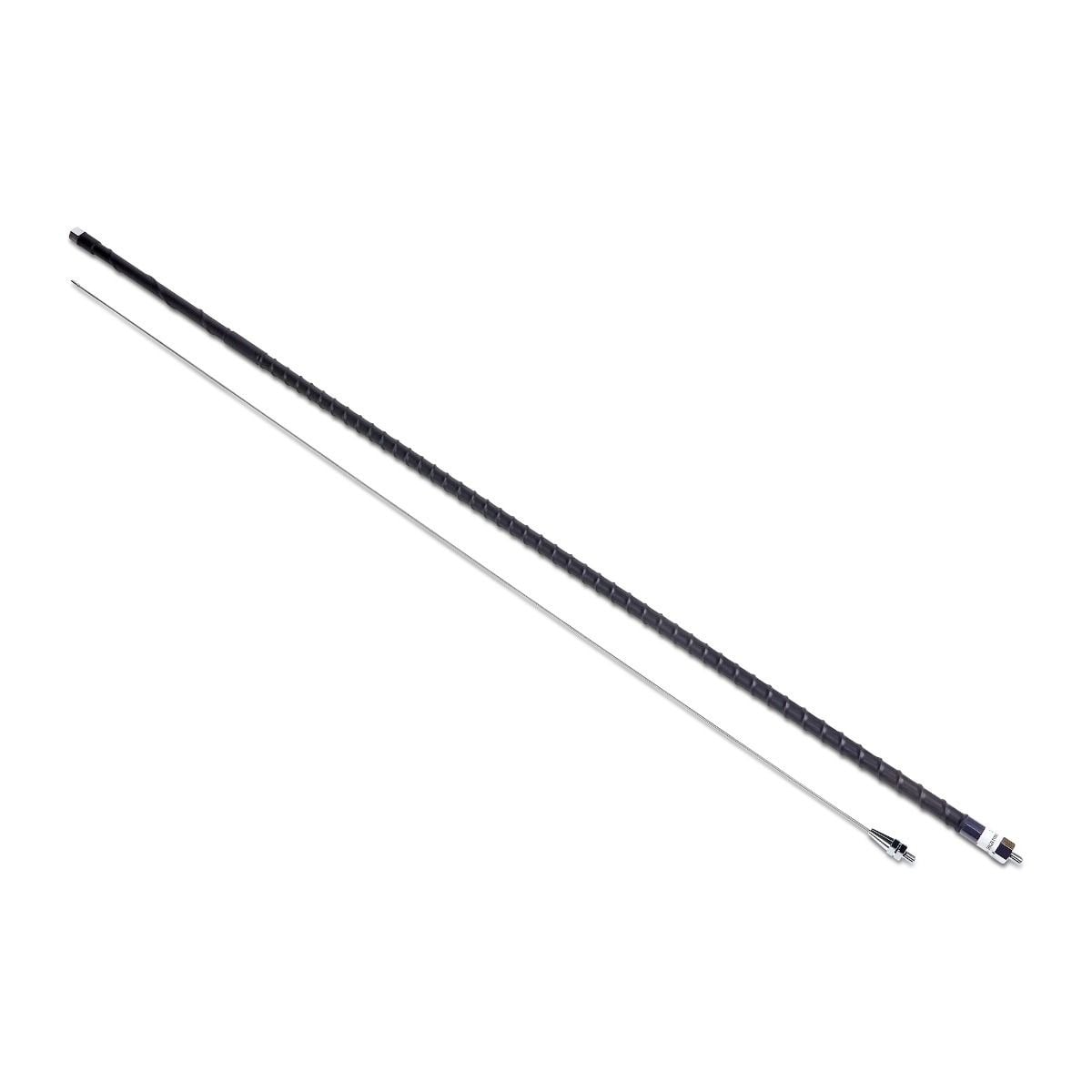

Constructed to survive severe environment stress lines, extreme multi-season weather fatigue, and high vehicular velocities, the assembly combines a 135 cm extra-wide semi-rigid fiberglass section with a 100 cm adjustable stainless steel whip, achieving a total extended length: 245 cm footprint. This specialized rigid layout eliminates the need for physical springs or tensioners on vehicle mounts. The entire structure is wrapped in a specialized black anti-static cover that insulates the internal charging coil from localized static bleed, while chrome-plated brass connections and high-flexibility steel rods maintain physical durability across a low net structural weight of only 600 g.

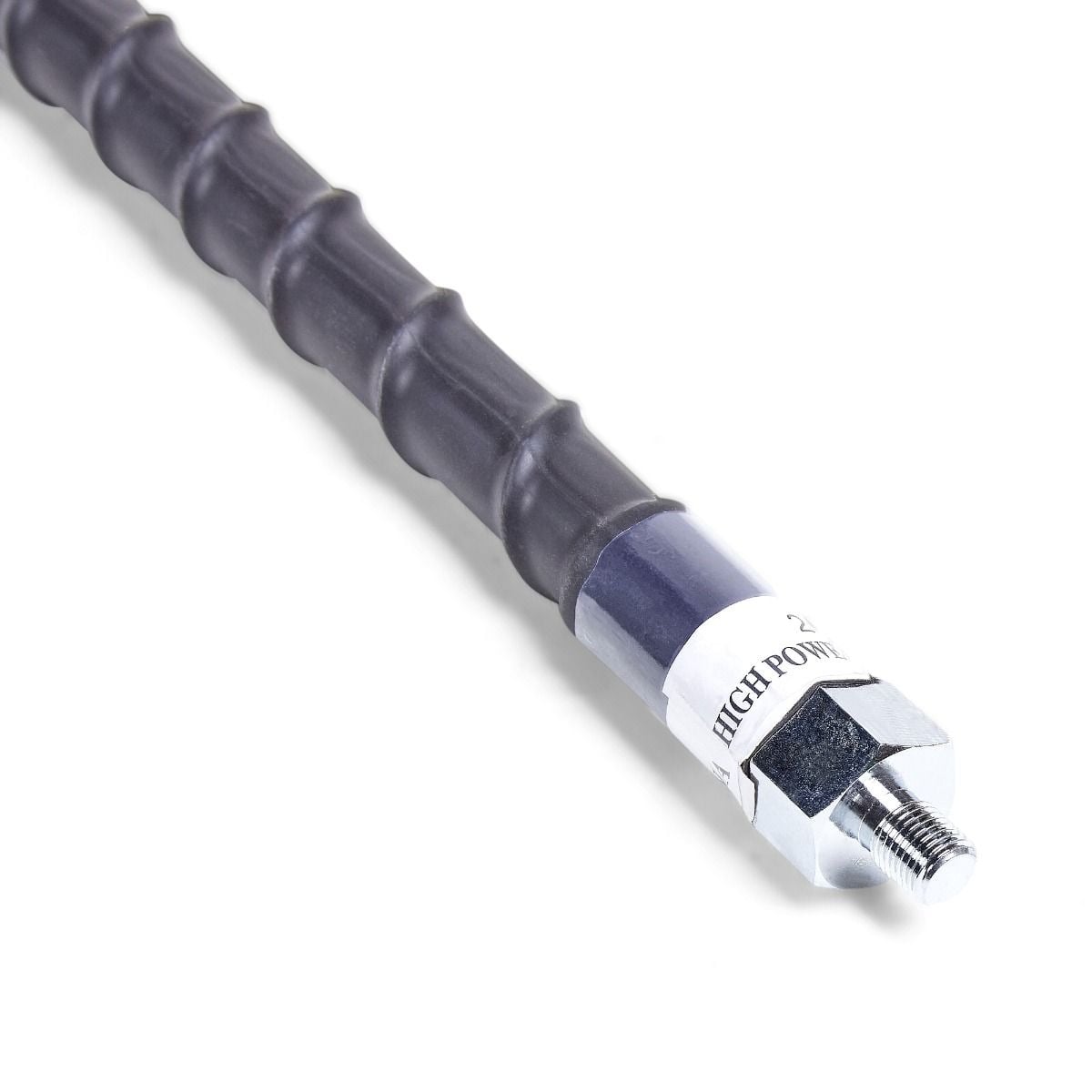

To ensure immediate out-of-the-box field deployment readiness, the feedpoint terminates in a industry-standard high-retention connection: 3/8″ threaded base. This mechanical configuration allows for quick and easy removal from your vehicle bracket lips, bumper clamps, or heavy magnetic bases when transitioning between deployment terminals. Pre-engineered to deliver the height and power needed for the best single-frequency mobile tracking runs, this turnkey antenna component provides absolute operational readiness for your workforce communications pipeline.
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Product Brand Designation | Moonraker (Original Factory Genuine High-Performance Electronics Line) |
| Hardware Model Designation | AMPRO-40HP / AMPRO 40 HP Heavy-Duty Mobile Series |
| Primary Component Classification | High-Power Monoband HF Mobile Transceiver Whip Antenna |
| Active Operational Frequency | 7 MHz Resonant Target Center (Dedicated 40-Meter HF Band Pass Allocation) |
| Antenna Radiation Wave Type | Helical-Wound Loading Coil Configuration Matrix |
| Rated Power Handling Capacity | 600 Watts (600W) PEP Continuous Transmission Load Limit |
| Voltage Standing Wave Ratio Efficiency | VSWR Matched 1.5:1 or Better Curve Profile across Target Frequency |
| Operational Resonance Bandwidth | 60 kHz Continuous Impedance Passband window |
| System Characteristic Impedance | 50 Ohm Nominal RF Link Standardization Profile |
| Primary Base Connection RF Port | Standardized 3/8-24 Threaded Mechanical Quick-Disconnect Fastener Base |

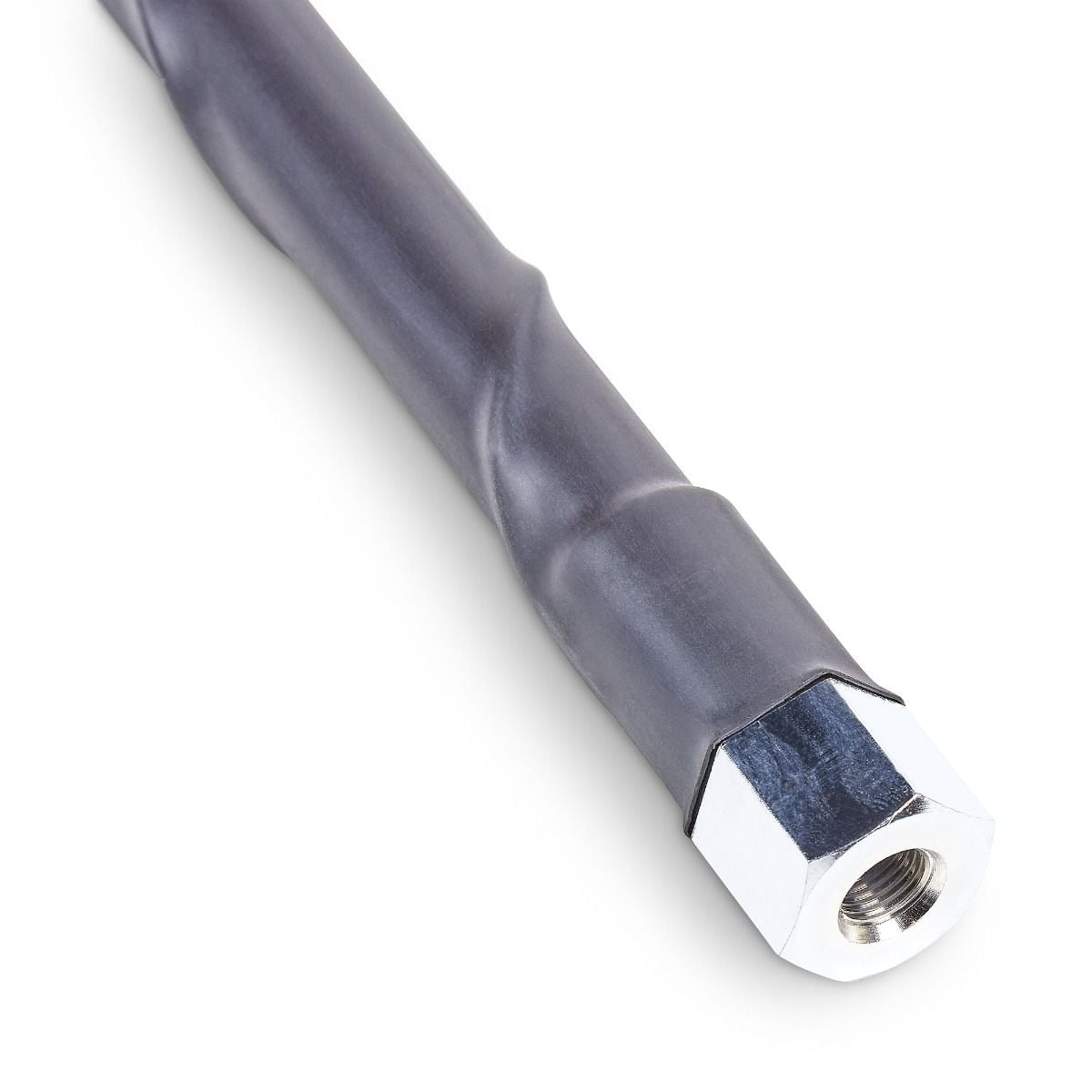

| Structural Section Segment Breakdowns | • Lower Base Segment: 135 cm Extra-Wide Semi-Rigid Fiberglass Section • Upper Radiator Segment: 100 cm High-Flexibility Stainless Steel Rod Whip with Ferrule |
| Total Assembled System Length | 245 cm (Nearly 2.4 Meters) Extended High-Clearance Footprint |
| Net Operational Hardware Mass | 600 grams Ultra-Lightweight Low-Torque Structural Frame |
| Coil Isolation Environmental Shielding | UV-Stabilized Black Anti-Static Protective Sleeveline Housing Matrix |
| Coupling Interface Hardening | Corrosion-Resistant Heavy Chrome-Plated Solid Brass Mechanical Connections |
| Verified Hardware Compatibility Scope | Heavy-duty 3/8-24 threaded vehicular mounts, triple magnetic bases, trunk lid/gutter brackets, mobile HF transceivers, antenna tuning units (ATU), and RF line analyzers |
| Primary Fleet Utility Purpose | Turnkey high-power mobile outfitting, long-range field tracking stabilization, structural signal tracking conditioning, and transmitter amplifier power stage protection |
