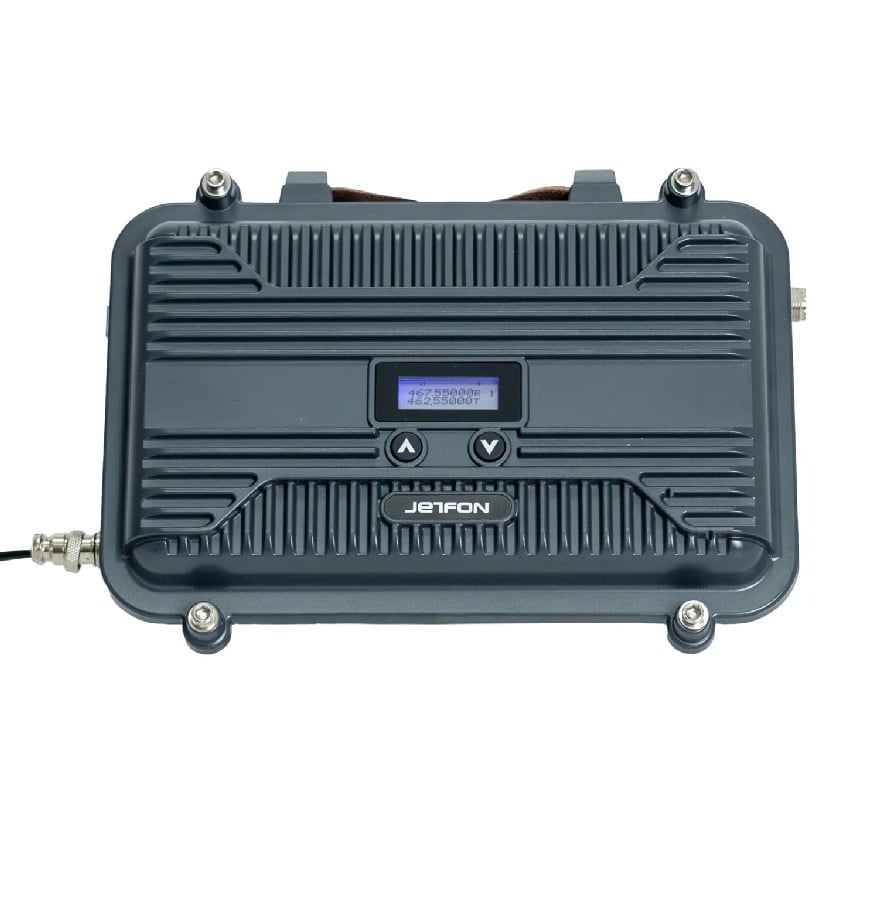

The Jetfon RPT-U10 is a high-power UHF repeater designed to deliver extended coverage and stable communications even in demanding environments. Its compact and durable design provides reliable operation against dust, wind and other adverse conditions.
Equipped with a pre-installed internal duplexer, the RPT-U10 operates in full-duplex mode using a single antenna, greatly simplifying installation. It also supports high-gain external antennas, allowing users to optimize range according to their communication needs.

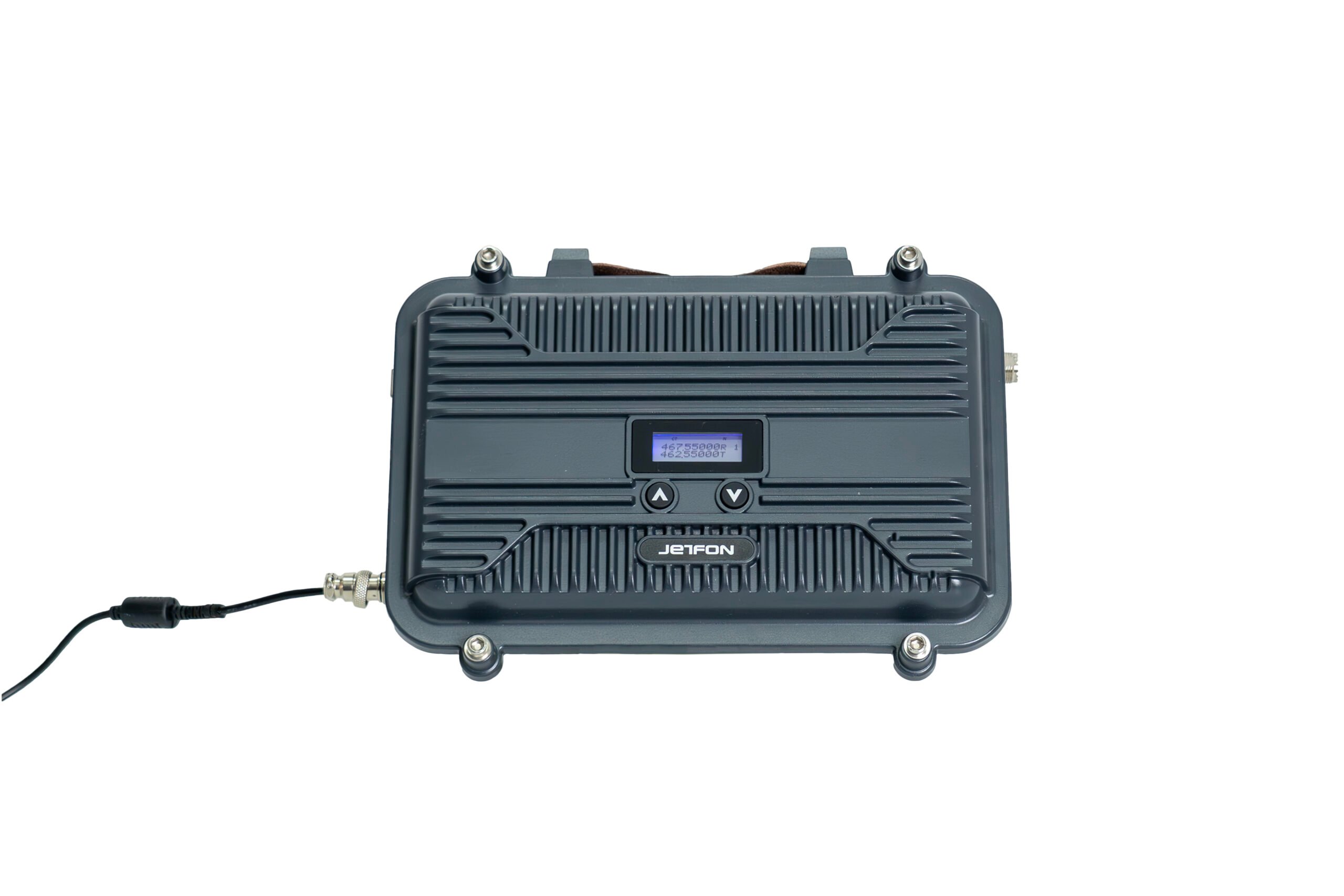

With versatile power options — via a 220 V AC adapter or a 12–24 V DC vehicle connection — the RPT-U10 is suitable for both fixed and mobile installations. The integrated LCD display makes configuration and monitoring straightforward.
Combining solid performance, easy installation and dependable durability, the Jetfon RPT-U10 is an ideal solution for expanding professional communication networks in businesses, industrial facilities, events, security operations and other critical environments.
FEATURES
- Small and compact design repeater
- Simple and convenient installation, flexible operation
- Rugged design to prevent dust and other adverse conditions
- Multiple power options via AC/DC power adapter or vehicle power cable to meet your needs
- Optional antenna can be selected according to the actual needs
TECHNICAL SPECIFICATIONS
GENERAL:
- Operating frequency range: 400 – 480 MHz (According to the country of use)
- Channels no.: 16
- Channel separation: 12.5 kHz/25 kHz
- Modulation: FM (F3E)
- Frequency stability: ±2.5 ppm
- Operating voltage: 12 VDC – 24 VDC
- AC/DC power supply: Model: DSA-60PFE-12 1 120500. Input: 100-240 VAC, 50/60 Hz, 2 A. Output: 12 VDC, 5 A, 60 W
- Operating temperature: -20 ºC ~ +55 ºC
- Antenna impedance: 50 Ω
TRANSMITTER:
- Transmission output power: 10 W/5 W
- Maximum deviation: ±2.5 kHz/±5 kHz
- Adjacent channel power: ≤-60 dB
- Spurious emissions: ≥60 dB
- FM noise: ≤40 dB
- Distortion: ≤5 %
RECEIVER:
- Sensitivity (12 dB SINAD): ≤6 dBµV
- Squelch sensitivity: ≤0.2 µV
- Adjacent channel selectivity: ≥65 dB
- Image frequency rejection: ≥55 dB
- Intermodulation: ≥55 dB
- Spurious radiation: ≥60 dB
- FM Hum & noise: ≤45 dB
- Distortion: ≤5 %
CONTENT
- JETFON RPT-U10 repeater
- AC/DC power supply
- AC power cable
- DC power cable
- Programming cable
- Instruction Manual
