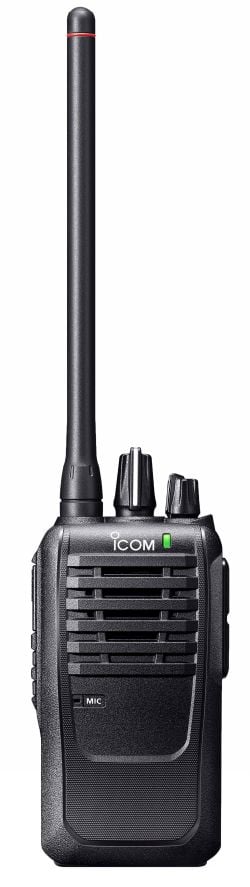

The Icom IC-F3002 is a professional VHF analog handheld transceiver engineered for dependable, clear, and straightforward voice communications across commercial, industrial, and public safety environments. Built with a compact, displayless chassis to maximize structural integrity against impacts and heavy daily use, it features an IP54-rated enclosure that protects against dust ingress and splashing water, ensuring reliable operation in harsh weather conditions and demanding outdoor settings.
Equipped with a 16-channel rotary selector and programmable side keys, the radio comes standard with extensive signaling systems including 2-Tone, 5-Tone, CTCSS, DTCS, and MDC 1200 (PTT ID and emergency signaling). It delivers strong audio output for noisy workspaces, full compatibility with hands-free VOX operation via optional adapters, and built-in lone worker and emergency functions designed to enhance user safety on the job.
Key Advantages
- IP54 Dust and Splash Protection: Sealed housing engineered to withstand harsh jobsite environments, rain showers, and dusty industrial facilities.
- Comprehensive Tone Signaling: Built-in 2-Tone and 5-Tone encoder/decoder for selective calling, group addressing, and remote radio stun, kill, and revive commands.
- MDC 1200 Capability: Transmits unit ID (PTT ID) and priority emergency calls to dispatch systems.
- Worker Safety Features: Dedicated Emergency button and programmable Lone Worker function that triggers automated alarms if the radio is inactive for a preset period.
- Hands-Free VOX Ready: Supports voice-activated transmission with 10 sensitivity adjustment levels when paired with optional headsets and adapter cables.
- Flexible Battery Support: Works with Li-ion and Ni-MH rechargeable battery packs, as well as an optional dry cell case for 6 standard AA batteries.
Recommended Applications
Private Security and Event Management
Selective 5-Tone and MDC 1200 signaling allow discrete coordination among teams without broadcasting unnecessary chatter across shared channels.
Construction, Mining, and Heavy Industry
A rugged, screen-free body combined with IP54 sealing ensures long-lasting durability when handled with work gloves in abrasive environments.
Warehousing, Logistics, and Manufacturing Plants
The Lone Worker mode provides extra protection for technicians and night-shift personnel operating in isolated sections of the facility.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand and Model | Icom IC-F3002 (European Version) |
| Frequency Band | VHF (136 – 174 MHz depending on attached antenna) |
| Number of Channels | 16 channels selectable via top rotary knob |
| Signaling Systems | CTCSS, DTCS, 2-Tone, 5-Tone, DTMF, and MDC 1200 |
| Channel Spacing | Wide (20 / 25 kHz) and Narrow (12.5 kHz) |
| Environmental Rating | IP54 (dust-tight and splash-resistant when jack cover and battery are attached) |
| Safety Features | Emergency Call, Lone Worker, Siren, and Surveillance Mode |
| Operating Temperature | -25 °C to +55 °C |
| Squelch Levels | Adjustable across 10 steps (0 to 9) |
| Audio Accessory Jack | 2-pin side connector with screw-secured jack cover |
Key Highlights
- Rugged 16-channel VHF commercial analog handheld transceiver.
- IP54 dust-tight and splash-resistant sealed casing.
- Built-in 5-Tone selective calling and MDC 1200 PTT ID capability.
- Worker protection with Emergency alert and Lone Worker modes.
- Selectable High/Low RF output power levels to manage battery consumption.
- Integrated VOX capability with 10 adjustable sensitivity steps.
- Adjustable internal microphone gain levels.
- Remote Stun, Kill, and Revive security commands.
Package Contents
- 1x Icom IC-F3002 VHF Handheld Transceiver.
- 1x Flexible VHF Antenna.
- 1x Belt Clip (MB-124).
- 1x Jack Cover with mounting screws.
- 1x Instruction Manual.
- Note: Battery pack, desktop charger, and AC adapter may vary or be supplied separately depending on the package version.
Frequently Asked Questions
Can I use both Li-ion and Ni-MH batteries with this radio?
Yes, the IC-F3002 supports Li-ion packs (such as BP-265), Ni-MH packs (BP-264), and the optional BP-263 alkaline battery case for 6 AA cells. The battery chemistry mode can be calibrated during power-on for accurate low-battery warnings.
How does the Lone Worker function work?
When enabled, if the radio is not operated within a preset countdown period, it emits a pre-alert tone. If the user does not press a key to reset the timer, the radio automatically initiates an emergency transmission.
Is this radio waterproof?
The IC-F3002 is rated IP54, making it resistant to dust and water splashes such as rain when properly sealed with its battery, antenna, and jack cover installed. It is not submersible.
