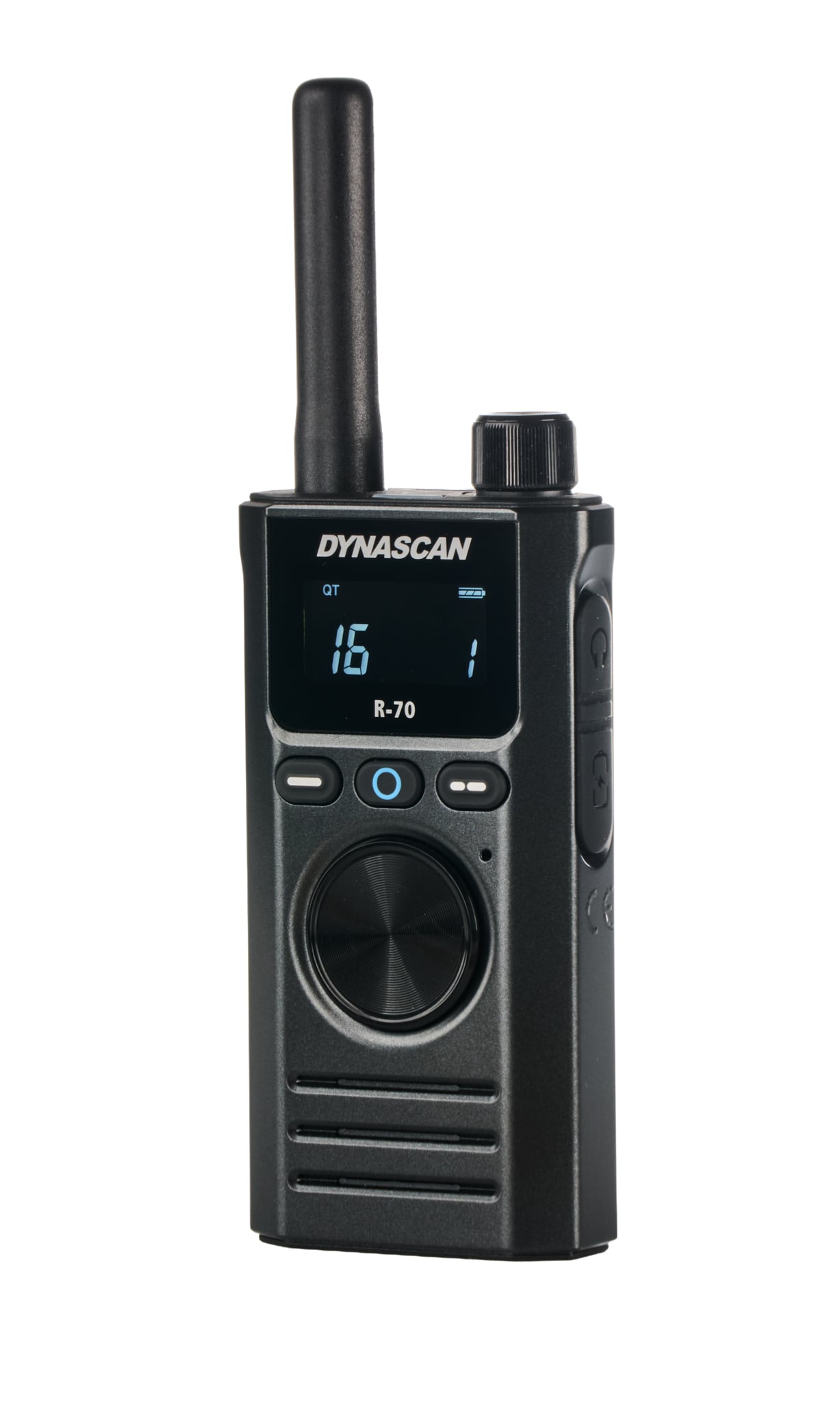

The Dynascan R-70 handheld transceiver is a reliable, professional communication solution operating on the licence-free PMR-446 band, requiring no administrative permits or user fees across European Union countries. Supplied as a complete two-unit twin pack, it combines an ultra-compact, ergonomic body with a rugged chassis and a clear, high-contrast backlit LCD screen, making it ideal for hospitality, retail, warehouse operations, event coordination, and logistics.

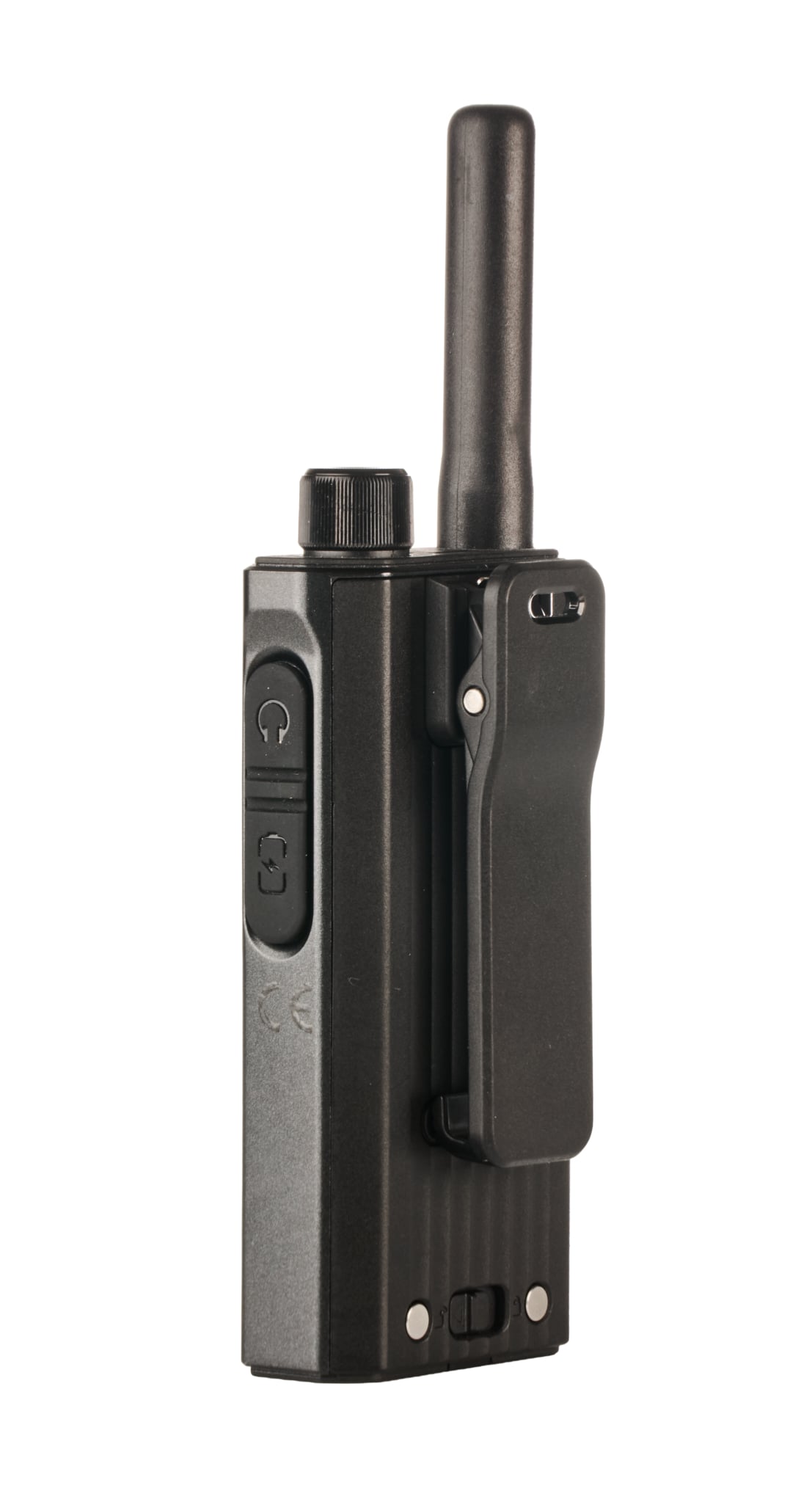

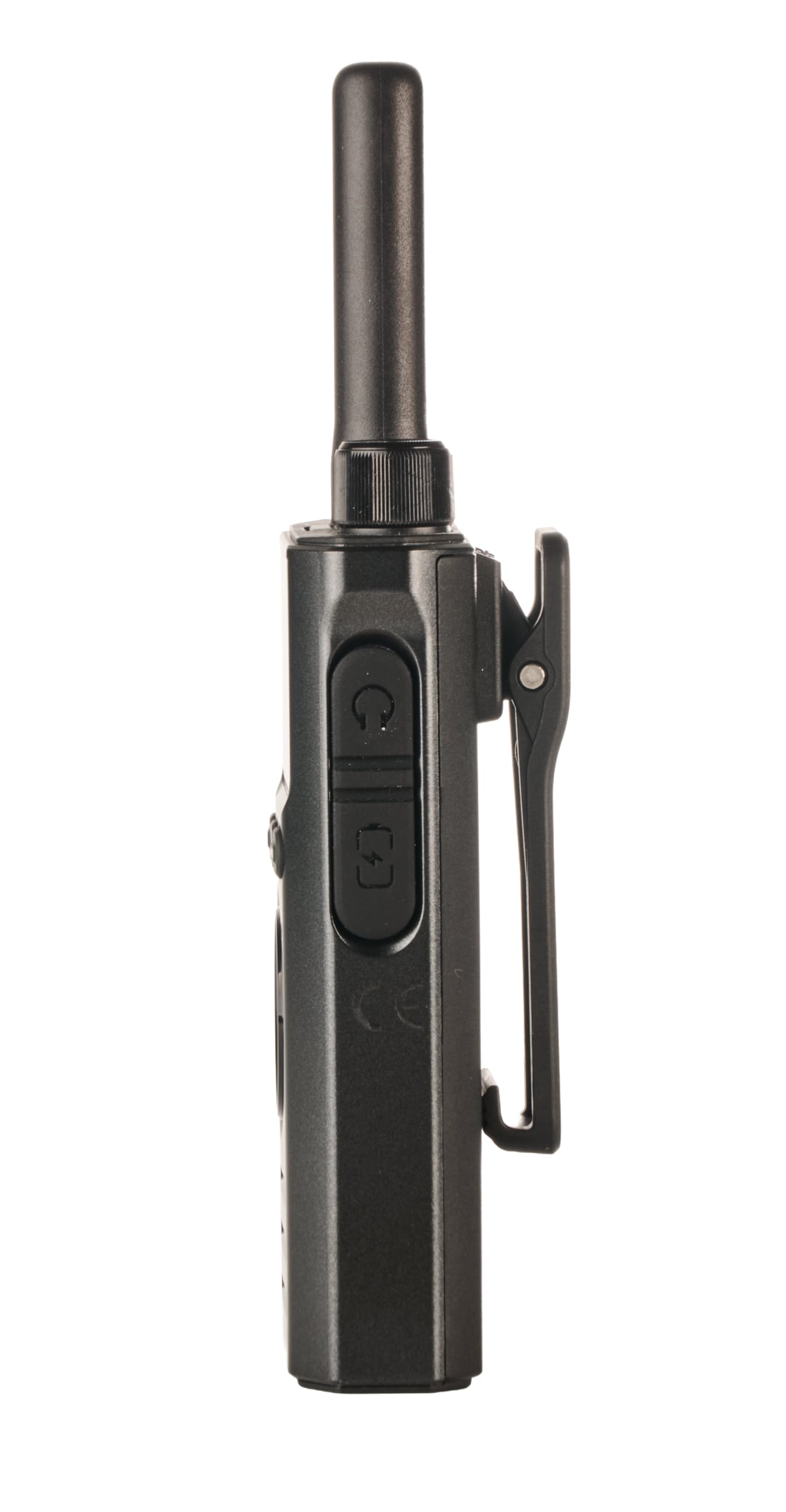

Designed for fast and instinctive field operation, the R-70 features an innovative dual PTT system (a side-mounted PTT key and a large, accessible front-face PTT button) for immediate transmission from any grip. It includes 16 operational channels, selectable analog QT and digital DQT sub-tones to prevent third-party co-channel interference, and an integrated audio Compander that filters out ambient background noise. Each radio is powered by a 3.7 V / 1000 mAh Li-Ion battery pack delivering up to 12 hours of operating autonomy, with the flexibility of charging via the included individual desktop cradles or directly through its dust-protected USB Type-C port.
Recommended Applications
Hospitality, Dining, and Retail
Slim profile, a light weight of just 200 g, and compatibility with single-pin headsets enable discrete, fatigue-free coordination between floor staff, cashiers, and management.
Logistics, Warehousing, and Distribution
The dual PTT layout (side key and central front button) allows rapid communication even when wearing work gloves or handling inventory.
Event Management and Facility Security
Advanced operational tools such as built-in voice scrambling, hands-free VOX/iVOX voice activation, and over-the-air cloning streamline fleet setup and secure group communications.
Why Choose the Dynascan R-70?
The Dynascan R-70 brings advanced enterprise-grade features into a lightweight form factor. It includes automatic wireless frequency and sub-tone matching, a programmable Time-Out Timer (TOT) to prevent channel jamming, a Roger Beep call end tone, and a dedicated, sealed USB-C charging port that allows users to recharge on the move using standard USB power sources or power banks without needing a bulky desktop dock.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand and Model | Dynascan R-70 |
| Frequency Range | 446.00625 MHz – 446.19375 MHz (PMR-446) |
| Channel Capacity | 16 channels |
| Channel Spacing | 12.5 kHz (Narrow) |
| RF Output Power (E.R.P.) | 0.5 W |
| Sub-audio Signaling | Analog (QT) and Digital (DQT) selectable |
| Display | High-visibility backlit LCD |

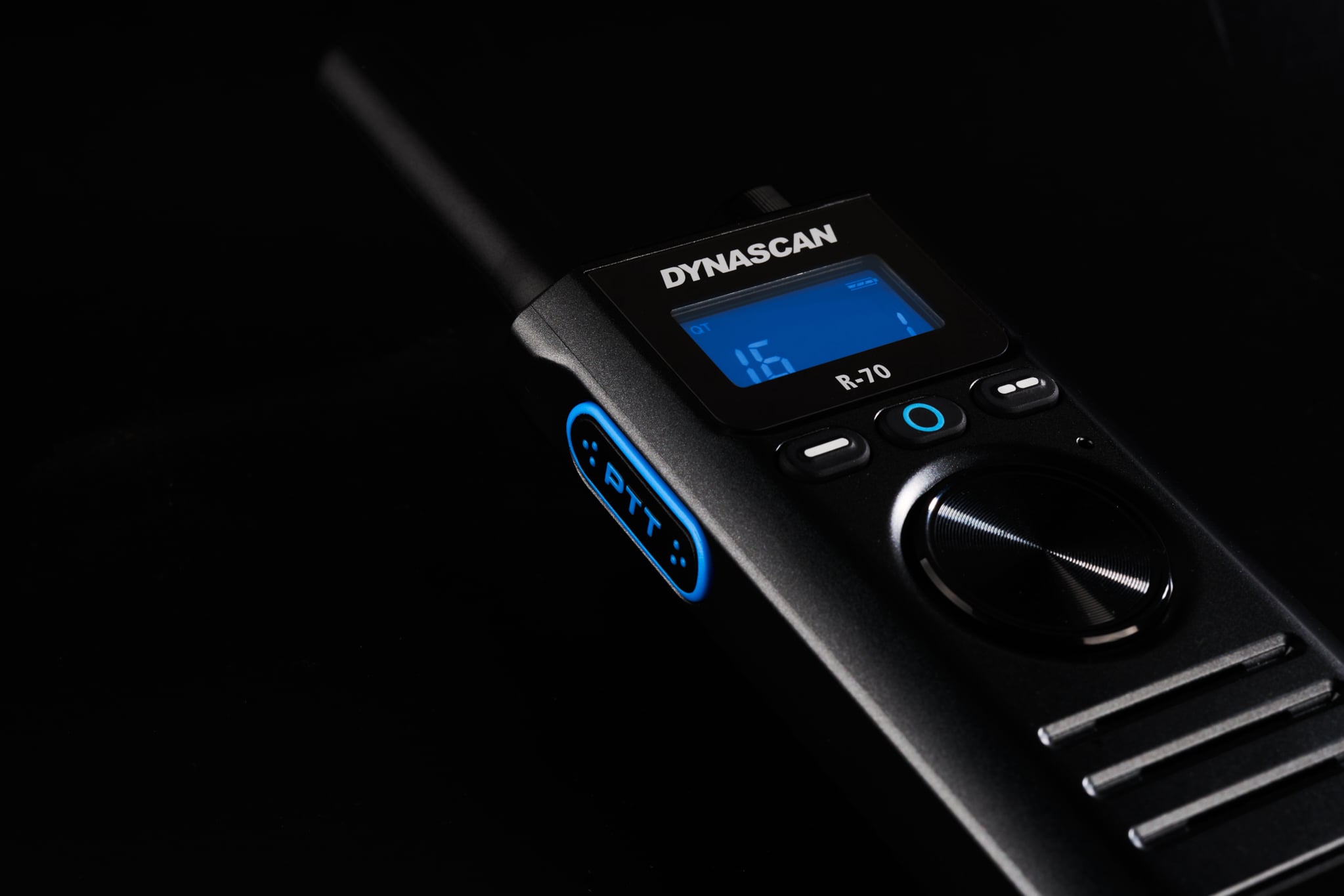

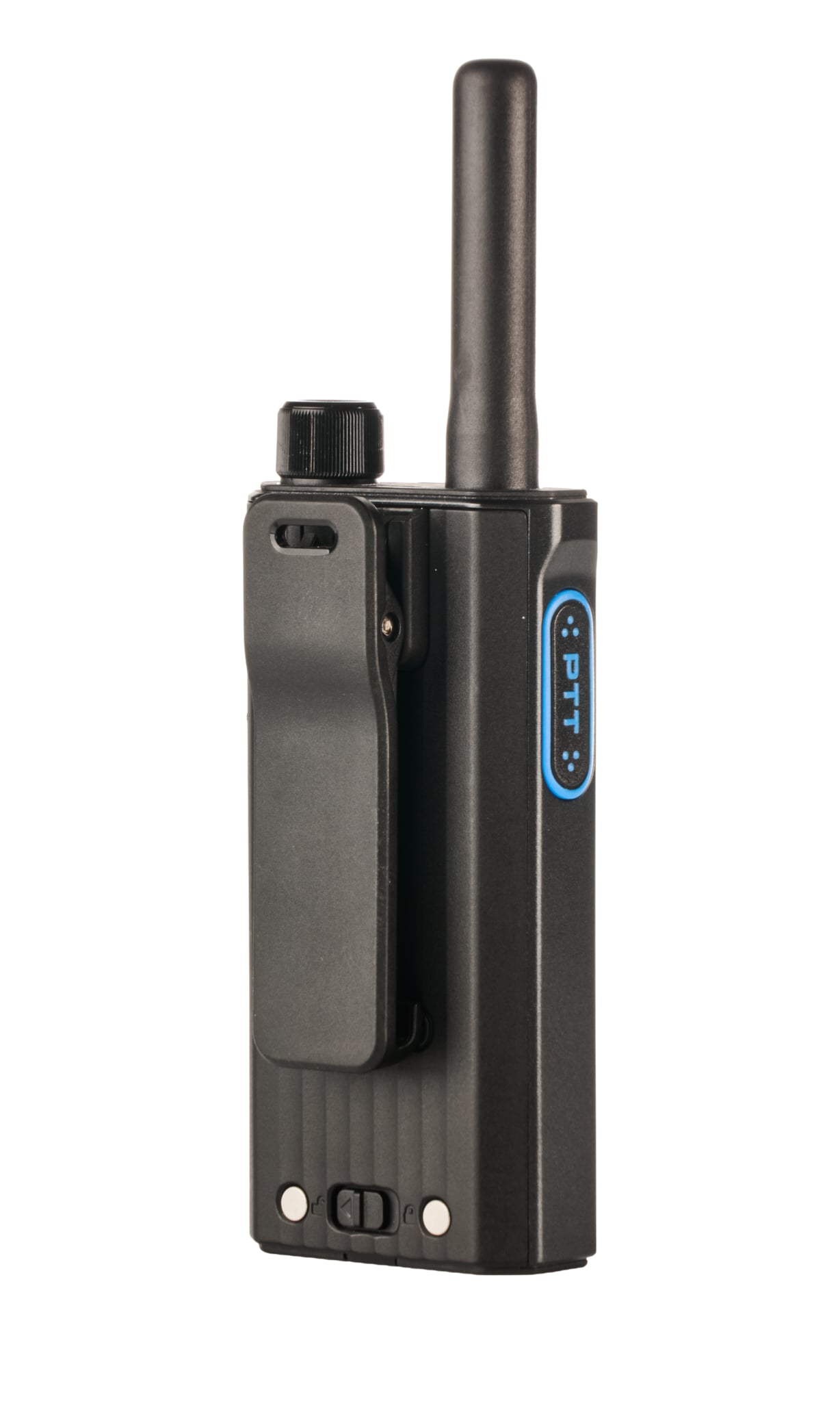

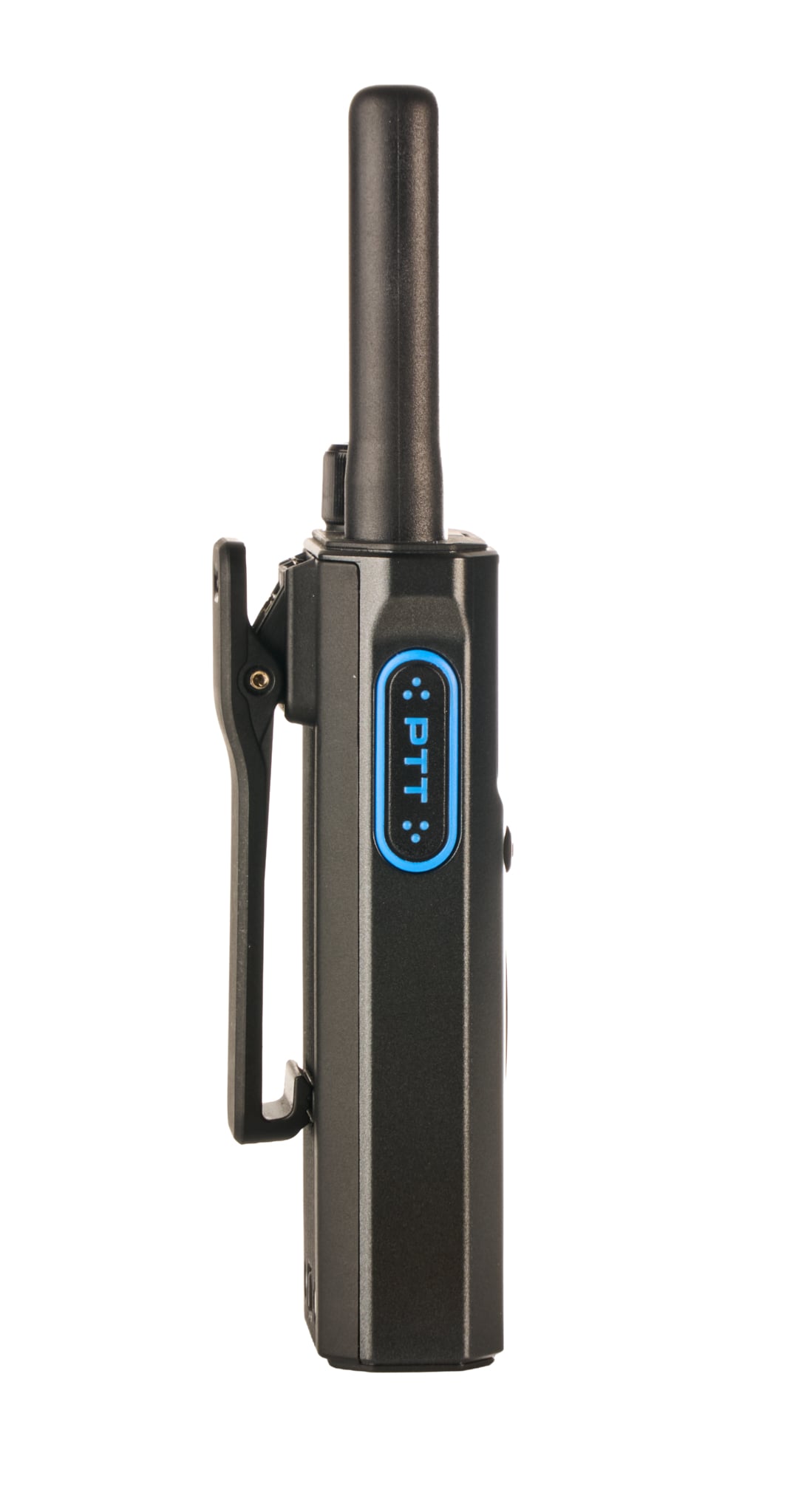

| PTT Transmission | Dual PTT (Side PTT button + large Front PTT key) |
| Battery Pack | Rechargeable Lithium-Ion 3.7 V / 1000 mAh (3.7 Wh) |
| Battery Life | Up to 12 hours (standard 5-5-90 duty cycle) |
| Charging Options | Desktop charging cradle and direct USB-C port |
| Audio Jack | Single-pin headset socket with rubber protective flap |
| Audio Output Power | ≥ 1 W (≤ 3% distortion) |
| Dimensions & Weight | 185 x 55 x 32 mm (with antenna) | 200 g (with battery) |
Key Highlights
- Licence-free PMR-446 handheld radio requiring no operational fees or registration.
- Ergonomic Dual PTT architecture (side push-to-talk and central front key).
- Clear backlit LCD screen displaying channel, battery life, sub-tones, and status icons.
- 3-level VOX (with external headset) and iVOX (via built-in internal microphone).
- Scrambler feature for private, clear voice communications across the group.
- Integrated Compander noise reduction circuitry for crystal-clear audio reception.
- Fast RF cloning and automatic frequency/code synchronization.
- Dual charging flexibility: dedicated desktop docks or direct USB Type-C connection.

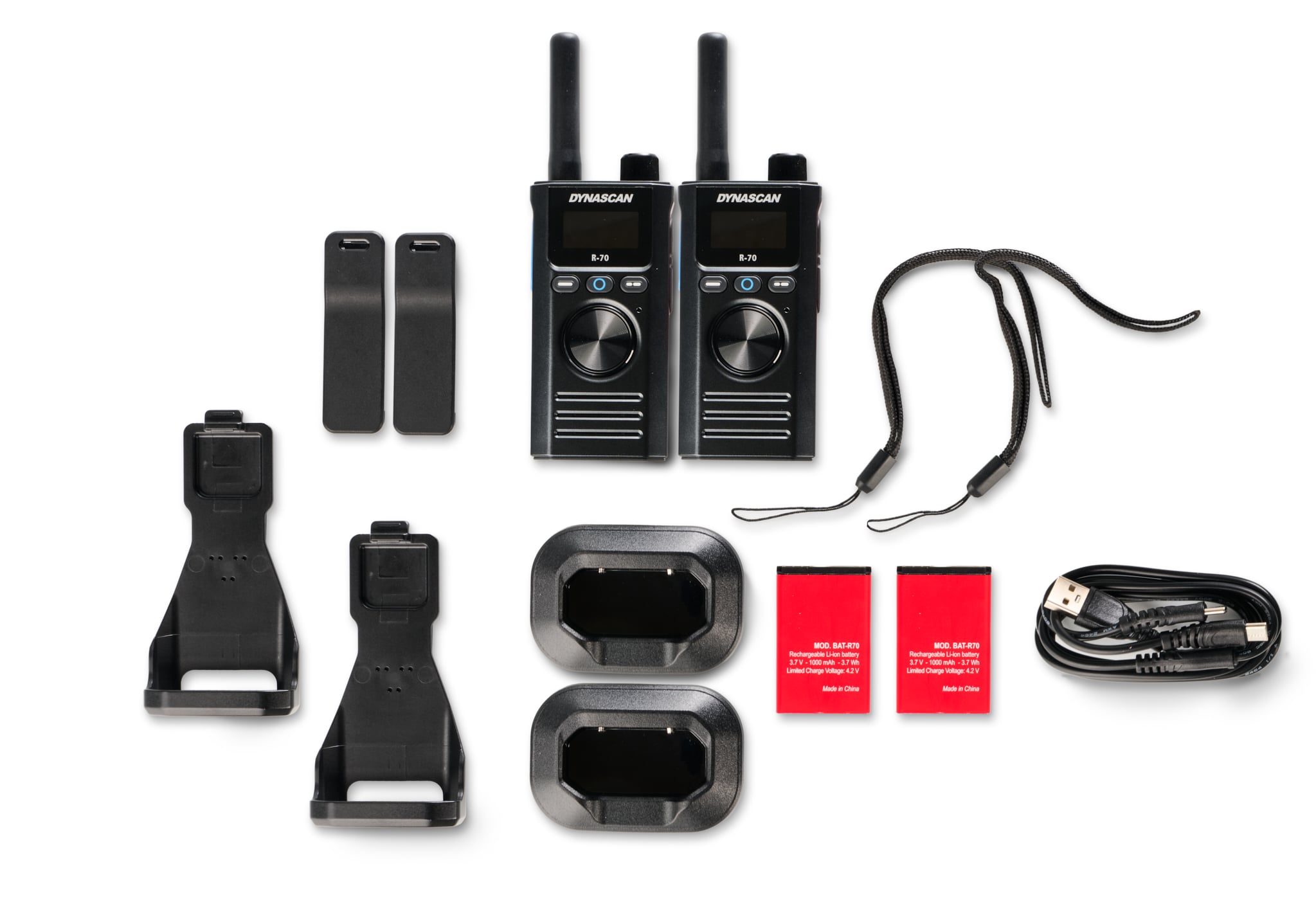

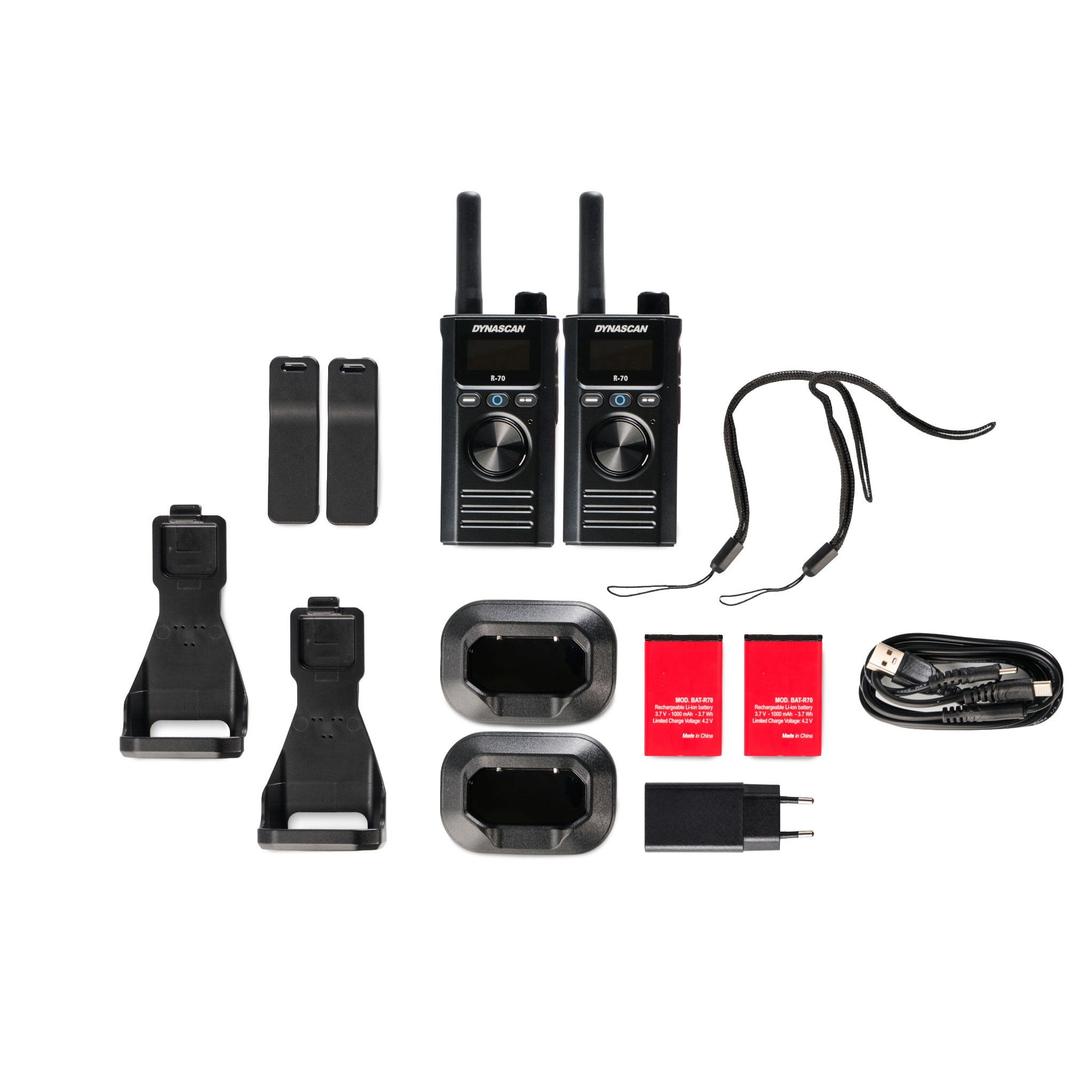

Package Contents

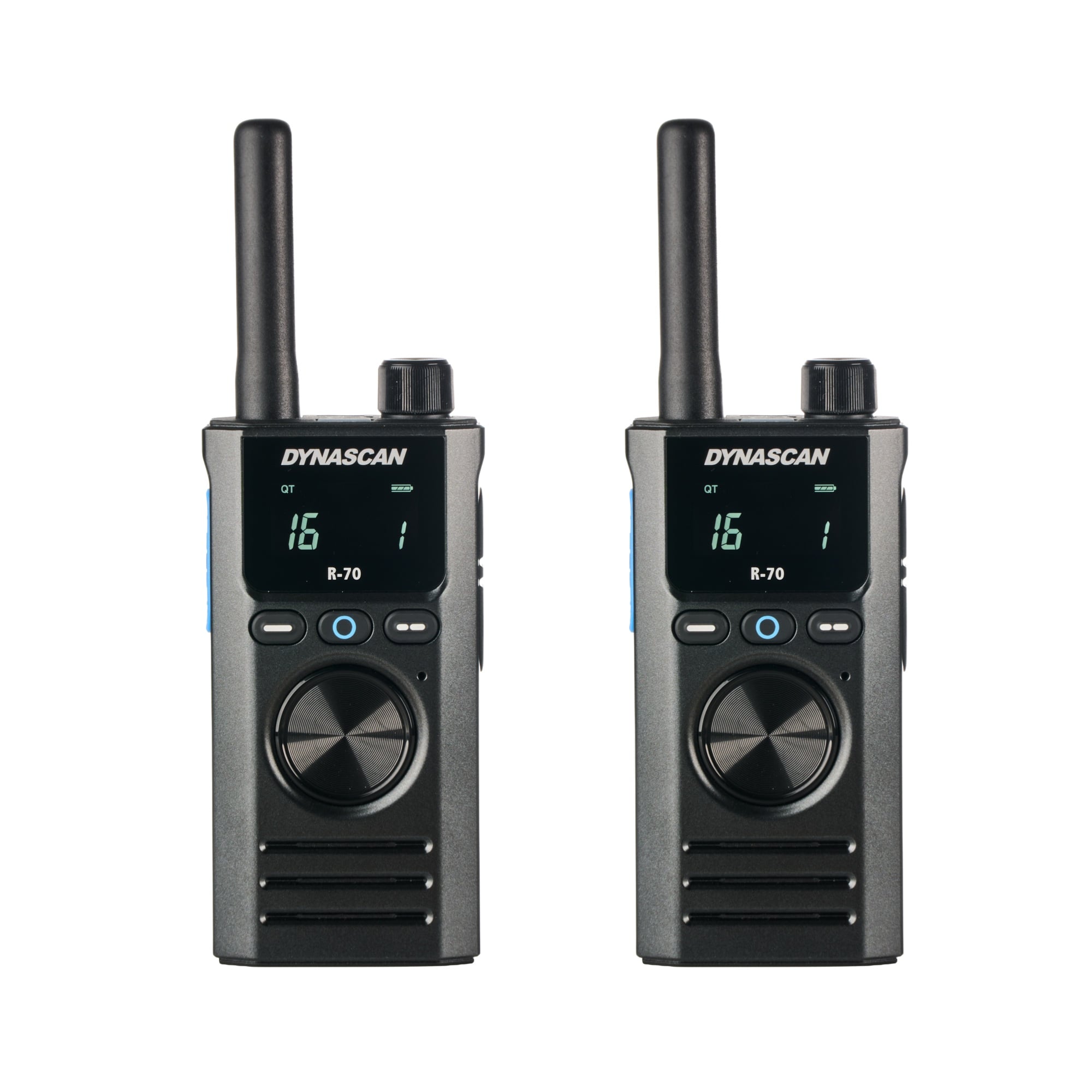

- 2x Dynascan R-70 PMR-446 Handheld Transceivers.

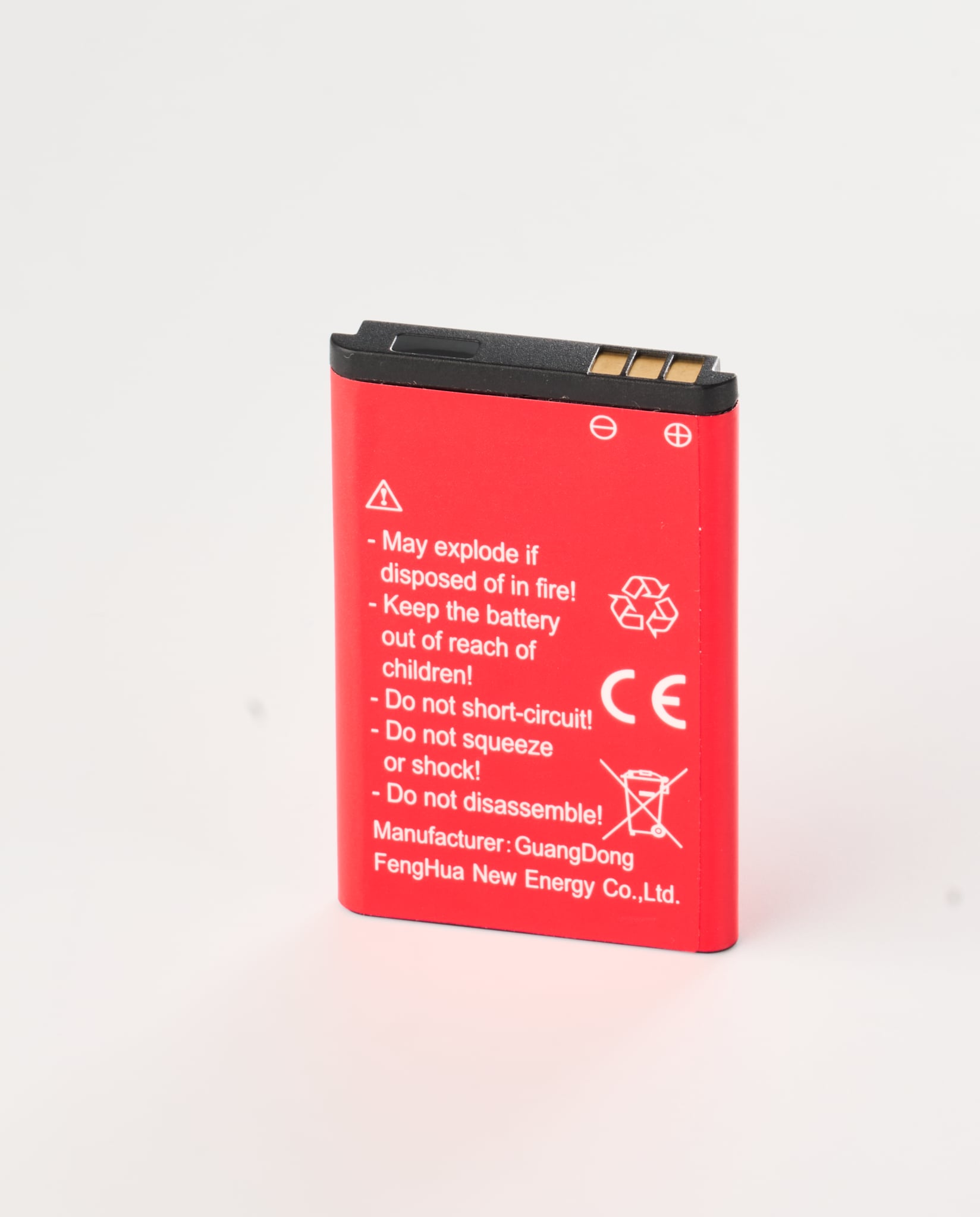

- 2x Rechargeable Li-Ion Batteries (3.7 V / 1000 mAh).

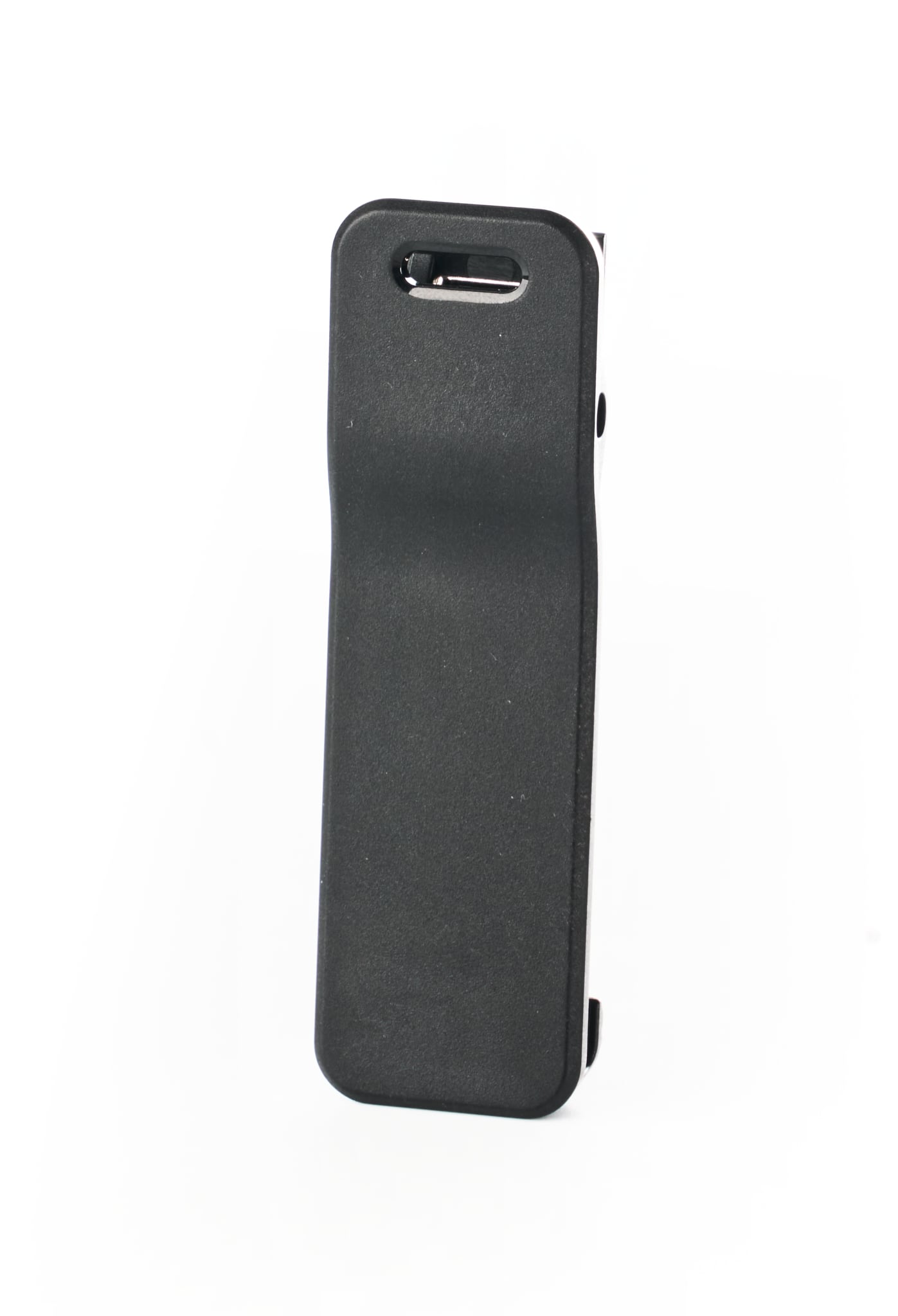

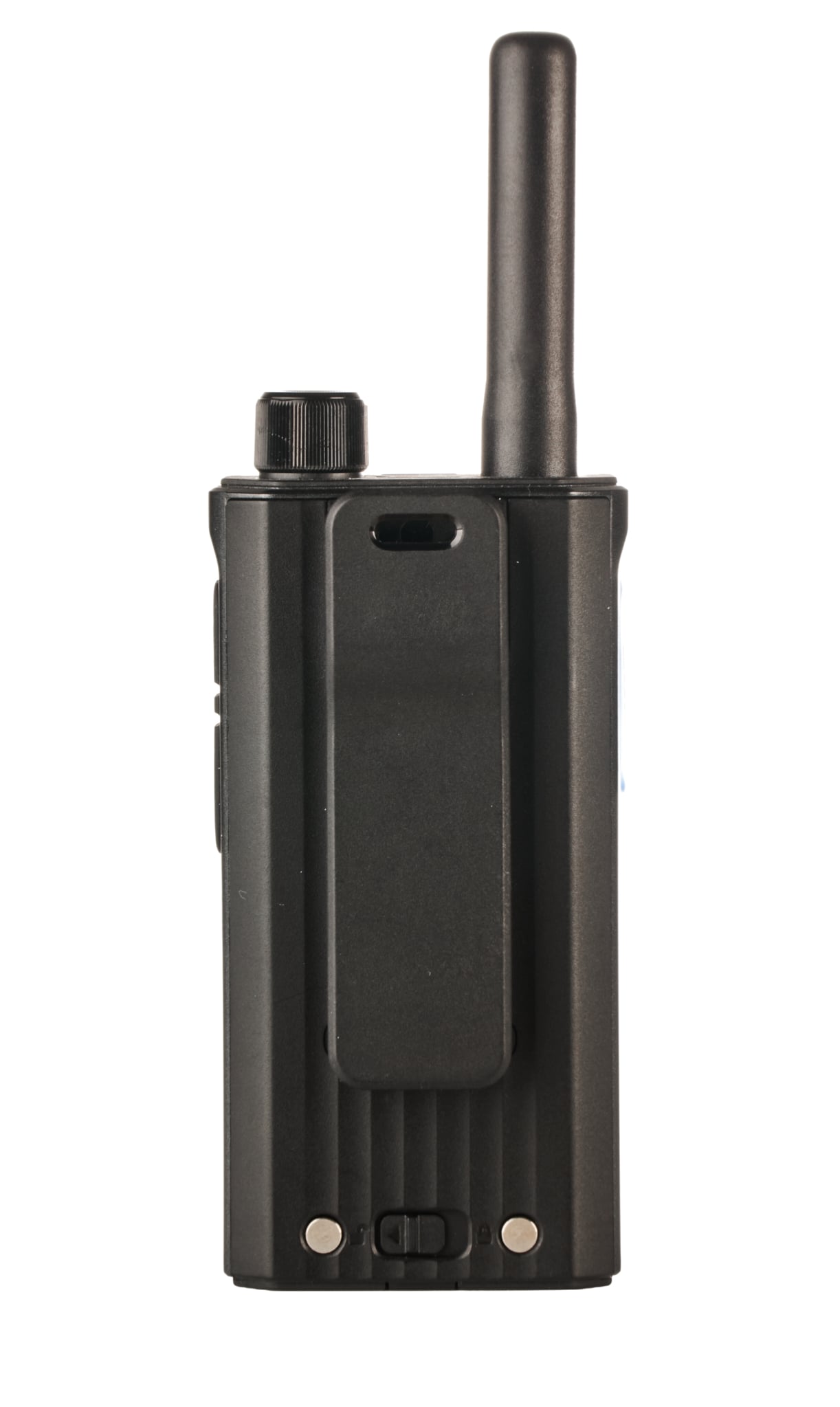

- 2x Protective holsters with swivel belt clips.

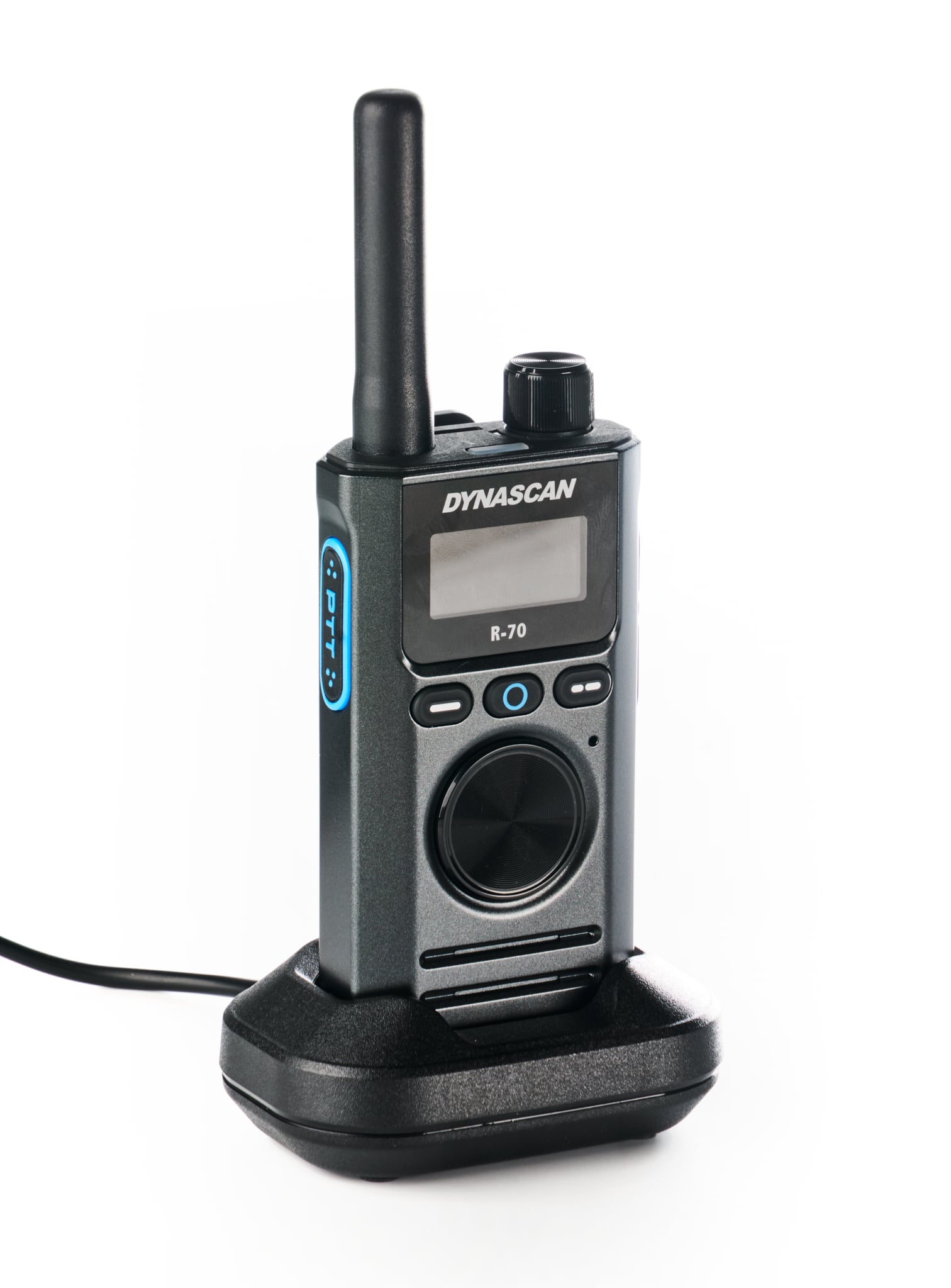

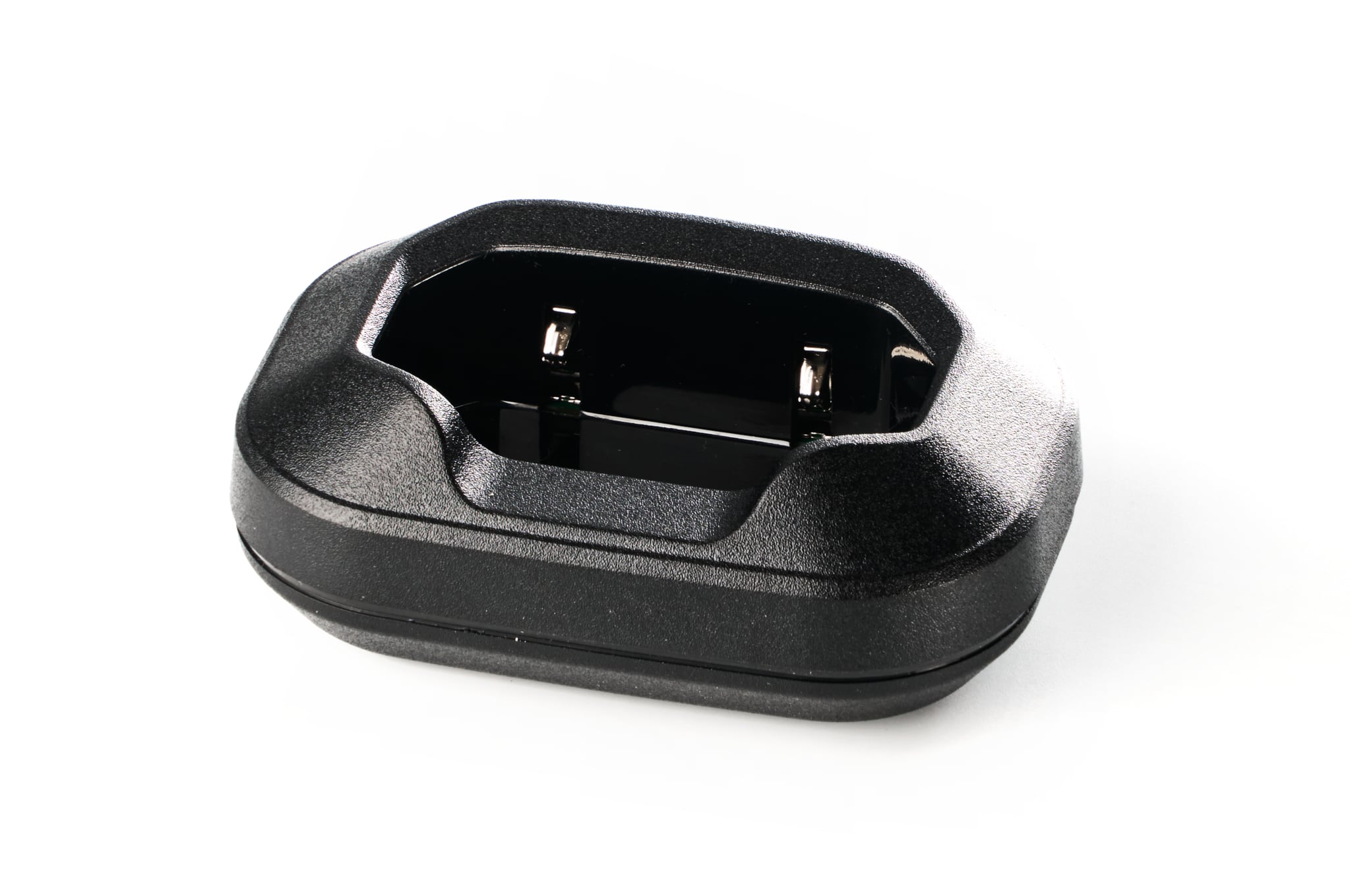

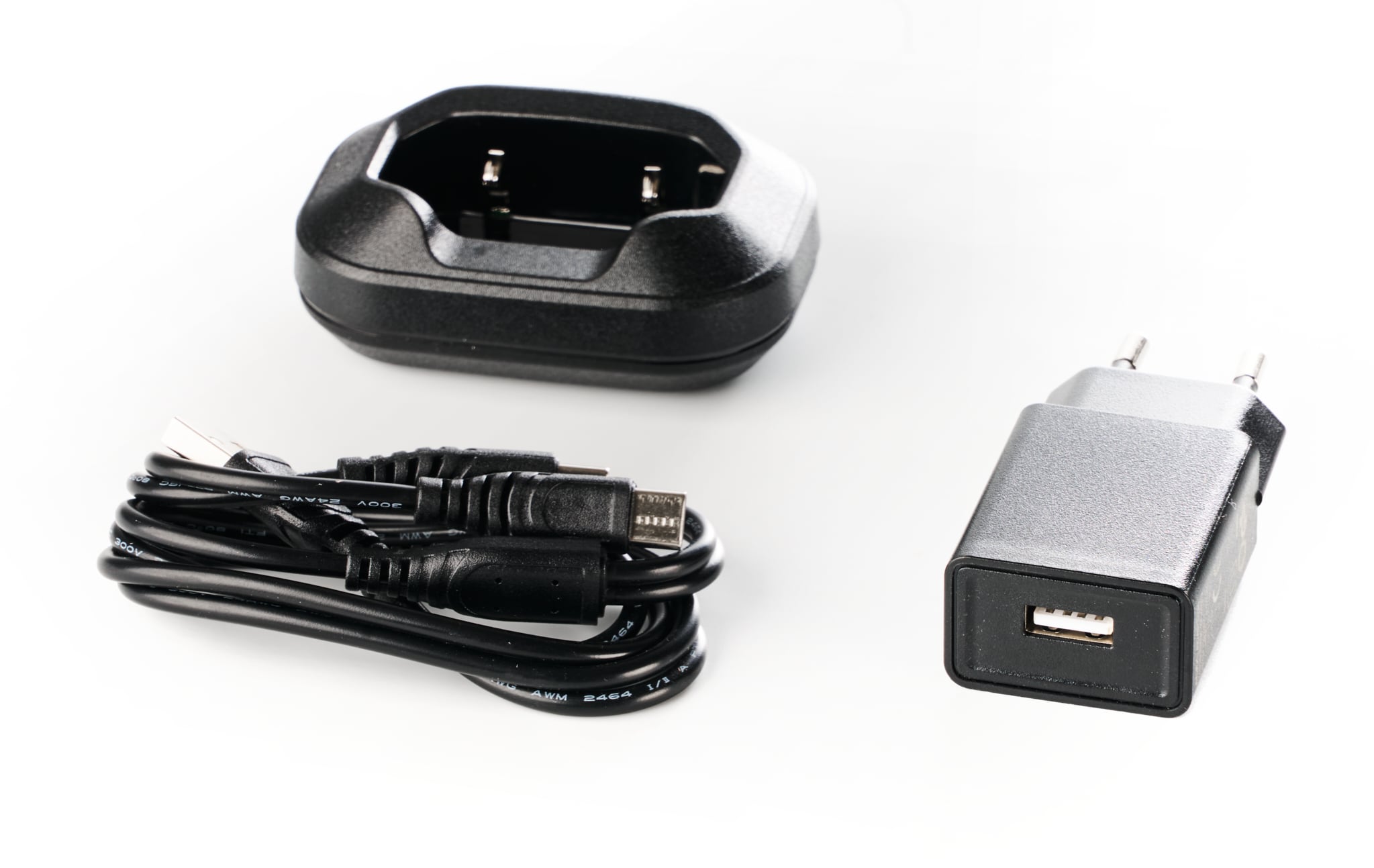

- 2x Individual desktop charging cradles.

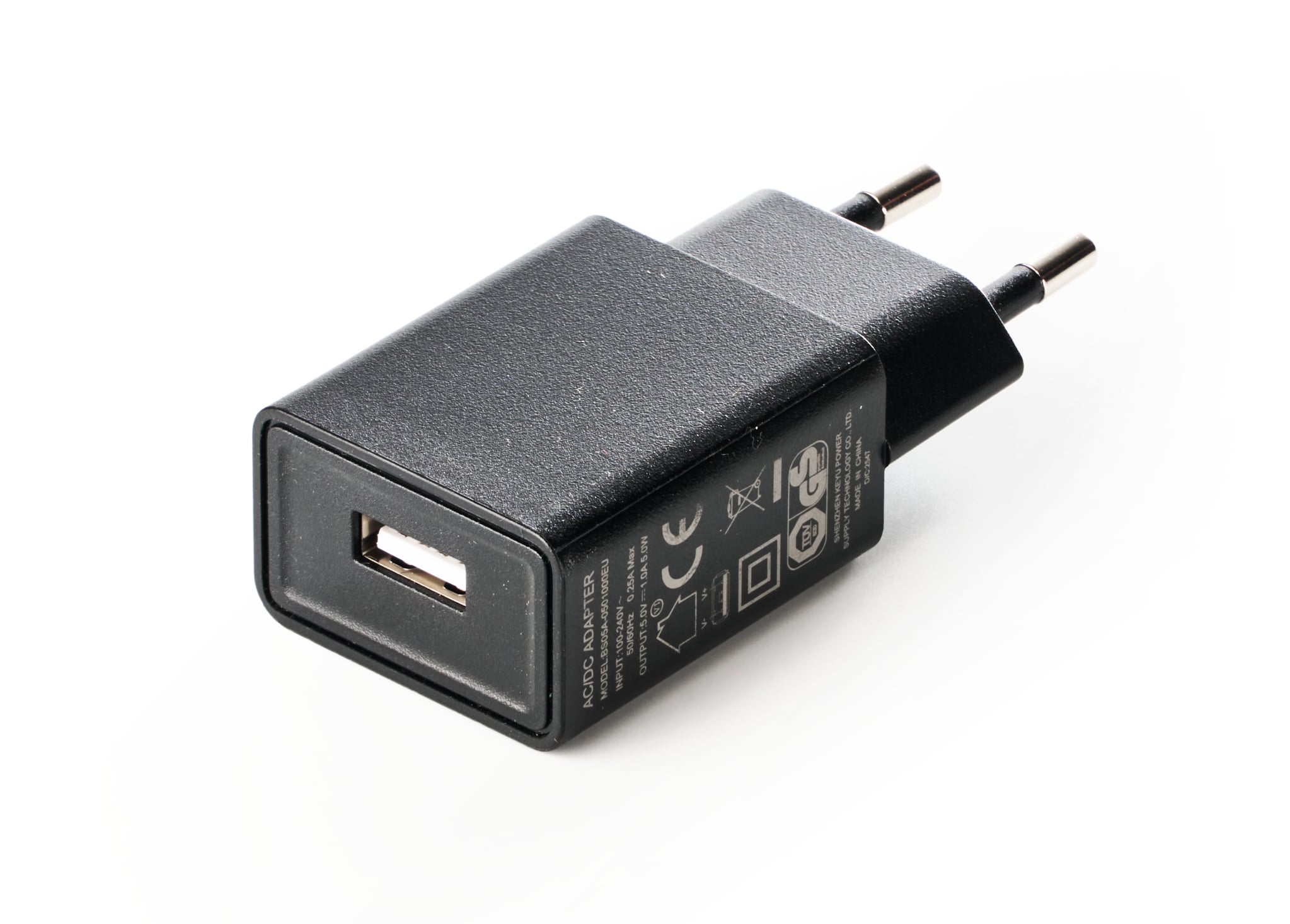

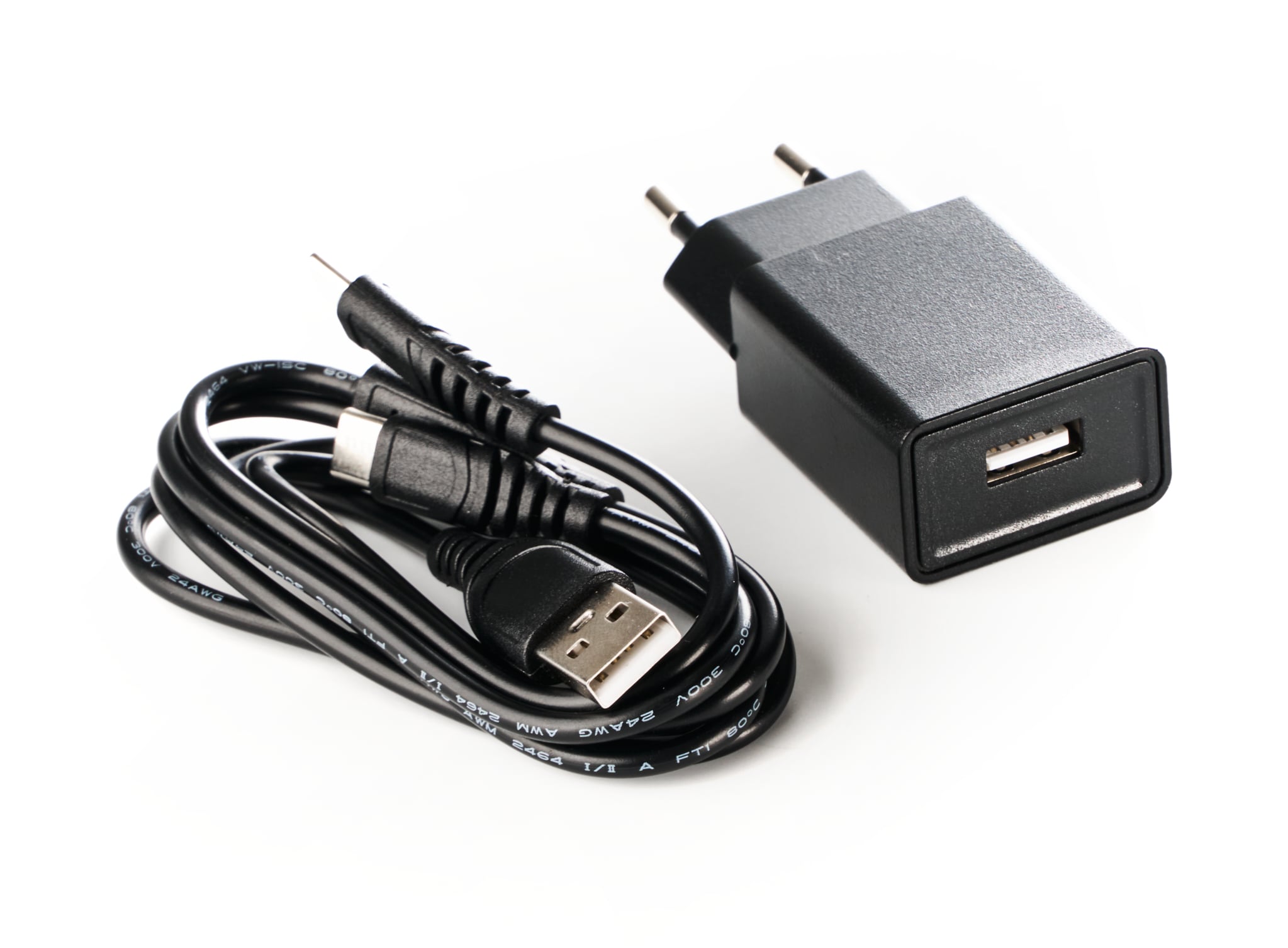

- 1x AC/DC power supply adapter.

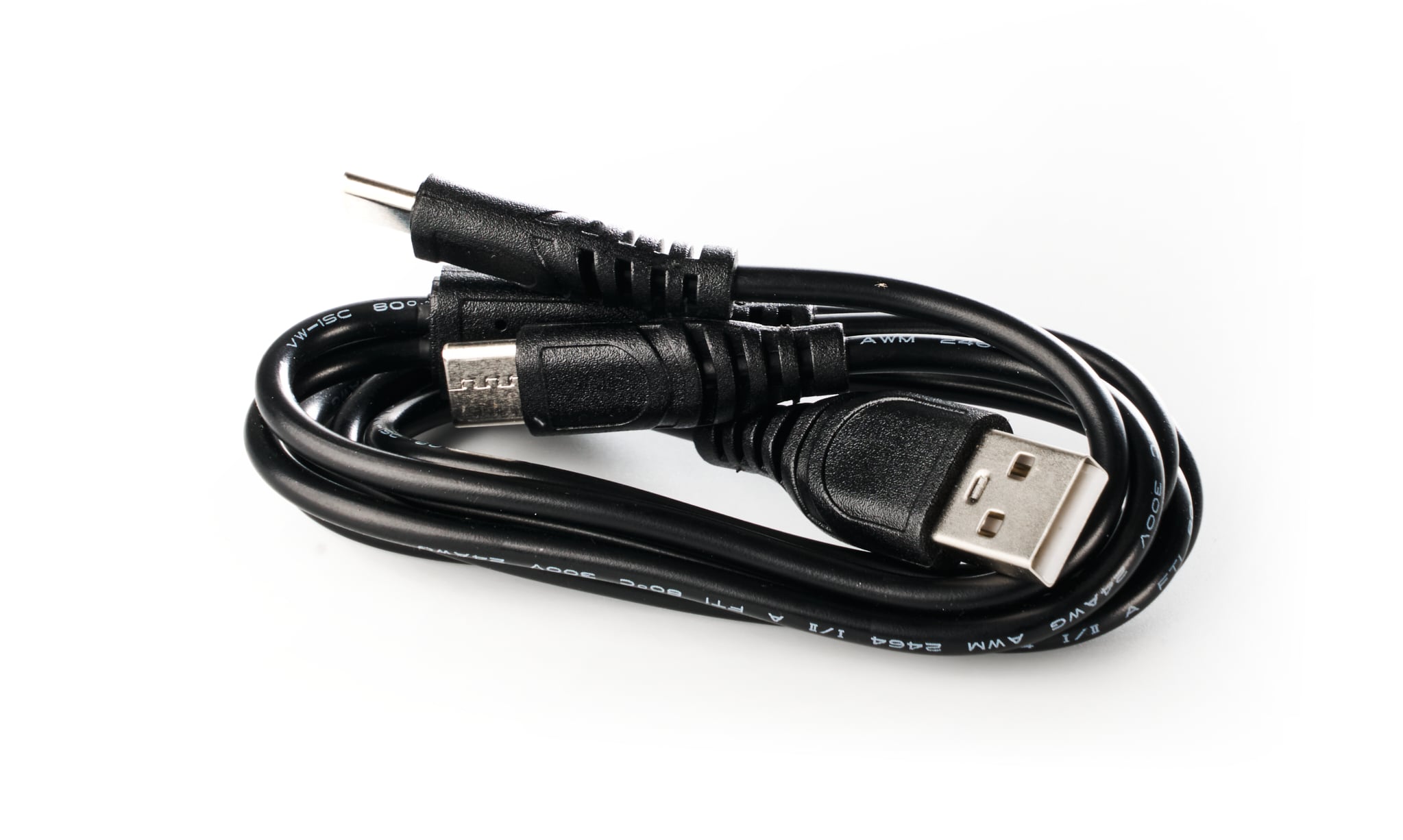

- 1x Dual USB-A to twin USB-C Y-splitter charging cable.
- 1x Multilingual user instruction manual.
Frequently Asked Questions
Can the radio be charged without using the desktop cradle?
Yes. Each walkie-talkie features a covered USB-C port on the side, allowing you to charge directly with the supplied Y-cable or any standard USB charger. (Note: do not connect both the desktop charger and the USB-C cable simultaneously).
What type of headset connector does the Dynascan R-70 use?
It uses a single-pin dedicated audio connector protected by a rubber weather cap.

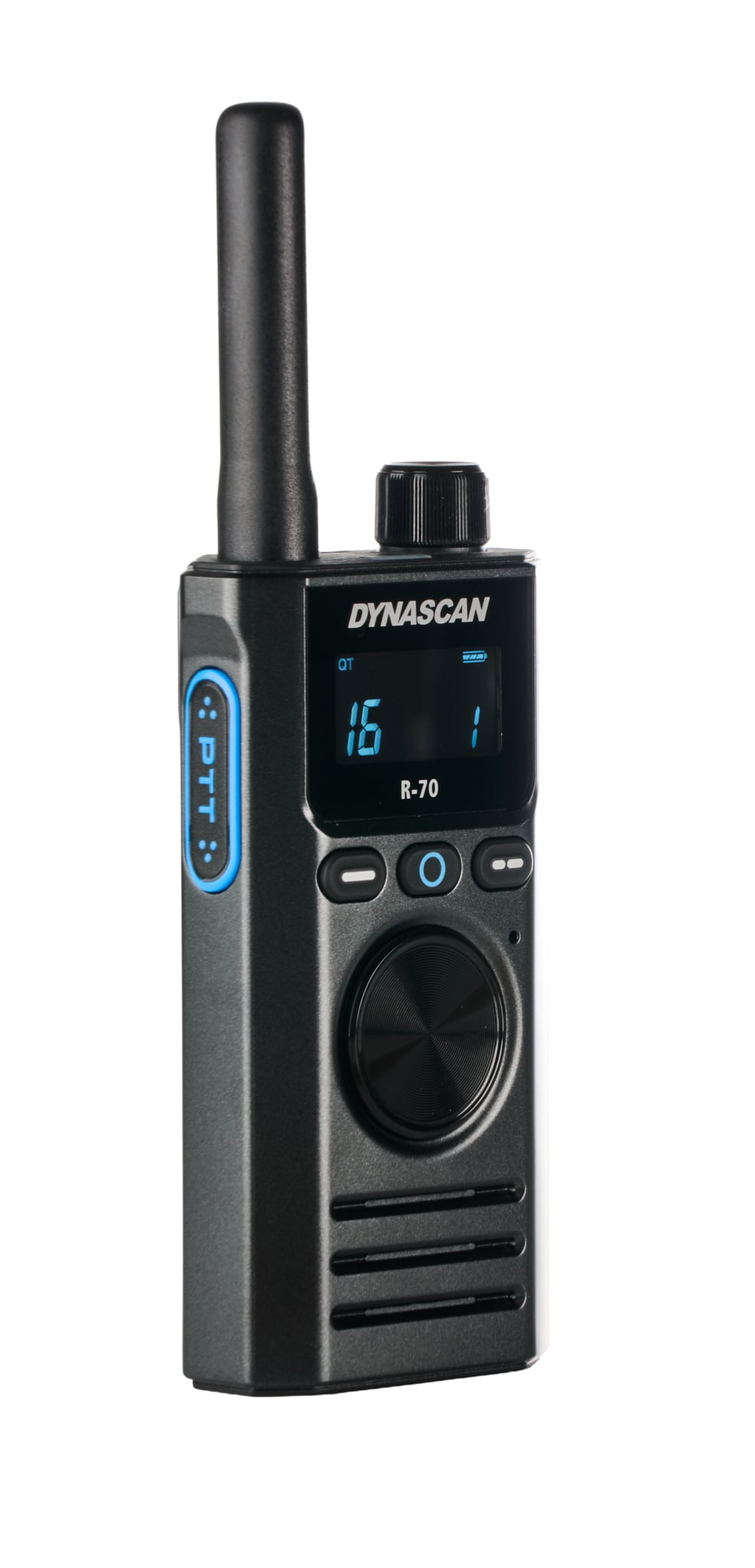

What is the purpose of the large circular front button?
It serves as a secondary front PTT key, allowing users to initiate transmissions easily when holding the transceiver face-up or when the unit is clipped to a work belt.
