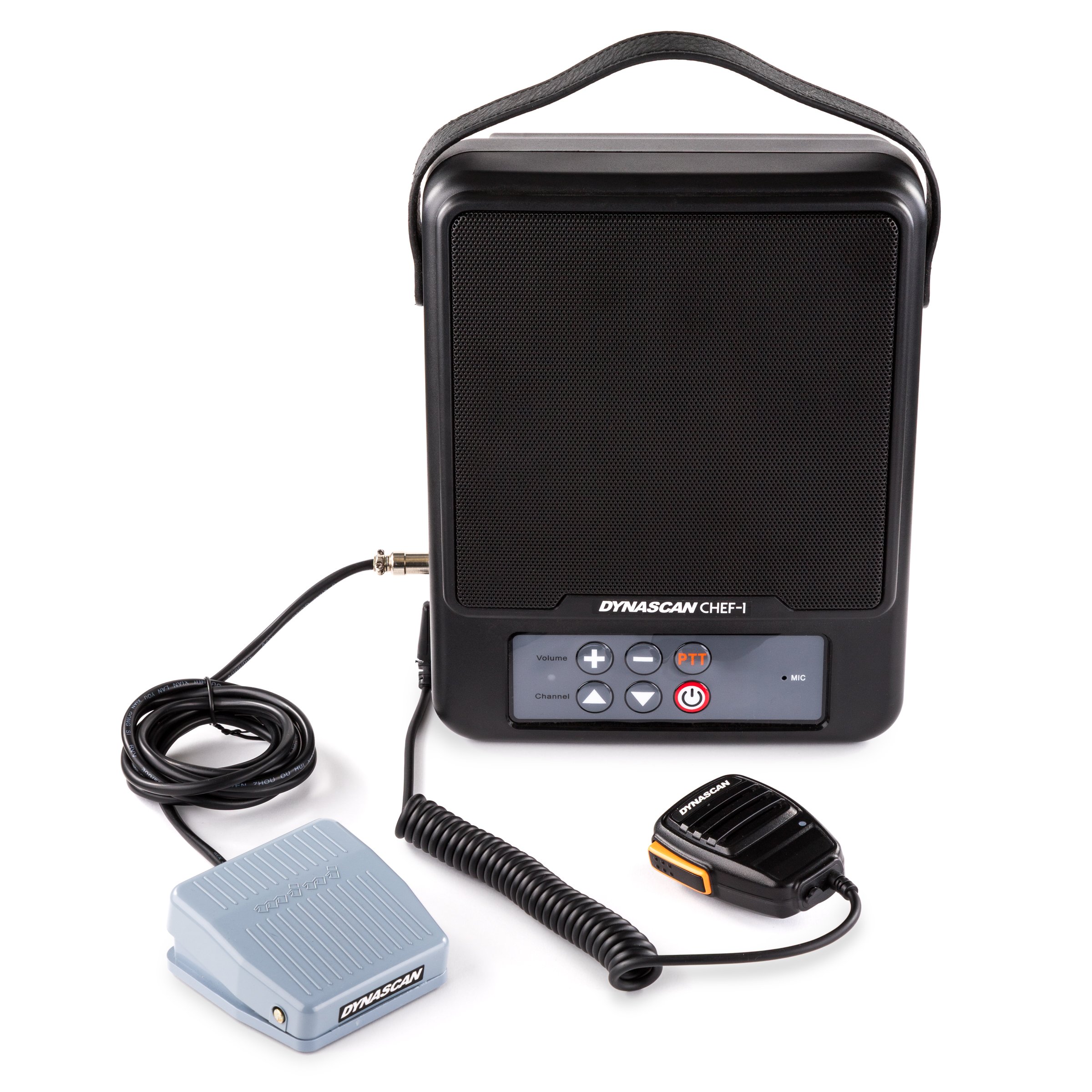

The Dynascan CHEF-1 is a PMR-446 transceiver specifically designed to optimize coordination in hospitality and demanding professional environments. Its robust construction and intuitive operation make it the perfect communication bridge between the kitchen and the floor staff.
“Hands-Free” Control with External Foot Pedal
“Hands-Free” Control with External Foot PedalThe standout innovation of the CHEF-1 is the inclusion of an industrial foot pedal. This accessory allows the chef to trigger transmissions instantly without touching the device. It is the ideal solution for:
-
Total Hygiene: Prevents hand contact with the device, maintaining food safety standards.
-
Productivity: Allows the chef to call out orders or give instructions while plating or cooking.
-
Convenience: Fluid communication even when hands are busy or gloved.
Total Compatibility and License-Free
Designed for teamwork, the CHEF-1 is fully compatible with any standard PMR-446 walkie-talkie used by floor or event staff. With its 16 channels and programmable QT/DQT codes, it ensures clear, private, and interference-free communication with the rest of the team. Additionally, its voice prompts, LED indicator, and low battery alert make it easy to handle even during peak hours.
Reliable, resistant, and built for continuous work, the Dynascan CHEF-1 is the perfect solution for those who need stable and professional communications without licenses or complications.
Programming on demand: We offer custom programming to ensure full compatibility with the specific walkie-talkies used by your front-of-house staff.
FEATURES
- 16 channels
- Programmable CTCSS and DCS codes
- Voice prompt function
- Low battery alert
- Time-out timer function (TOT).
- Voice-operated transmission (VOX).
- Busy channel lockout (BCL).
- Status LED indicator
TECHNICAL SPECIFICATIONS
GENERAL:
- Frequency range: 446.00625 MHz – 446.19375 MHz (TX/RX)
- Channels no.: 16
- Channel separation: 12.5 kHz
- Modulation type: FM (F3E)
- Antenna type: Integral
- Operating temperature: -10 ºC to +50 ºC
- Power supply: Built-in Li-ion battery pack (11.1 V/2600 mAh)
- AC/DC battery charger: Input: 100-240 VAC/50-60 Hz/1.5 A (max.) / Output: 12 VDC/5000 mA
- Duty cycle: 5-5-90 (Tx/Rx/Standby)
- CTCSS (QT) & DCS (DQT): Programmables
- Dimensions (H x W x D): 250 x 200 x 80 mm (approx.)
- Weight: 1.6 Kg (approx.)
RECEIVER:
- Sensitivity (12 dB SINAD): ≤0.25 μV
- Adjacent channel selectivity: ≥60 dB
- Intermodulation:≥60 dB
- Distortion: ≤5 %
- Spurious radiation: ≤-57 dBm
TRANSMITTER:
- Frequency stability: ±2.5 ppm
- Transmission output power (E.R.P.): 0.5 W
- distortion: ≤3 %
- Spurious emission: ≤-36 dBm

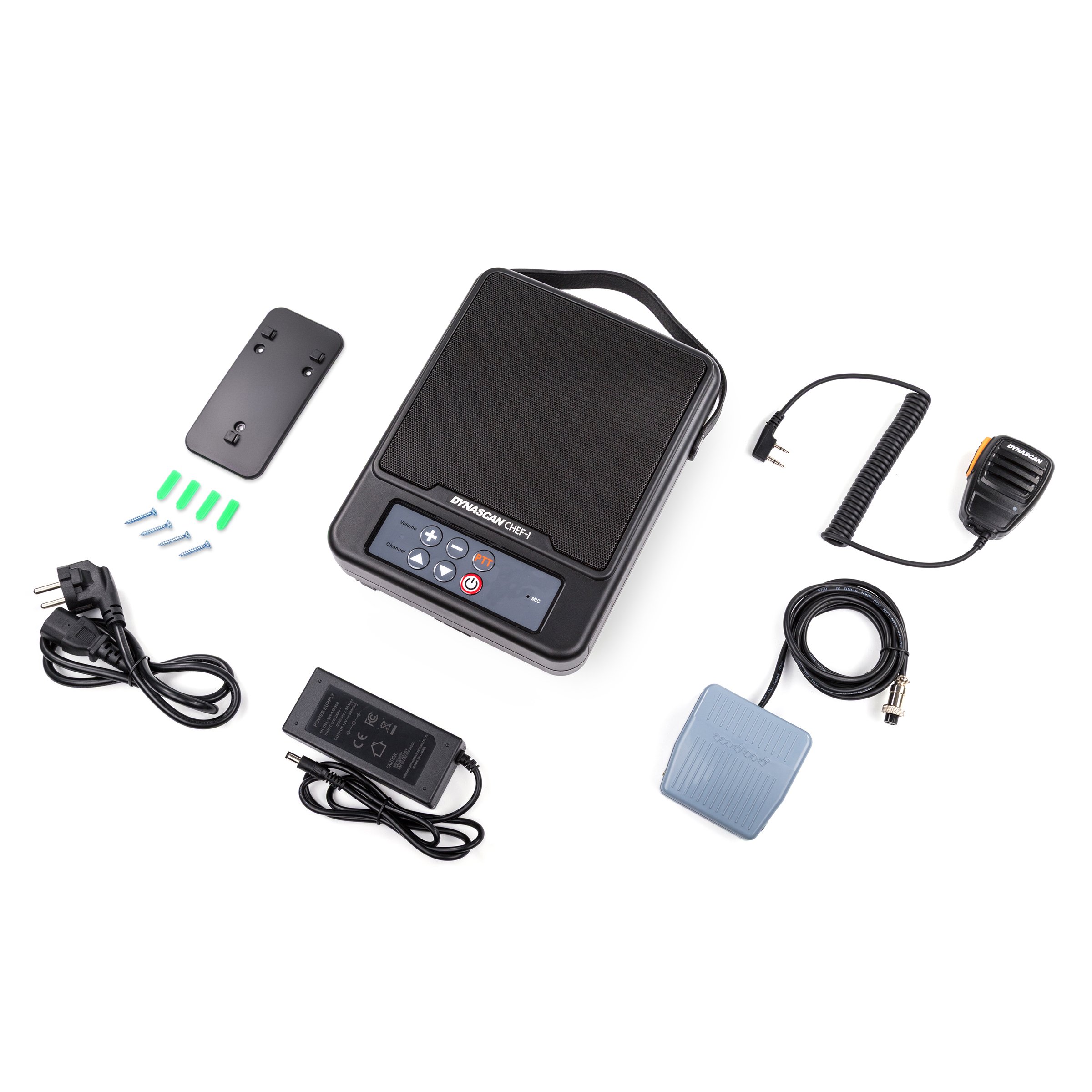

CONTENT
- PMR-446 radio
- Handheld microphone
- AC/DC battery charger
- Floor PTT
- Mounting screws
- Mounting bracket
- Instruction Manual
