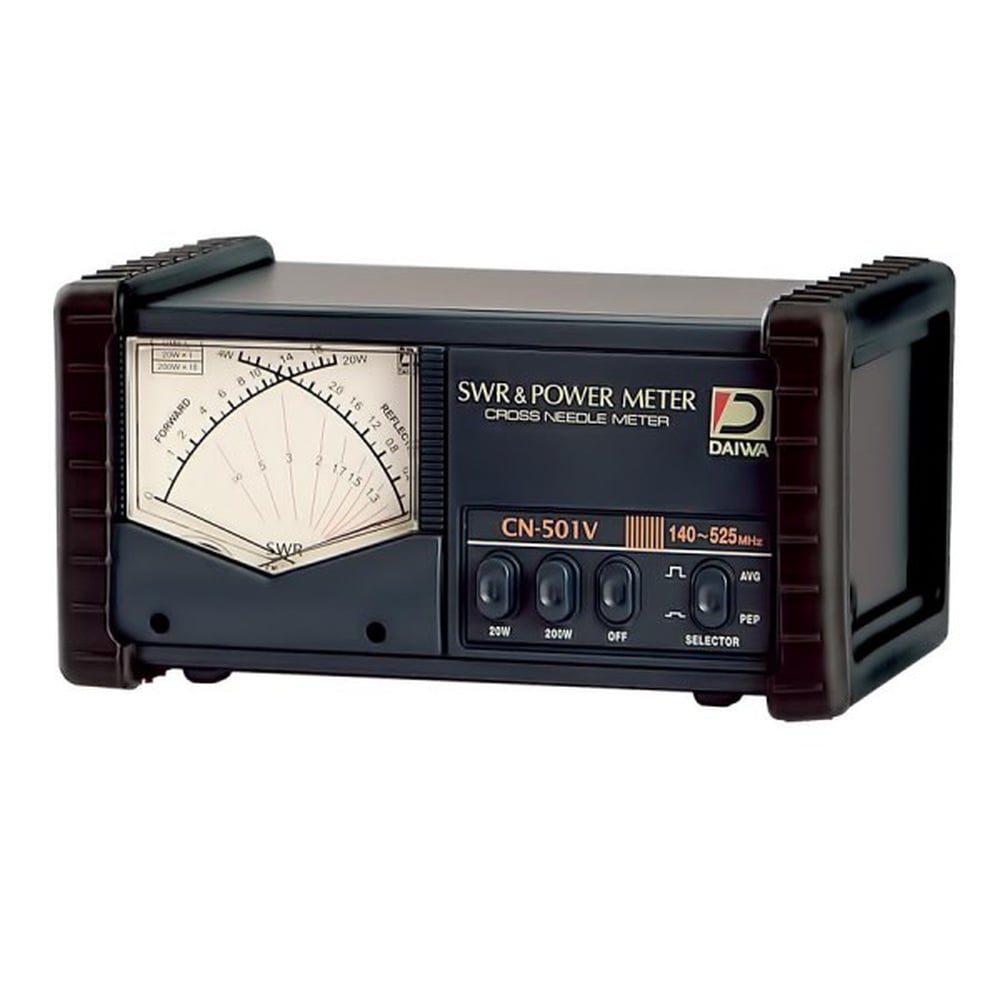

Daiwa CN-501VM SWR meter and cross-needle wattmeter with a frequency range of 140 to 525 MHz and power scales of 20 and 200 W. Rear SO239 connectors.
TECHNICAL SPECIFICATIONS
- Frequency range: 140 to 525 MHz
- Power scales: 20 W and 200 W
- Rated power: 200 W
- SWR detection sensitivity: 4 W minimum
- Connectors: SO239
- Impedance: 50 Ohms
- 13.8 V power supply for instrument illumination
- Power cable included
- Dimensions: 155 x 80 x 100 mm
- Weight: 670 g
