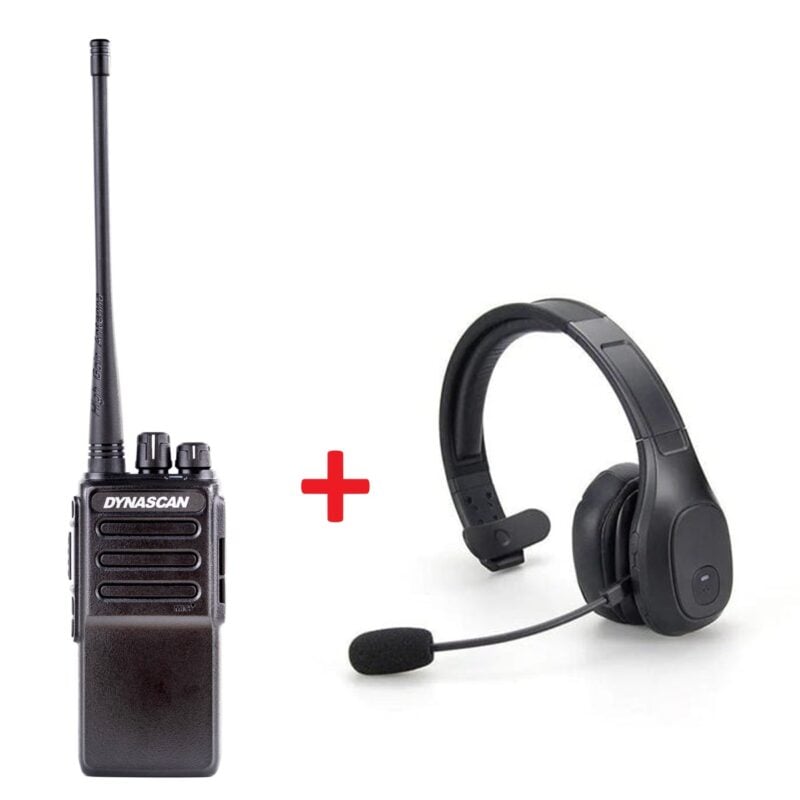

The Bundle consisting of the DYNASCAN 220BT Walkie and ANYTONE Q9 earpiece allows for direct and reliable communications with the comfort and freedom provided by the wireless connection in professional use environments, even with high ambient noise.
The Dynascan 220BT is a PMR-446 walkie-talkie adapted for license-free use within Europe. It features a BT connection* to pair wireless headsets, facilitating a faster and more comfortable workflow. Its rugged IPX5 design, high-capacity battery, and good audio clarity make it perfect for retail, recreational activities, events, and small businesses. It offers functions such as VOX, preconfigured channels, basic coding, and power saving. An accessible professional solution for those who need reliable communication without legal paperwork.
The BT wireless connectivity function can be activated via programming and is only available for compatible accessories. Contact us to verify your earpiece compatibility.
220BT SPECIFICATIONS
General:
- Frequency range: 446.0 – 446.2 MHz (PMR-446 for free use)
- Number of channels: 16
- Number of programmable memories: 256 (16 groups of 16 channels)
- Channel spacing: 25 kHz (wideband), 12.5 kHz (narrowband)
- Power supply: 7.4 V/2,600 mAh Li-Ion battery
- Frequency stability: ±2.5 ppm
- Operating temperature: -20ºC to +55ºC
- Dimensions: 59 x 128 x 42 mm (with 2,600 mAh battery)
- Weight: 250 g (with 2,600 mAh battery)
Receiver: Wideband / Narrowband
- Sensitivity (12 dB SINAD): ≤0.25 μV / ≤0.35 μV
- Adjacent channel selectivity: ≥70 dB / ≥60 dB
- Intermodulation: ≥60 dB / ≥60 dB
- Spurious radiation rejection: ≥65 dB / ≥65 dB
- Audio response: +1~-3dB (0.3~3 KHz) / +1~-3dB (0.3~2.55KHz)
- Noise and hum: ≥45 dB / ≥40 dB
- Audio distortion: Extrema ≤5 % / ≤5 %
- Audio output power: 1000 mW/10 % / 1000 mW/10 %
Transmitter: Wideband / Narrowband
- Maximum transmission power: 0.5 W (PMR-446) and 2.5 mW (BT)
- Modulation type: 16K0F3E / 11K0F3E
- Adjacent channel power: ≥70 dB / ≥60 dB
- Noise and hum: ≥45 dB / ≥40 dB
- Spurious emissions: ≤-36 dB / ≤-36 dB
- Audio response: +1~-3dB (0.3~3 KHz) / +1~-3dB (0.3~2.55KHz)
- Distortion: ≤5 % / ≤5 %
The Anytone Q9 is a wireless headset with a PTT button compatible with the DYNASCAN 220BT and DYNASCAN 240BT Walkie-Talkies, and other devices*, allowing you to enjoy comfortable and efficient wireless communications. Thanks to its BT Wireless connectivity, it easily pairs with these devices, eliminating the need for cables and providing greater freedom of movement during work or outdoor activities.
The ergonomic design of the Q9 headset provides a comfortable fit even during long hours of use, while its boom microphone ensures clear and crisp voice transmission. The combination of the Anytone Q9 with the DYNASCAN 220BT and 240BT is ideal for security, logistics, event coordination, and hospitality professionals, as well as any environment where mobility and constant communication are essential.
*Also compatible with other devices such as: Smartphones, Tablets, and computers, among others, with wireless connectivity for audio devices.
FEATURES
- BT Wireless version: V5.1, Class II
- BT Chipset: QCC3020
- Range: 10 m.
- Protocols: HSP, HFP, AVRCP, A2DP
- Codec: AAC, SBC
- Battery capacity: 400 mAh/3.7 v
- Charging time: Approximately 2 h.
- Music battery life: Approximately 50 h. (70% volume)
- Call battery life: Approximately 30 h. (70% volume)
- Standby time: Approximately 130 h.
- Headset net weight: 149 g.
- Headset dimensions: 188.72 x 154.03 x 59.68 mm.
BUNDLE CONTENTS
- 1 DYNASCAN 220BT Transceiver
- 1 7.4 V/2,600 mAh Li-Ion Battery
- 1 Desktop battery charger
- 1 AC/DC Power supply
- 1 USB-C cable for battery charging and programming
- 1 Belt clip
- 1 Transceiver Instruction Manual
- 1 Anytone Q9 Headset
- 1 USB to USB-C cable
- 1 Headset user manual
