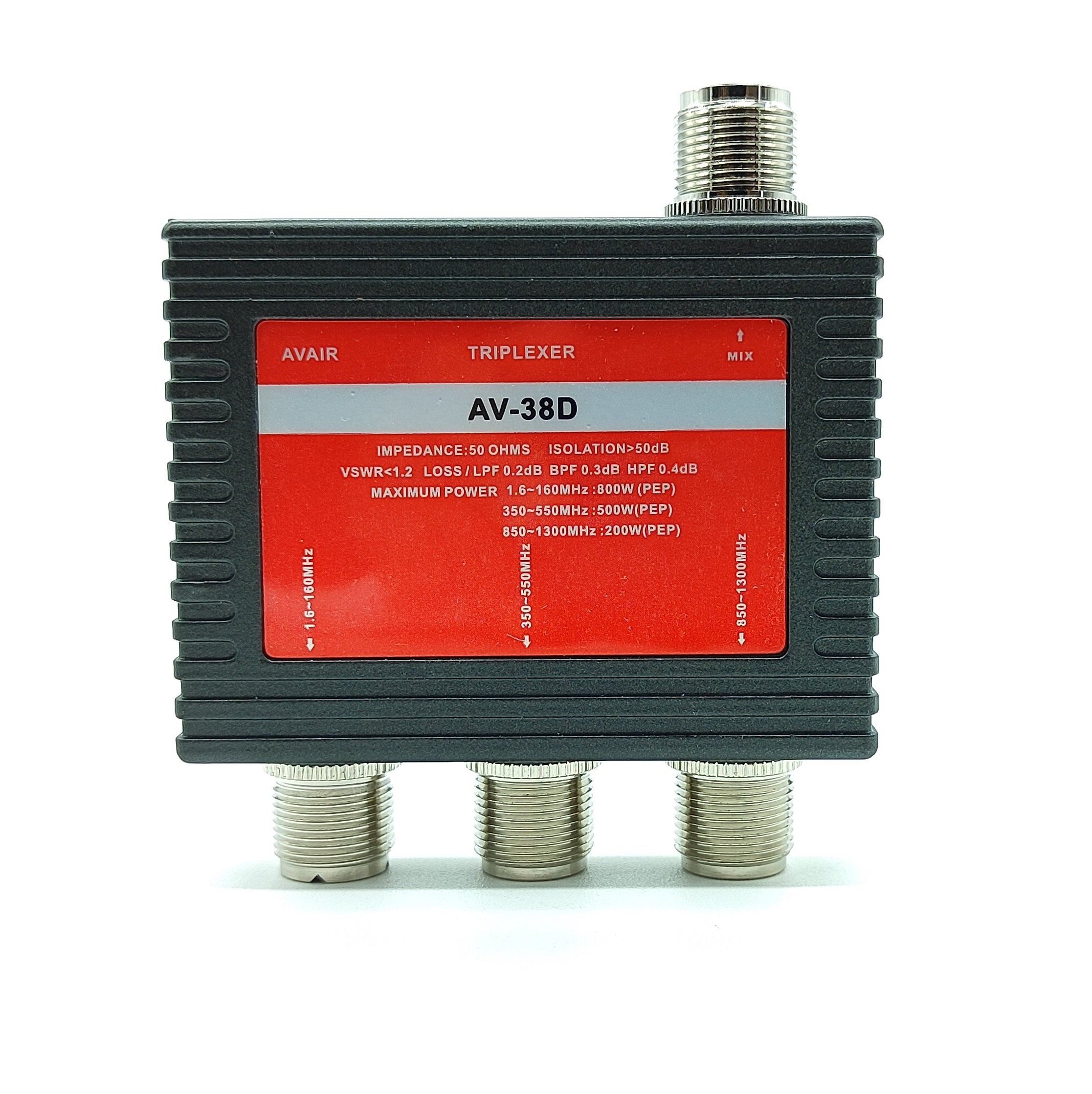

The Avair AV-38D is a commercial-grade, high-isolation radio frequency (RF) triplexer engineered to multiplex three disparate transceiver or receiver outputs into a single shared antenna transmission line infrastructure. Utilizing a sophisticated network of high-Q passive filters—including Low Pass (LPF), Band Pass (BPF), and High Pass (HPF) architectures—this heavy-duty unit routes HF/VHF, UHF, and SHF spectrums simultaneously without mutual cross-talk or impedance mismatches. It stands as an essential physical utility asset for base station engineers, complex communication repeater sites, maritime vessel installations, and high-rotation B2B electronics distribution networks.

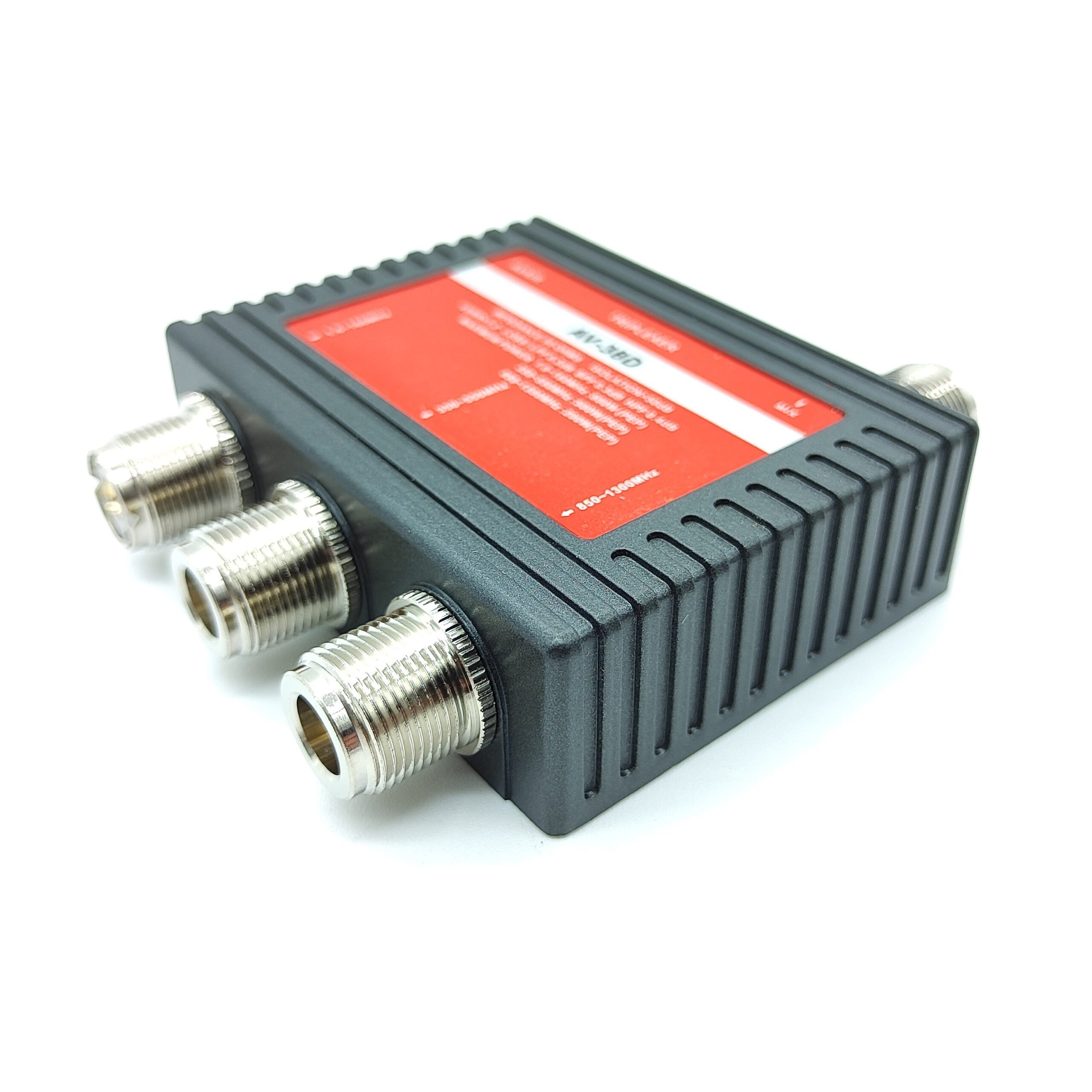

Built to sustain continuous high-power transmission and active workshop deployment, the internal filter matrix is enclosed within a rugged, low-profile metallic chassis measuring 85 x 27 x 64 mm and weighing 300 grams. The RF distribution layout features a premium 50-Ohm calibration offering excellent Voltage Standing Wave Ratio (VSWR < 1.2:1) and ultra-low insertion loss across all ports. The physical hardware interface is designed with a heavy-duty N-Female primary input bulkhead, transitioning into an M-Type (PL-259) connector for the HF/VHF line, and dual precision N-Type connectors for the dedicated UHF and higher microwave spectrum legs to maintain maximum shielding and minimal signal attenuation.
SPECIFICATIONS & VERIFIED INFRASTRUCTURE FEATURES:
• Component Type: Professional Multi-Band Coaxial RF Triplexer Filter Module
• Integrated Passive Filtering Topology Matrix:
– Low Pass Filter (LPF) Leg: 1.6 – 160 MHz Frequency Range
– Band Pass Filter (BPF) Leg: 350 – 500 MHz Frequency Range
– High Pass Filter (HPF) Leg: 850 – 1300 MHz Frequency Range
• Peak Power Handling Thresholds (PEP):
– LPF Port: 800 Watts Peak Envelope Power
– BPF Port: 500 Watts Peak Envelope Power
– HPF Port: 200 Watts Peak Envelope Power
• Insertion Loss Performance Benchmarks:
– LPF Leg: < 0.2 dB Attenuation
– BPF Leg: < 0.3 dB Attenuation
– HPF Leg: < 0.4 dB Attenuation
• System Nominal Impedance: 50 Ohms (Standard RF Interface Calibration)
• Voltage Standing Wave Ratio (VSWR): < 1.2:1 (High-Isolation Tuning)

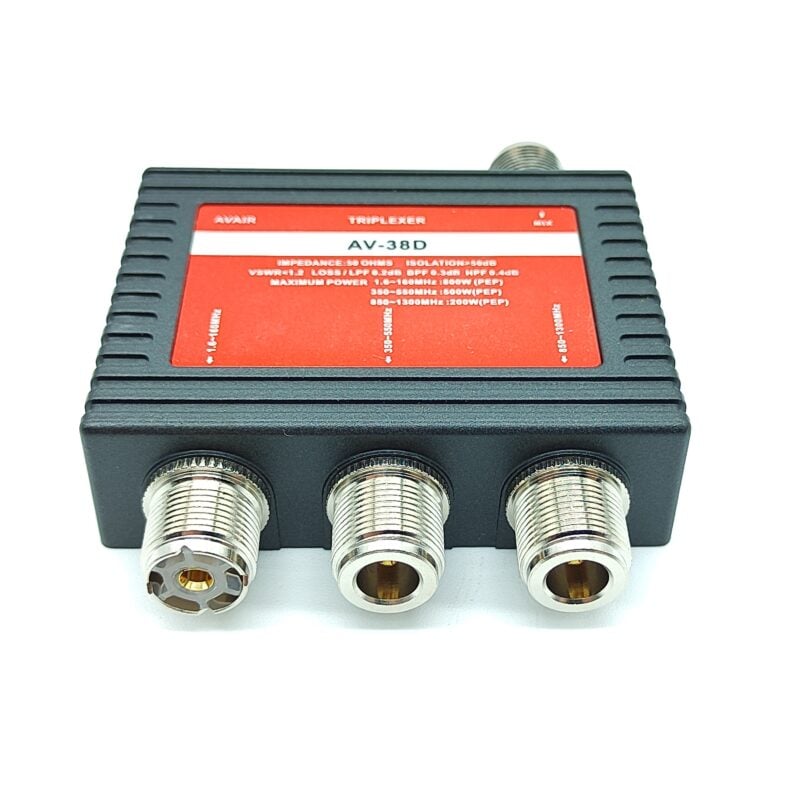

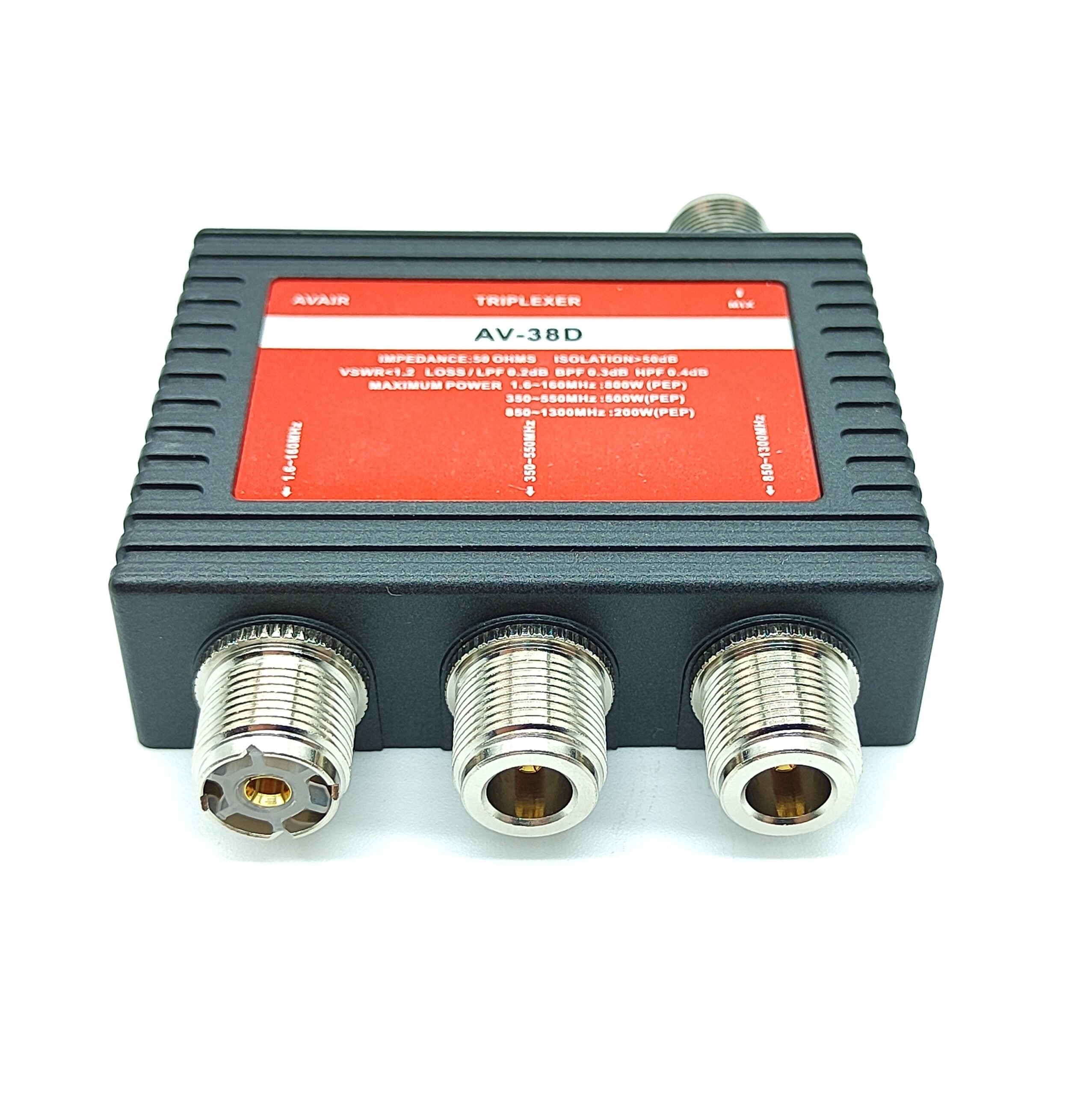

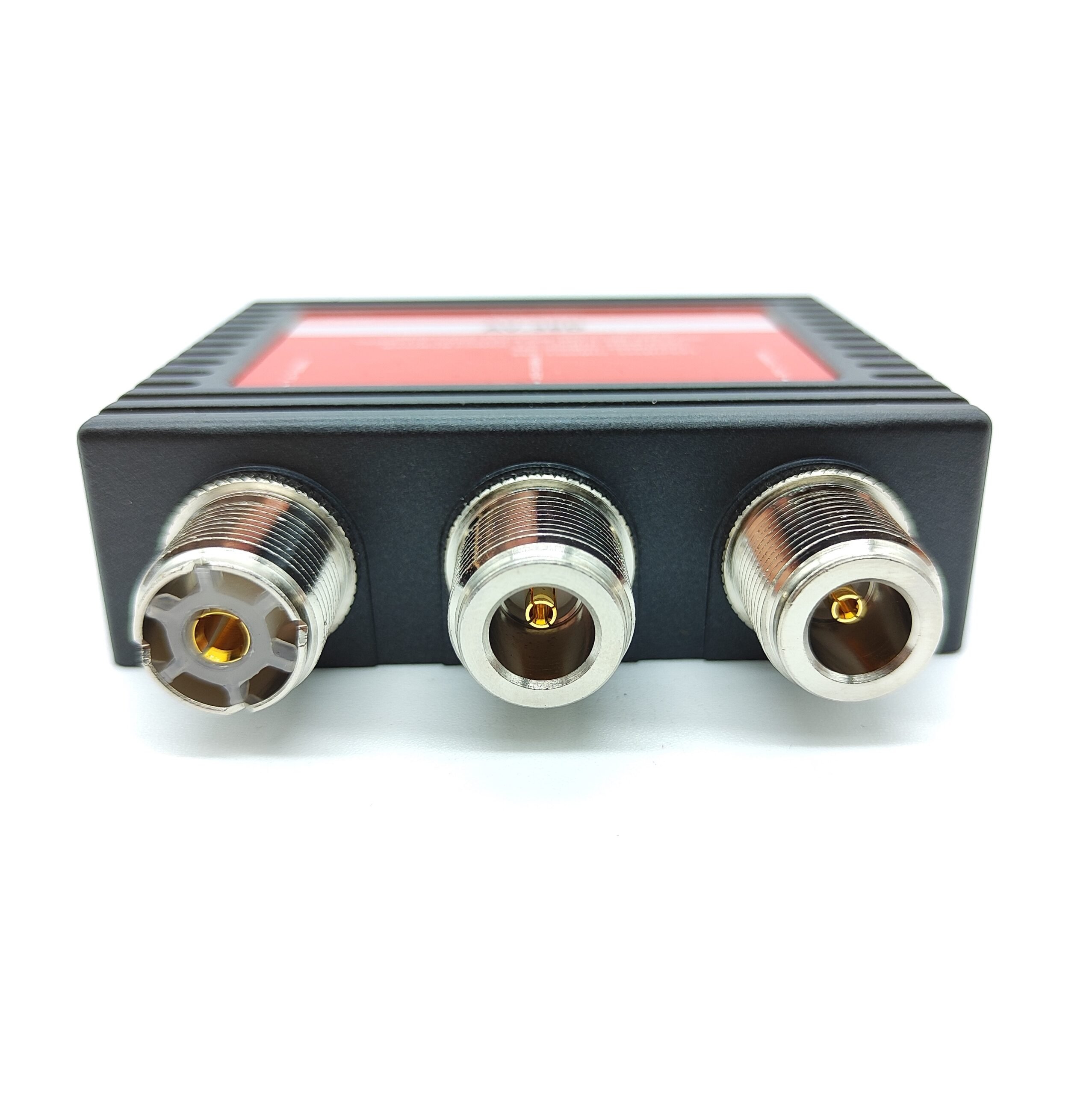

• Hardware RF Connector Configuration:

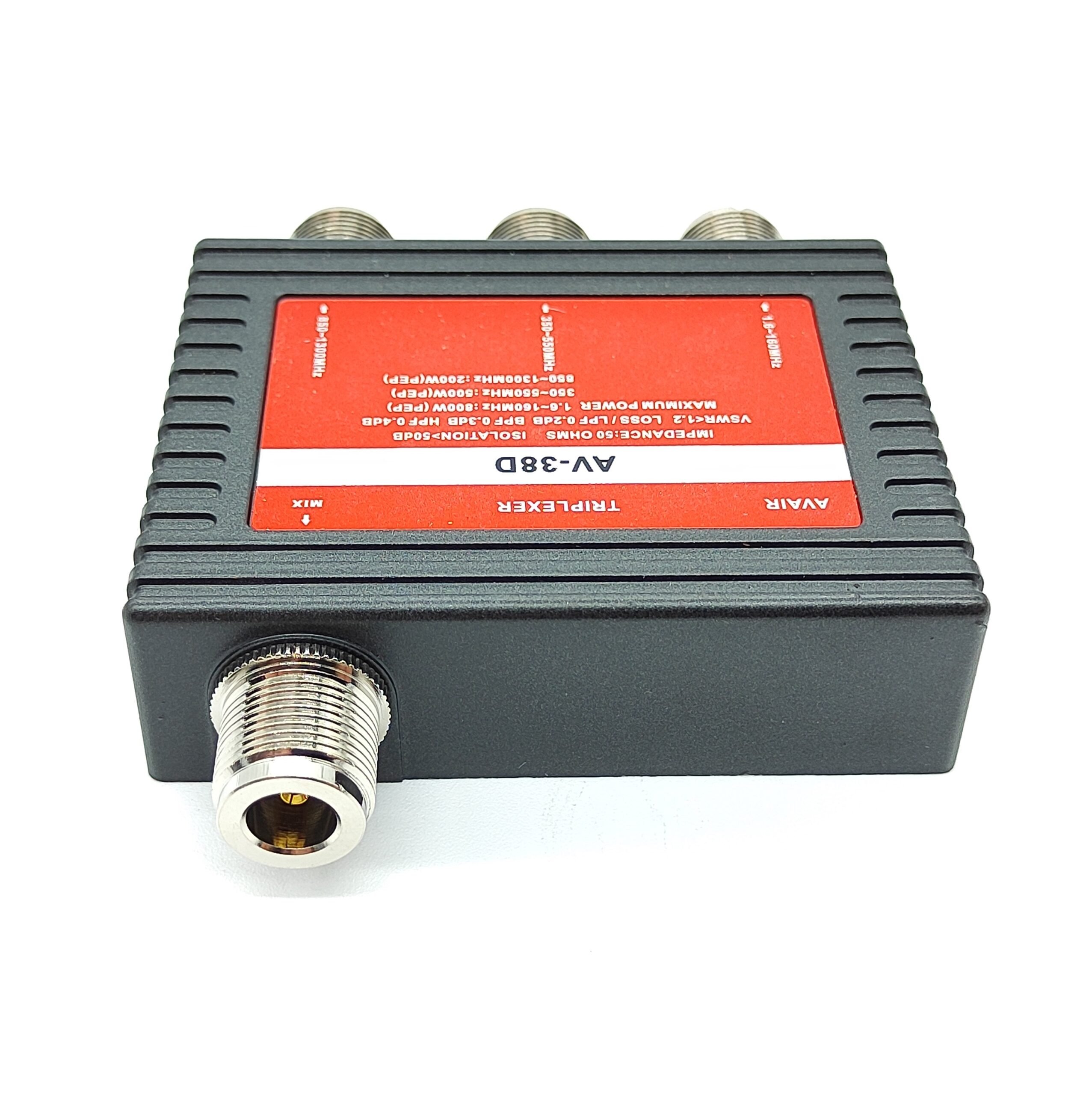

– Main Antenna Common Port: Precision N-Female Bulkhead Input
– LPF Port Output: Standard M-Type / PL-259 Female Socket
– BPF Port Output: High-Shielding N-Female Connector Socket
– HPF Port Output: High-Shielding N-Female Connector Socket
• Physical Housing Footprint: 86 x 27 x 64 mm rugged metallic shielding vault
• Net Component Weight: 300 grams
• Application: Perfect for combining HF/VHF base rigs, UHF repeaters, and SHF scanning infrastructure into a single mast antenna, optimizing tactical field deployment setups, streamlining industrial communications architecture, and maintaining high-volume component stock lines for specialized B2B retail distribution networks.
