Description

 Frequency range: VHF: 144-146MHz / UHF: 430-440MHz / Commercial FM Radio: 87.5-108MHz (ONLY RECEIPT)
· SELECTABLE RF power: 5 / 1W (VHF) 4 / 1W (UHF)
· Double reception of frequencies in display
· Operates on U-V, V-U, V-V and U-U
· Battery 7.4Vdc / 1300 mAh LI-ion
· Memory Channels: 200
· 12.5 / 25 KHz canalization
· Frequency breaks: 5 – 6.25 – 10 – 12.5 – 25 – 30 – 50 – 100 KHz
· DTMF
· CTCSS / DCS
· Clone function
· VOX function
· VFO
· Keyboard lock
· Locked channel block BCL
· Backlit display
· FM-Commercial Reception
· SOS emergency
· Battery charge level
· LED flashlight
· Alarm
· Frequency stability: 2.5ppm
· Antenna impedance: 50
· Audio Output: 1W / 10%
· Operating temperature: -20ºC to + 55ºC
· Dimensions: 113 x 62 x 35 mm
· Weight: 198gr, battery included
Included accessories:

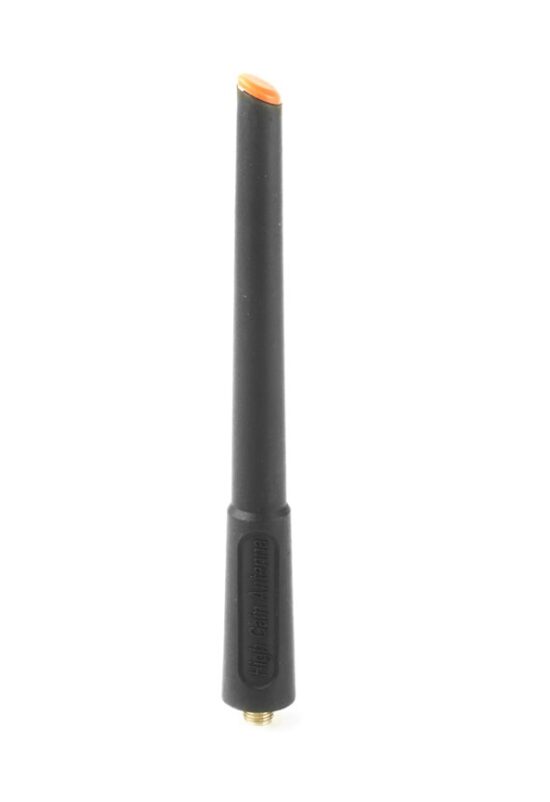

Antenna, charger, 220V network adapter. C.A., clip
Optional accessories:

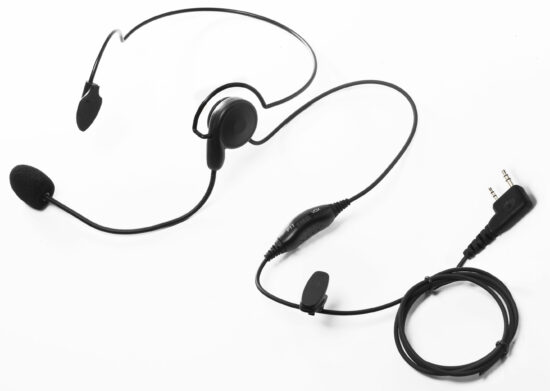

Holster mod FN-07 S, micro-headphone type JR1702 E / C, battery, antenna, charger and network adapter.
