Sirio Radiant VHF/UHF 1/4″ Radiating Antenna. Adjustable by cutting between 108 and 480 MHz.

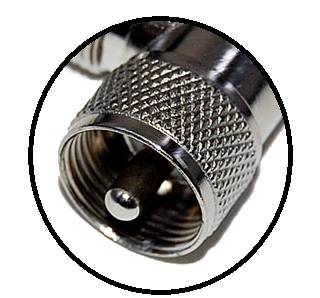

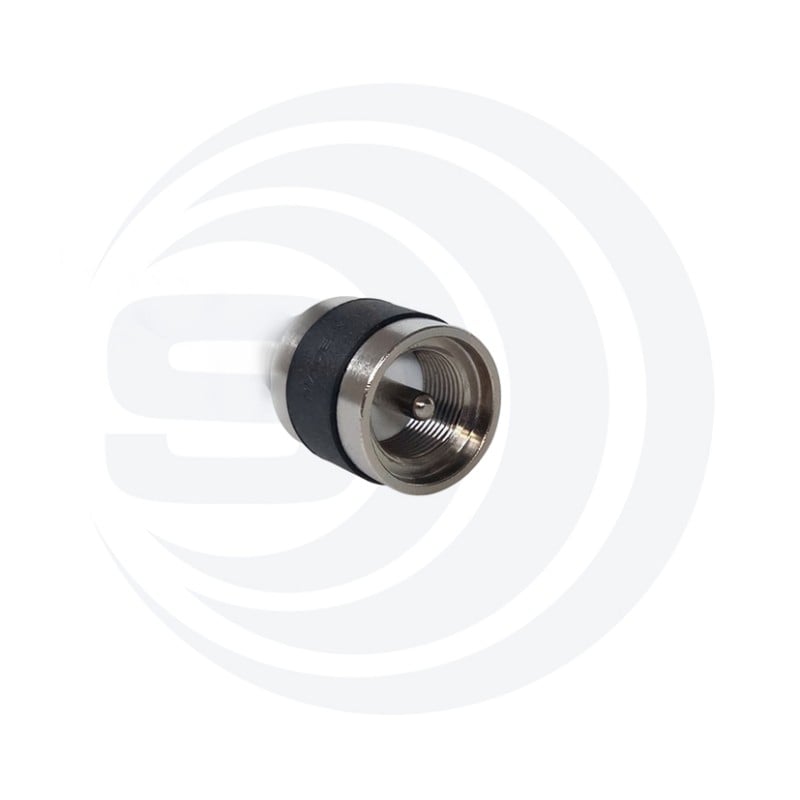

High-quality PL259 connector 2.5 mm diameter straight rod in 17/7 PH stainless steel, supplied without base and cable. Compatible with any PL (SO239) base. For UHF use, use a high-quality, low-loss SIRIO 500MHz base, PM-100PL, HPACU, etc.
Various models of magnetic bases and compatible accessories are available for mounting in any vehicle. The cutting table according to the operating frequency can be found in the enclosed manual. Replaces the MGA 108-550 PL model.
FEATURES
- Name: MGA 108-480 PL
- Part Number: 2431505.05
- Type: Mobile Antenna (PL)
- Radiation: Omnidirectional
- Polarization: Linear Vertical
- Impedance: 50 Ohms
- Ground Plane: Vehicle
- Bandwidth: > 5 MHz @ SWR < 2 (108 MHz)
- Frequency Range: 108 to 480 MHz – Adjustable by Cutting
- Compatible Systems: 2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Air Band, VHF Marine Band, AIS-162MHz, TETRA, PMR-VHF
- Gain Range: 0 Ref. lambda 1/4
- Applicable Power: 100W (CW)
- Connector: PL Male
- Color: Silver
- Body: Stainless Steel
- Materials: Chrome-Plated Brass and Stainless Steel
- Compatible Base Type: PL Female (SO239)
- Location/Installation: Magnetic Base / N-PL Base / NE-PL Base
- Dimensions L: 77.5 cm (108 MHz)
Applicable to Systems
- Aviation
- 2m-Ham
- ORBCOMM M2M
- Marine VHF
- AIS-162MHz
- ISM-169MHz
- PMR-VHF
- 1.25-Ham
- VHF-260MHz
- TETRA-350MHz
- TETRA-380-395MHz
- CDMA-450
- 70cm-Ham
- PMR-UHF
- LTE-450
- LoRa-433
